7-FRONT FORK COMPONENT
56
CHK
ADJ
NO. PART NO. PART NAME QTY CAUTION
1 1251100-102000 Non－standard bolt M6×16(304 stainless steel) 2
2 1251100-121093
Non－standard bolt M6×25 (environmental color)
2
3 1224100-010000 ZT250－S swell nail 2
4 1250205-031091 GB70.1M6×30(stainless steel) 1
5 1251100-061093 M6×22 Hex flang bolt thread level 8.8 (color zinc) 1
U1车型 U车型
U
U1
Head and headlights component

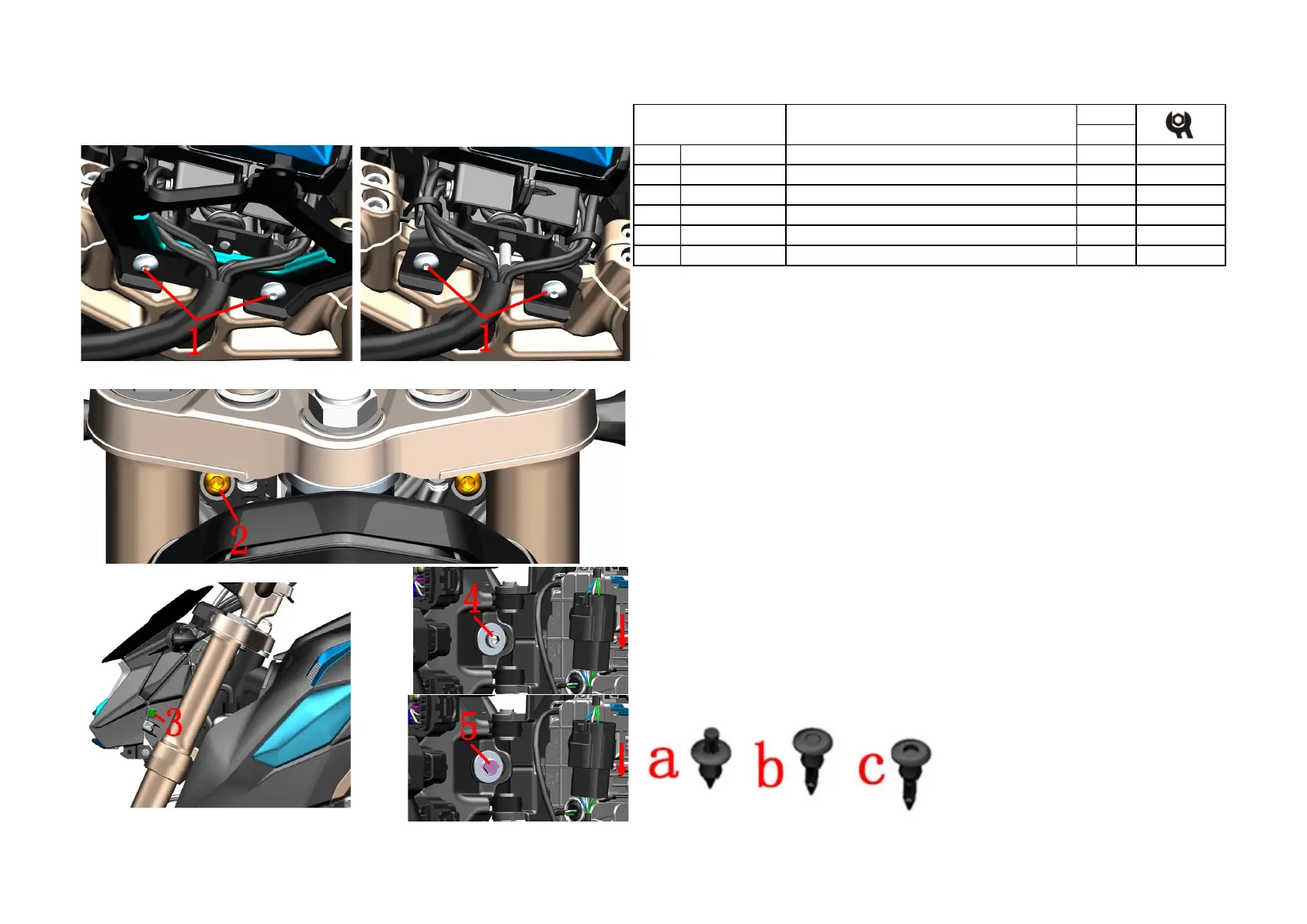

PROCEDURE:
●Head assembly
Using 4# inner hexagon socket remove 2pcs bolts⑴ on the bottom.
Using 6# inner hexagon socket remove 2pcs bolts⑵.
Using 4# inner hexagon socket to press down the center of the expansion pin⑶ and remove it.
Grasp the two turn signals and turn the head assembly forward.
Unplug the headlights, position lights, and turn signals. Use 5# hex socket to remove bolt ⑷ for U model, and
8#
sleeve for U1 model to remove bolt ⑸.
After confirming that all the plugs are unplugged, remove the headlight assembly.
CAUTION:
●Pay attention to the force when removing the cable and unplugging the plug and the cable to avoid damage.
●The head unit should be supported during the disassembly process and protective measures should be taken
toprevent scratching the lamp cover or paint surface.
●You can watch the detailed operation in "KIDEN official website assembly video-KD150-U1, U headlight
disassembly and assembly instruction video".
●When reinstalling, pay attention not to insert the wrong wire color of the light.
●Figure a is the unmounted state; Figure b is the assembled state; Figure c is the disassembled state.
Fig.13 FRONT FORK
COMPONENT
