4-REAR WHELL COMPONENT
24
CHK
ADJ
NO. PART NO.
1 1174100-002000 ZT250－S rear reflector 1
2 1221200-051000
KD150－U rear fender plate
1
3 1244100-006000 ZT250－S rear liceness rubber buffer 1
4 1221200-115000 KD150－G1 turn light decorative cover (set) 2
5 1181200-103000
－
U auxiliary mud plate transfer line
（
）
6 1171200-057000
KD150－U license plate light
1
7 1251300-063093 Plywood M6×11×15(color zinc) 2
8 1170300-064000 HJ125－K front right turn signal light 1
9 1221200-053000
KD150－U rear turn signal bracket
1
10 1170300-063000 HJ125－K front left turn signal light 1

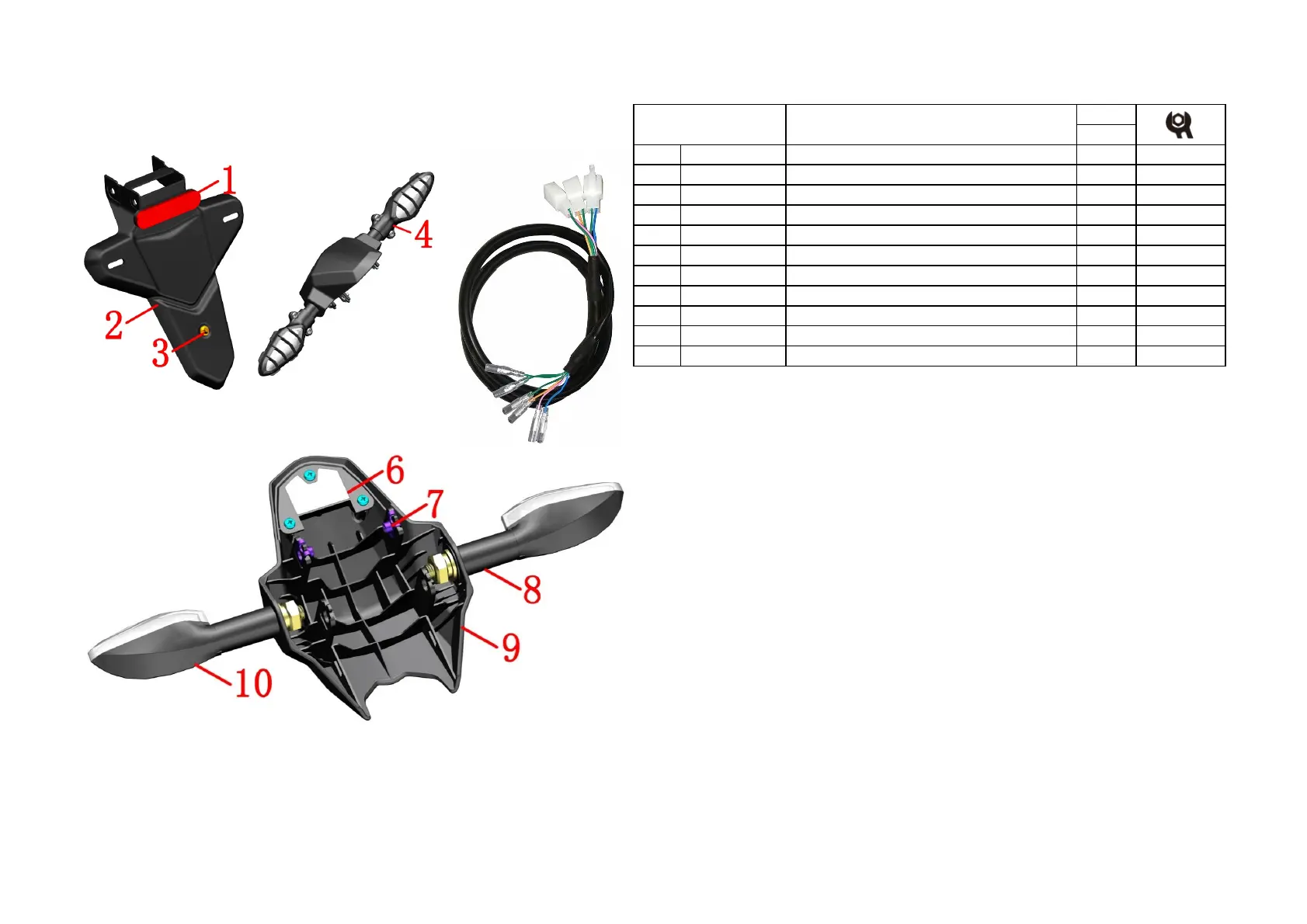

Fig.5 REAR WHELL
COMPONENT
U1 rear mud board component 2
PROCEDURE:
●Rear fender
Remove the nuts and washers that come with the rear reflector (1) and then remove the reflector. Remove the
license plate buffer glue ⑶ from the rear fender ⑵.
●Turn signal light decorative cover
Remove the bolts that come with the turn signal decorative cover kit ⑷ to separate the front and rear covers.
●Turn signal light assembly
Unplug all the connectors of the turn signal and the license plate light and remove the auxiliary fender adapter
cable ⑸.
Remove the 2 pieces of nuts ⑺ from the turn signal bracket ⑼.
Remove the 3 screws that come with the license plate light, and then remove the license plate light ⑹.
Grasp the left (right) turn signal and use a 17# open-end wrench to remove the nut that comes with the turn
signal, remove the spring washer and gasket that comes with it, and then remove the turn signal.
CAUTION:
●Do not pull the cable hard when removing the sub-mud switch.
●When reassembling, check if there is any pressure on the wire to prevent it from tightening.Short circuit
caused by bolts. Pay attention to the lamp connector, do not insert the wrong, turn left
Green + orange; right turn signal is green + blue; license plate light is green + pink.
●When assembling self-tapping screws come with the license plate light, it must be perpendicular to mounting
surface, otherwise it will bedamaged,and the torque should not be too large.
