3.3.10. Inspection, information labels
1393HAC026876-001 Revision: C
© Copyright 2006-2008 ABB. All rights reserved.
3.3.10. Inspection, information labels
Location of labels

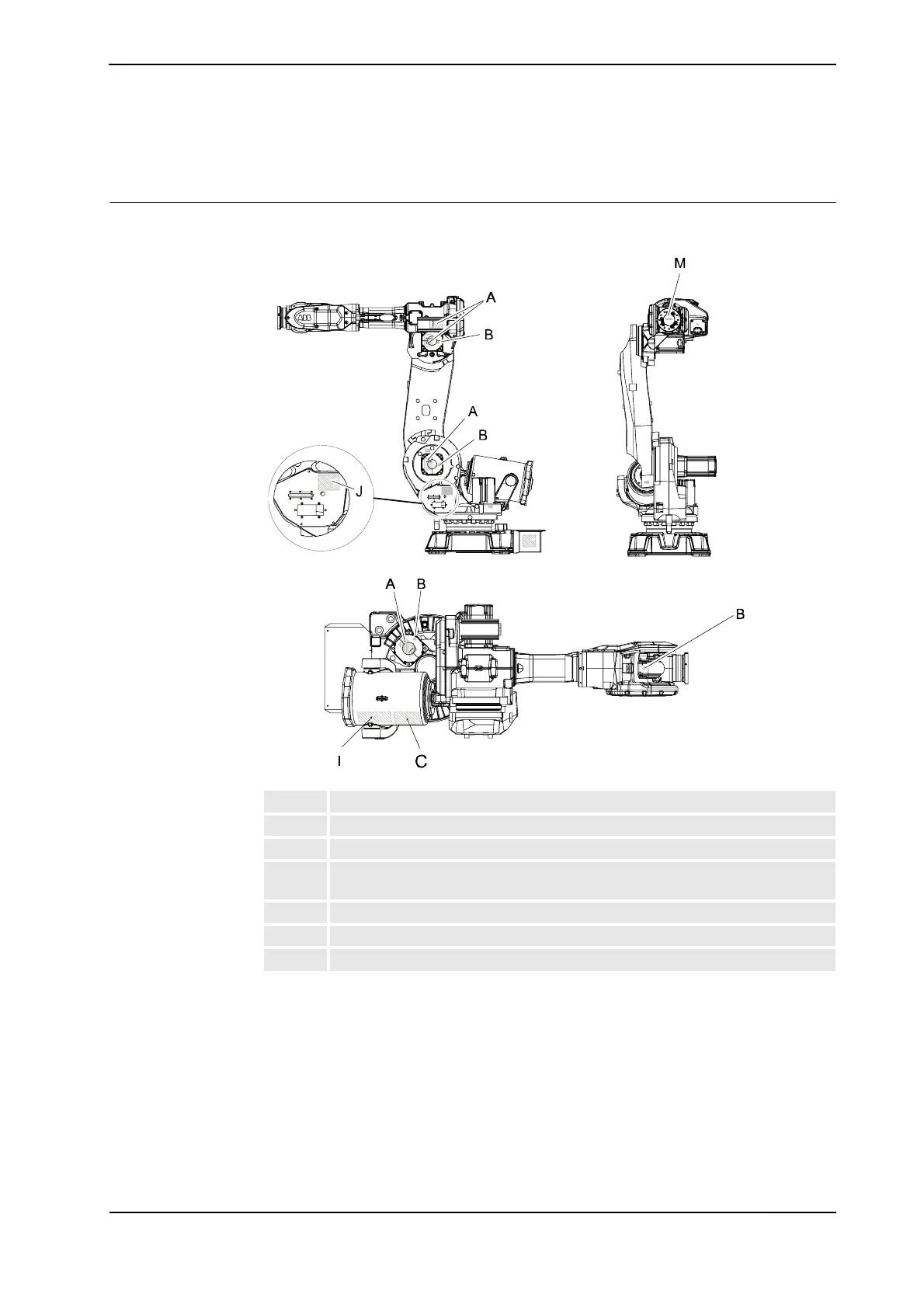

The figures below show the location of the information labels to be inspected.
xx0600003457
A Warning label "High temperature", 3HAC4431-1 (4 pcs)
B Warning sign, symbol of flash (located on motor cover), 3HAC1589-1 (5 pcs)
C Instruction label "Safety instruction", 3HAC4591-1
I Warning label, tools are not allowed around the balancing device during operation,
3HAC020611-001
J Warning label "Shut off power", 3HAC17804-1
M Serial no. from rating label
- Information labels about type of oil, at gearboxes and at robot base
