3.4.4. Oil change, gearbox, axis 3
3HAC026876-001 Revision: C160
© Copyright 2006-2008 ABB. All rights reserved.
3.4.4. Oil change, gearbox, axis 3
Location of gearbox

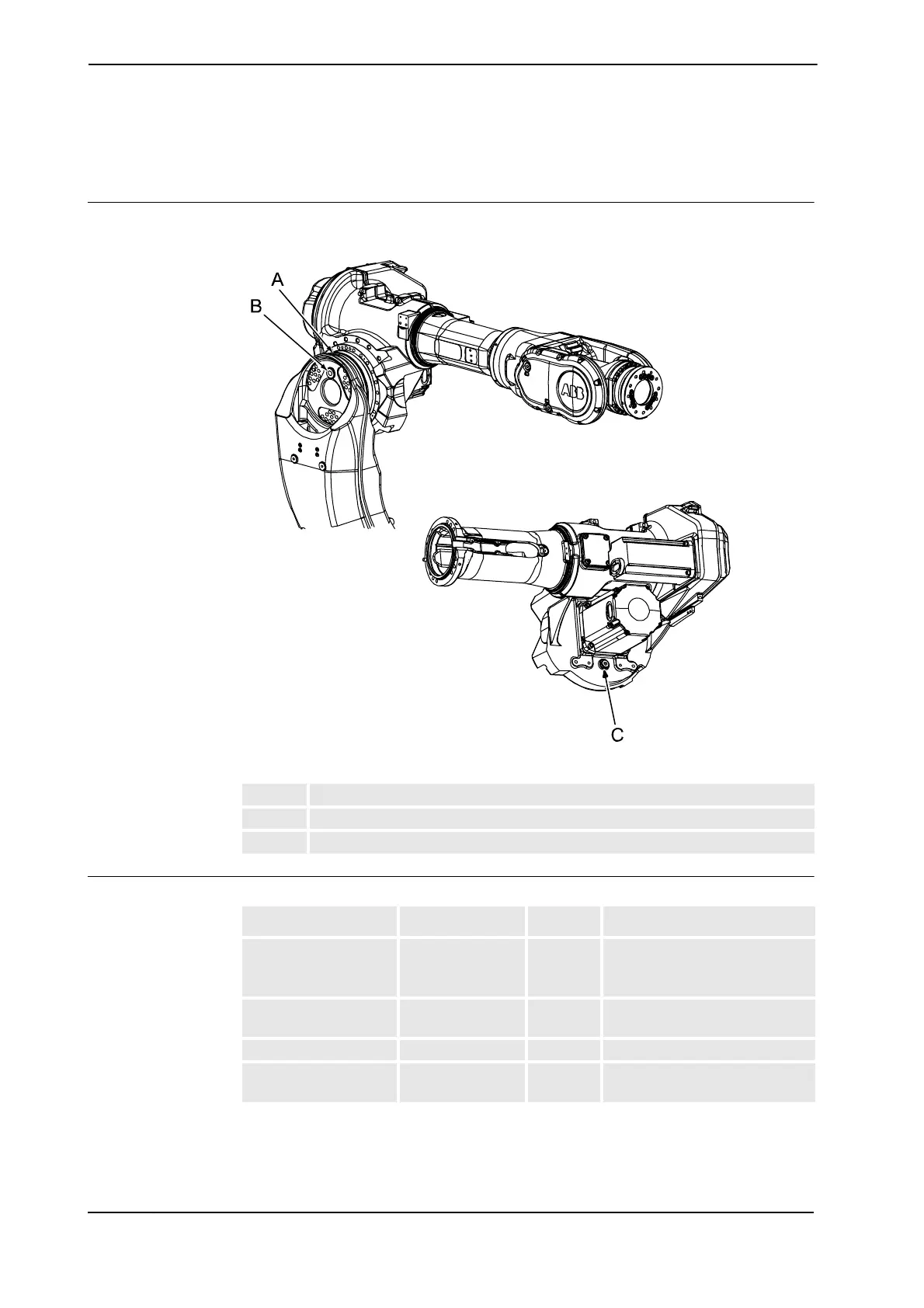

The axis 3 gearbox is located in the upper arm rotational center as shown in the figure below.
xx0200000230
Required equipment
A Gearbox axis 3
B Oil plug, filling
C Oil plug, draining
Equipment, etc. Art. no. Amount Note
Lubricating oil 3HAC032140-001 2,500 ml Kyodo Yushi TMO 150
Note! Do not mix with other oil
types!
Oil exchange
equipment
3HAC021745-001 The content is defined in section
Special tools on page 395.
Oil collecting vessel - Capacity: 3,000 ml.
Standard toolkit - The content is defined in section
Standard toolkit on page 394.
