3 Maintenance
3.3.14. Inspection, signal lamp (option)
3HAC026876-001 Revision: C148
© Copyright 2006-2008 ABB. All rights reserved.
3.3.14. Inspection, signal lamp (option)

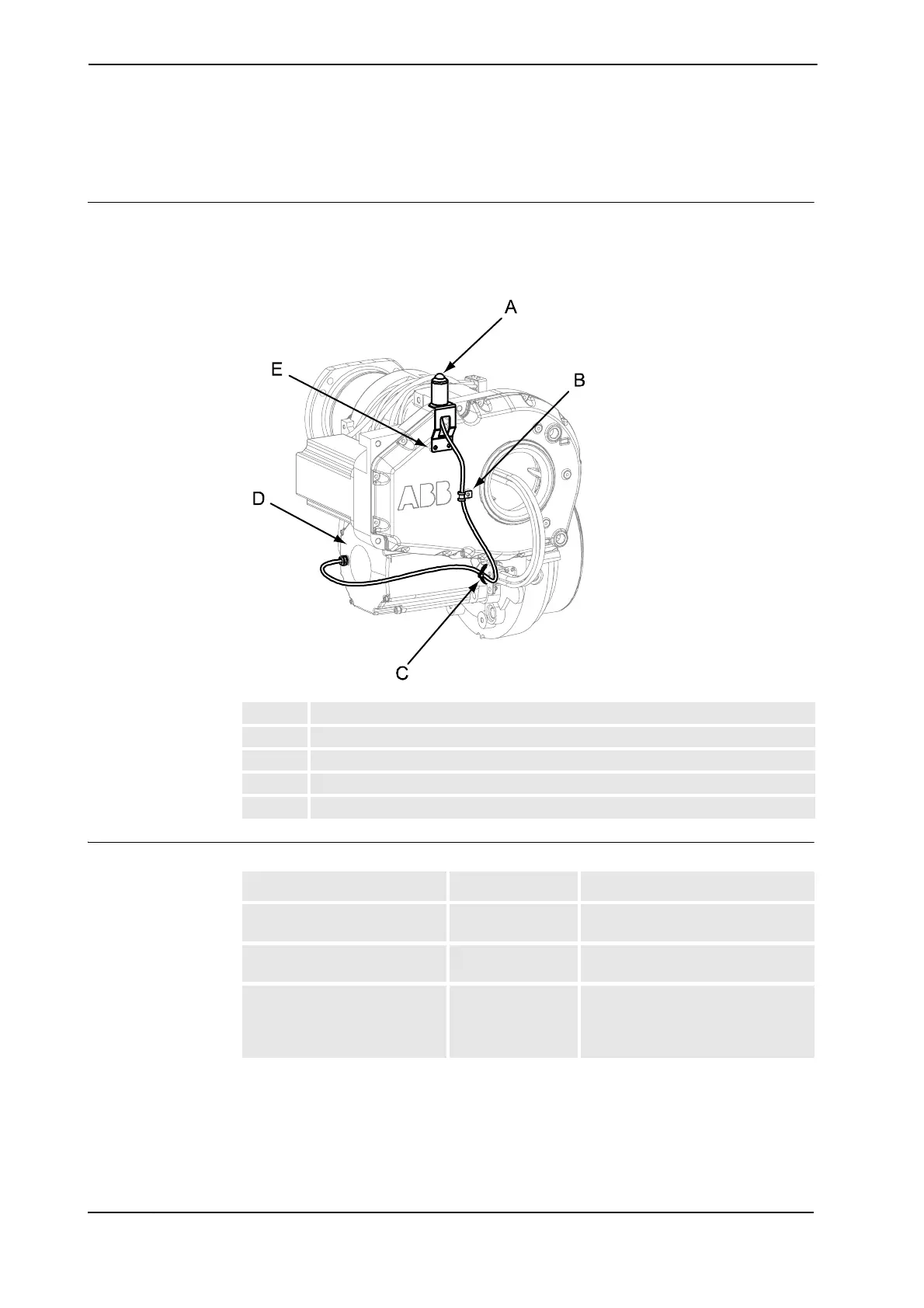

Location of signal lamp
The signal lamp is located as shown in the figure below. Note that the position can differ
depending on how the customer harness for axis 4-6 is mounted. See assembly drawing on
the current harness for alternative positioning.
xx0600003071
Required equipment
A UL signal lamp
B Clamp
C Cable strap, outdoor
D Motor, axis 3
E Attachment screw, M6x8 quality 8-A2F(2 pcs)
Equipment, etc. Art. no. Note
Signal lamp 3HAC10830-1 To be replaced in case of detected
damage.
Standard toolkit - The content is defined in section
Standard toolkit on page 394.
Other tools and procedures may
be required. See references to
these procedures in the step-by-
step instructions below.
These procedures include
references to the tools required.
Continues on next page
