3 Maintenance
3.4.7. Oil change, gearbox axis 6
1693HAC026876-001 Revision: C
© Copyright 2006-2008 ABB. All rights reserved.
3.4.7. Oil change, gearbox axis 6
Location of gearbox

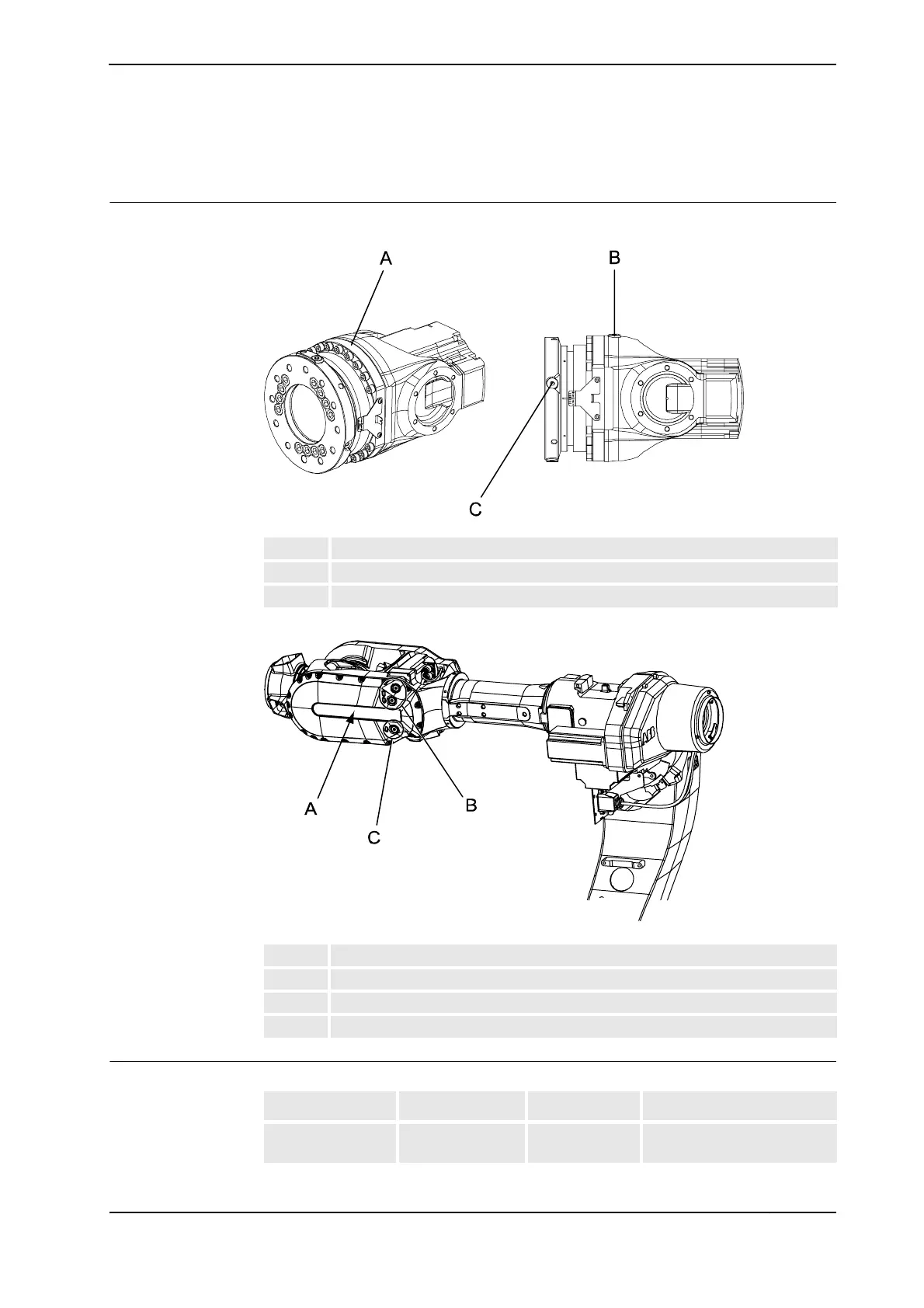

The axis 6 gearbox is located in the center of the wrist unit as shown in the figure below.
xx0400001092
xx0500002017
Required equipment
A Gearbox, axis 6
B Oil plug, filling
C Oil plug, draining
- The figure above shows the wrist unit of IRB 6640ID
A Gearbox, axis 6
B Oil plug, draining
C Oil plug, filling
Equipment, etc. Art. no. Amount Note
Lubricating oilIRB
6640ID
11712016-604 6,000 ml Mobilgear 600 XP 320
Continues on next page
