ABB IRB 6640 - 130/3.2 User Manual

4 Repair
4.3.3. Replacement of cable harness, Cleanroom
2073HAC026876-001 Revision: C
© Copyright 2006-2008 ABB. All rights reserved.
4.3.3. Replacement of cable harness, Cleanroom
General
This section details how to replace the cable harness, Cleanroom.
Fitting of cable attachments is detailed in section Fitting cable package attachments
(Cleanroom).
Location of cable harness, Cleanroom

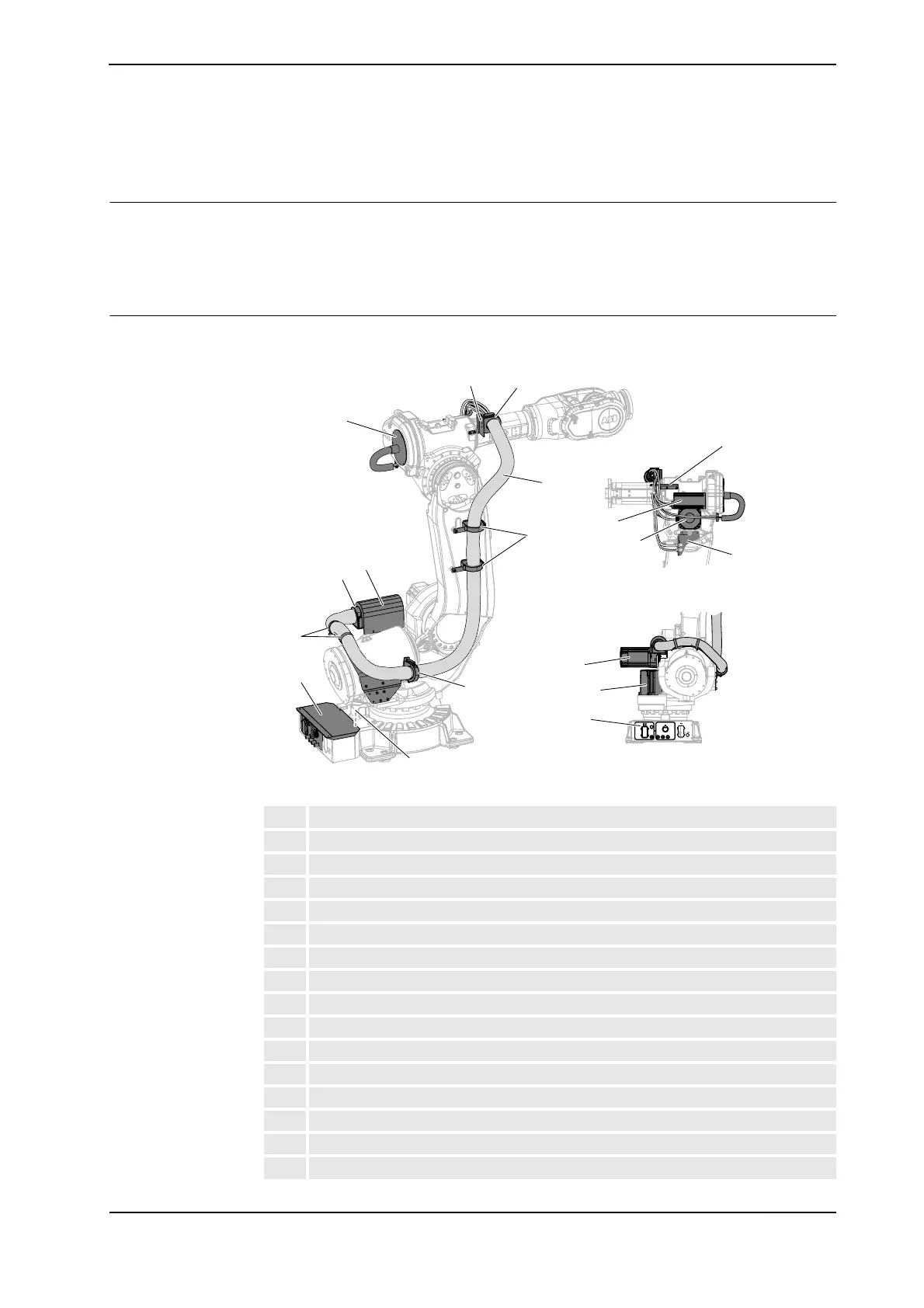

The illustration below shows the location of the cable harness, Cleanroom.
xx0800000054
A Earth (placed under rear cover plate)
B Rear cover plate
C Velcro straps
D Gripping clamp, shelf
E Cover, shelf
F Cover, armhouse
G Bracket for metal clamp
H Gripping clamp, armhouse
J Cable harness, Cleanroom
K Gripping clamps, lower arm
L Gripping clamp, lower bracket
M Cable guide
N Connection plate, axis 3
O Motor axis 3
P Motor axis 4
R Motor axis 2
K
L
A
B
C
D
E
F
G
H
J
M
N
O
P
R
S
T
Continues on next page
