100 Start-up
Commissioning Wizard
Each type of motor and drive combination has different performance characteristics.
Before the MicroFlex e150 can be used to control the motor accurately, the
MicroFlex e150 must be ‘tuned'. Tuning is the process where the MicroFlex e150
powers the motor in a series of tests. By monitoring the drive's output and the
feedback from the motor's encoder, the MicroFlex e150 can make small adjustments
to the way it controls the motor. This information is stored in the MicroFlex e150 and
can be uploaded to a file if necessary.
The Commissioning Wizard provides a simple way to tune the MicroFlex e150 and
create the necessary configuration information for your drive/motor combination, so
this is the first tool that should be used. If necessary, any of the parameters set by the
Commissioning Wizard can be adjusted manually after commissioning is complete.

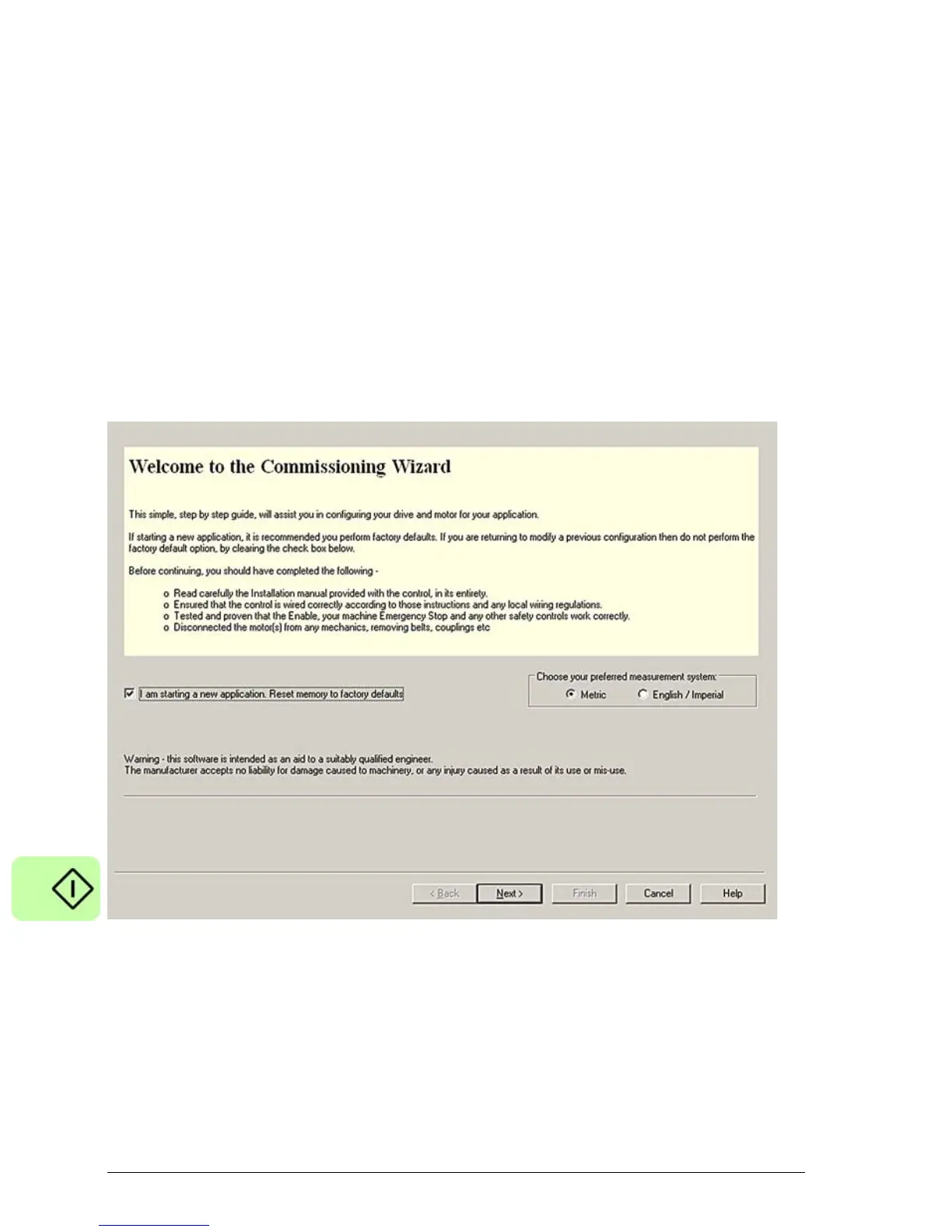

Using the Commissioning Wizard
Each screen of the Commissioning Wizard requires you to enter information about
the motor, drive or application. Read each screen carefully and enter the required
information. When you have completed a screen, click Next > to display the next
screen. If you need to change something on a previous screen, click the < Back
button. The Commissioning Wizard remembers information that you have entered so
you will not need to re-enter everything if you go back to previous screens. If you
need extra help, click Help or press F1.
