128 Technical data

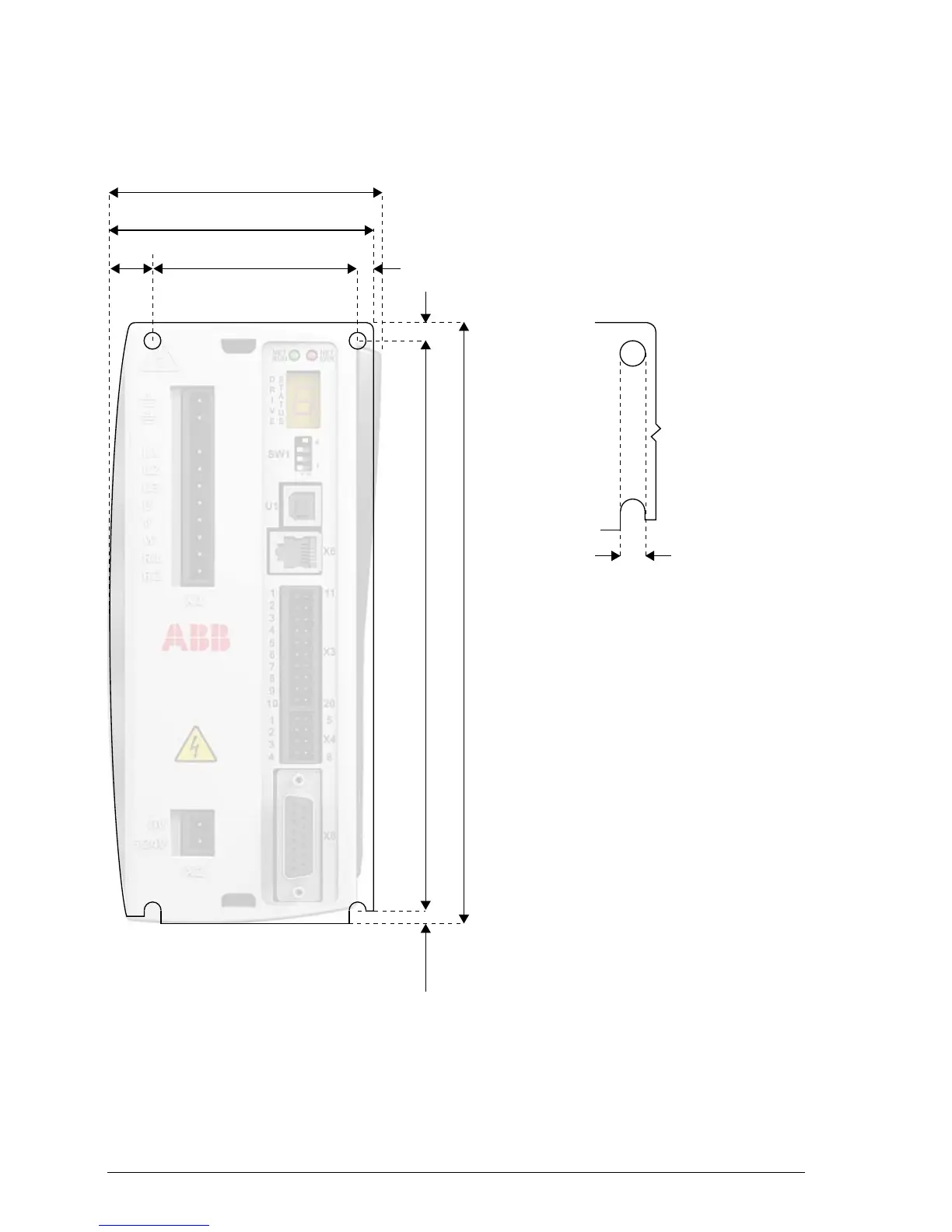

Dimension drawing (all models)
6
63.4
(2.5)
79.5
(3.13)
82
(3.23)
11
(0.4)
5
(0.2)
6
(0.24)
167.3
(6.59)
6
(0.24)
180
(7.1)
Dimensions shown as:
mm
(inches)
Depth:
157
mm
(6.2
in)
Weight:
3
A: 1.45
(3.2
lb)
6
A: 1.50
kg (3.3
lb)
9 A: 1.55
kg (3.4
lb)
