166 Accessories
EMC filters
AC filters remove high frequency noise from the AC power supply, protecting the
MicroFlex e150. These filters also prevent high frequency signals from being
transmitted back onto the power lines and help meet EMC requirements. To select
the correct filter, see Power supply filters on page 138
.

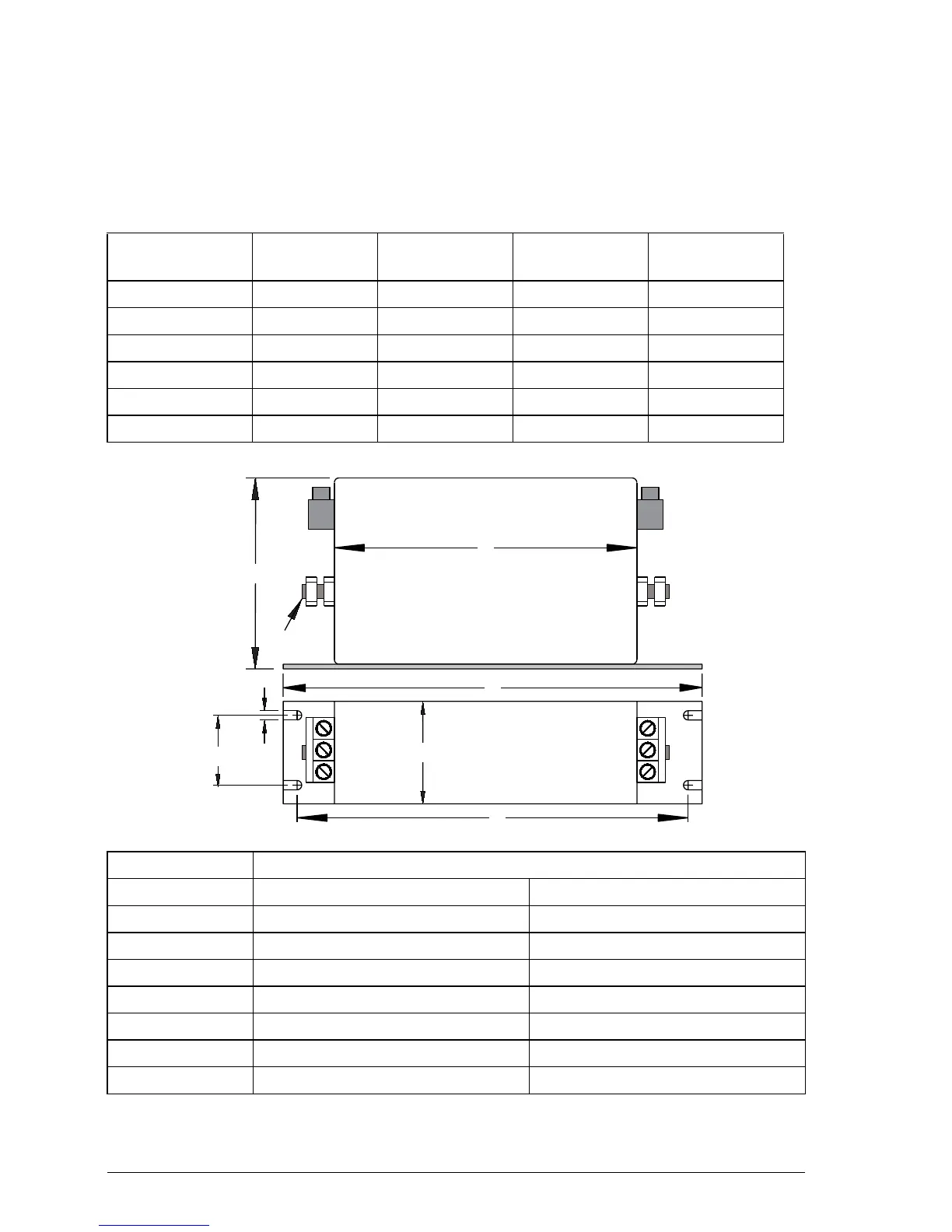

Filter dimensions, types FI0018A00 and FI0018A03:
Part Rated volts Rated amps @
40°C
Leakage
current (mA)
Weight kg (lbs)
FI0014A00 250 3 0.4 0.27 (0.6)
FI0015A00 250 6 0.4 0.45 (0.99)
FI0015A02 250 12 0.4 0.73 (1.61)
FI0018A00 480 7 33 0.5 (1.1)
FI0018A03 480 16 33 0.8 (1.76)
FI0029A00 250 22 33 3.0 (6.6)
Dimensions: mm (inches)
Dimension FI0018A00 FI0018A03
A 190 (7.48) 250 (9.84)
B 160 (6.30) 220 (8.66)
C 180 (7.09) 235 (9.25)
D 20 (0.79) 25 (0.98)
E 4.5 (0.18) 5.4 (0.21)
F 71 (2.80) 70 (2.76)
G 40 (1.57) 45 (1.77)
