ABB MicroFlex e150 User Manual

164 Accessories

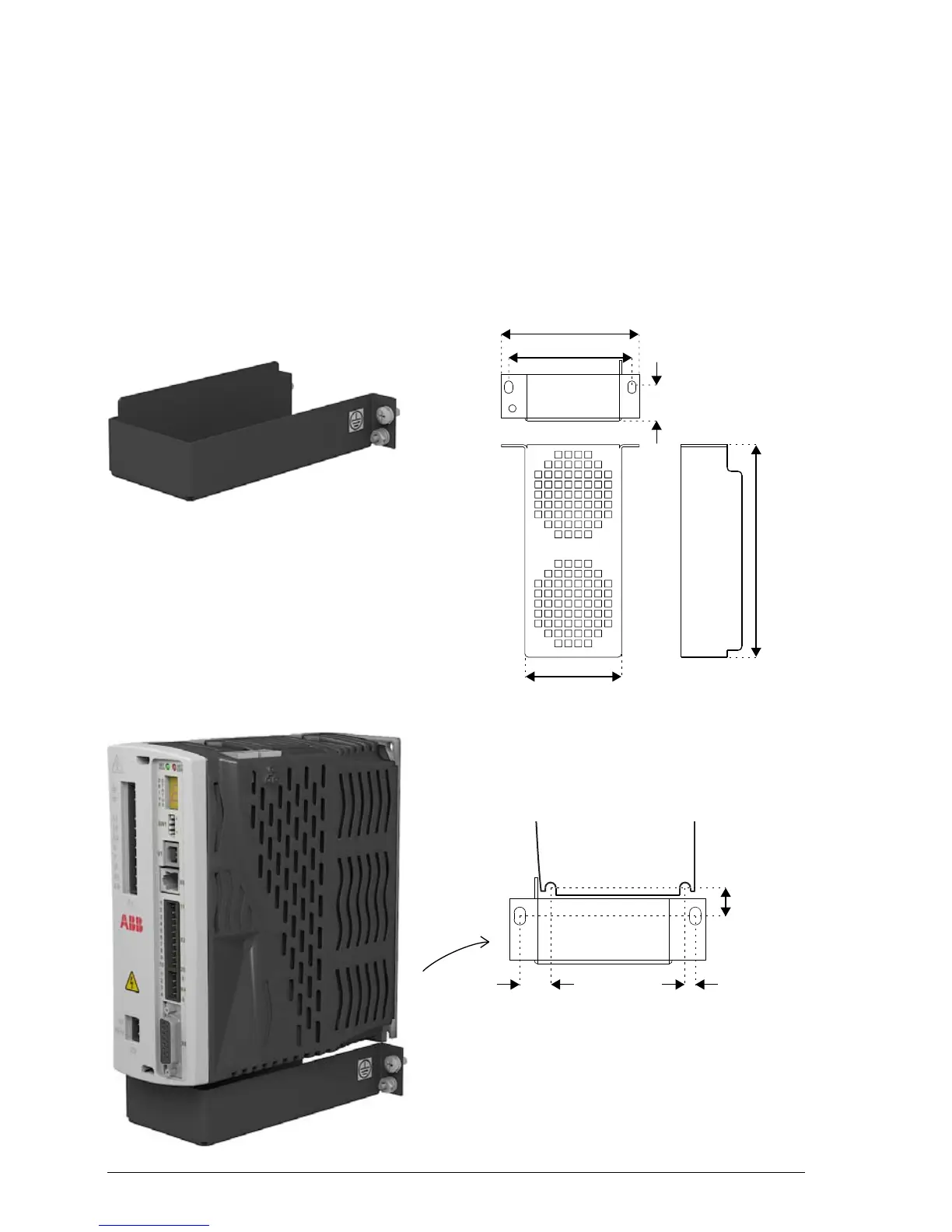

 Fan tray
The fan tray (part FAN001-024) provides sufficient cooling for the 6 A and 9 A
MicroFlex e150. The fan tray might be required for the 3 A model when operating in
high ambient temperatures (see Temperature derating on page 132). The fan tray
requires 23 - 27.5 V DC at 325 mA, which can be sourced from the same filtered
control circuit supply used for the MicroFlex e150. The MicroFlex e150 is UL Listed
(file NMMS.E128059) when used in conjunction with the fan tray, mounted exactly as
shown in the following diagram.
94 (3.7)
21.5
(0.85)
142.5 (5.6)
17.3
(0.68)
16
(0.63)
4.5
(0.18)
84 (3.3)
66 (2.6)
Fan tray
dimensions
Fan tray
FAN001-024
Assembled MicroFlex e150 and fan tray
Position of fan tray mounting holes relative to
MicroFlex e150
Bottom of
MicroFlex e150
Fan tray
It is important that the fan tray is mounted in
close proximity to the MicroFlex e150 as
shown above. Failure to do so will result in
decreased cooling efficiency.
All dimensions shown as mm (inches)
