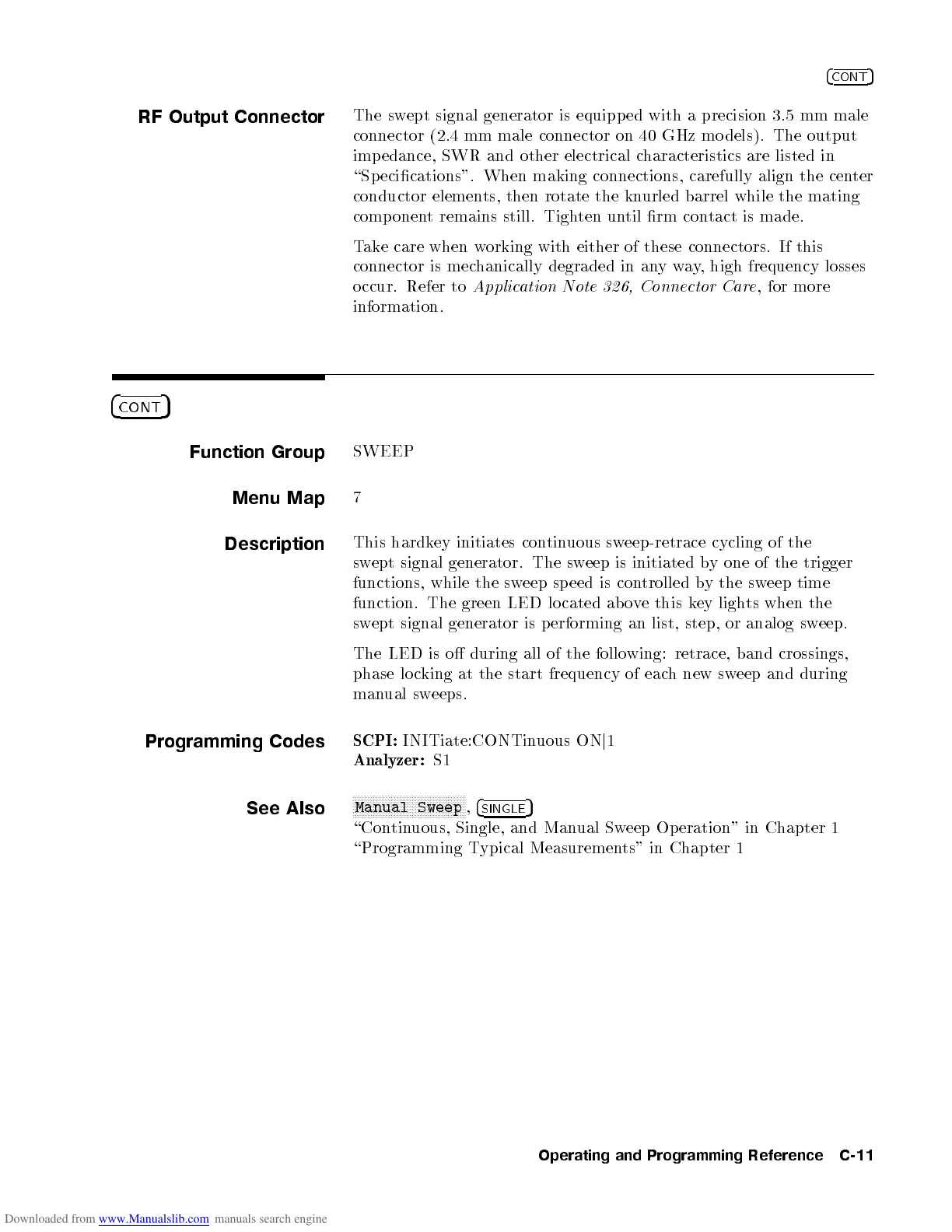

4
CONT
5
RF Output Connector
The swept signal generator is equipped with a precision 3.5 mm male
connector (2.4 mm male connector on 40 GHz mo dels). The output
imp edance, SWR and other electrical characteristics are listed in
\Specications". When making connections, carefully align the center
conductor elements, then rotate the knurled barrel while the mating
component remains still. Tighten until rm contact is made.
Take care when working with either of these connectors. If this
connector is mechanically degraded in anyway, high frequency losses
o ccur. Refer to
Application Note 326, Connector Care
, for more
information.
4
CONT
5
Function Group
SWEEP
Menu Map
7
Description
This hardkey initiates continuous sweep-retrace cycling of the
swept signal generator. The sweep is initiated by one of the trigger
functions, while the sweep sp eed is controlled by the sweep time
function. The green LED lo cated above this key lights when the
swept signal generator is p erforming an list, step, or analog sw
eep.
The LED is o during all of the following: retrace, band crossings,
phase lo cking at the start frequency of each new sweep and during
manual sweeps.
Programming Codes
SCPI:
INITiate:CONTinuous ON
j
1
Analyzer:
S1
See Also
NNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNN
Manual Sweep
,
4
SINGLE
5
\Continuous, Single, and Manual Sweep Operation" in Chapter 1
\Programming Typical Measurements" in Chapter 1
Operating and Programming Reference C-11
