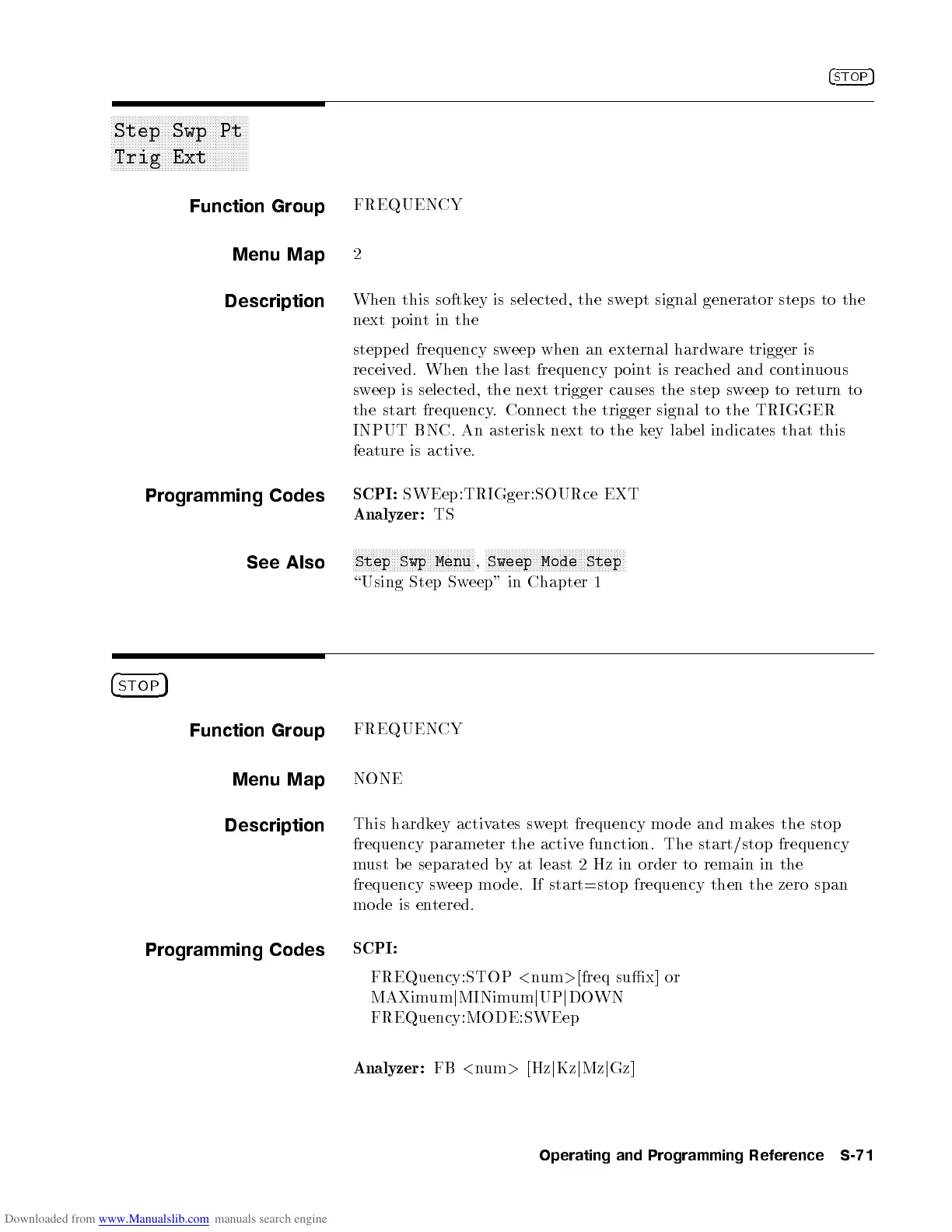

Step Swp Pt
Trig Ext
Function Group
FREQUENCY
Menu Map
2
Description
When this softkey is selected, the swept signal generator steps to the
next point in the
stepped frequency sweep when an external hardware trigger is
received. When the last frequency p oint is reached and continuous
sweep is selected, the next trigger causes the step sweep to return to
the start frequency. Connect the trigger signal to the TRIGGER
INPUT BNC. An asterisk next to the key lab el indicates that this
feature is active.
Programming Codes
SCPI: SWEep:TRIGger:SOURce EXT
Analyzer: TS
See Also
NNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNN
Step Swp Menu ,
NNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNN
Sweep Mode Step
\Using Step Sweep" in Chapter 1
4
STOP
5
Function Group
FREQUENCY
Menu Map
NONE
Description
This hardkey activates swept frequency mo de and makes the stop
frequency parameter the active function. The start/stop frequency
must be separated by at least 2 Hz in order to remain in the
frequency sweep mo de. If start=stop frequency then the zero span
mo de is entered.
Programming Codes
SCPI:
FREQuency:STOP < num > [freq sux] or
MAXimum j MINimum j UP j DOWN
FREQuency:MODE:SWEep
Analyzer: FB < num > [Hz j Kz j Mz j Gz]
Operating and Programming Reference S-71
