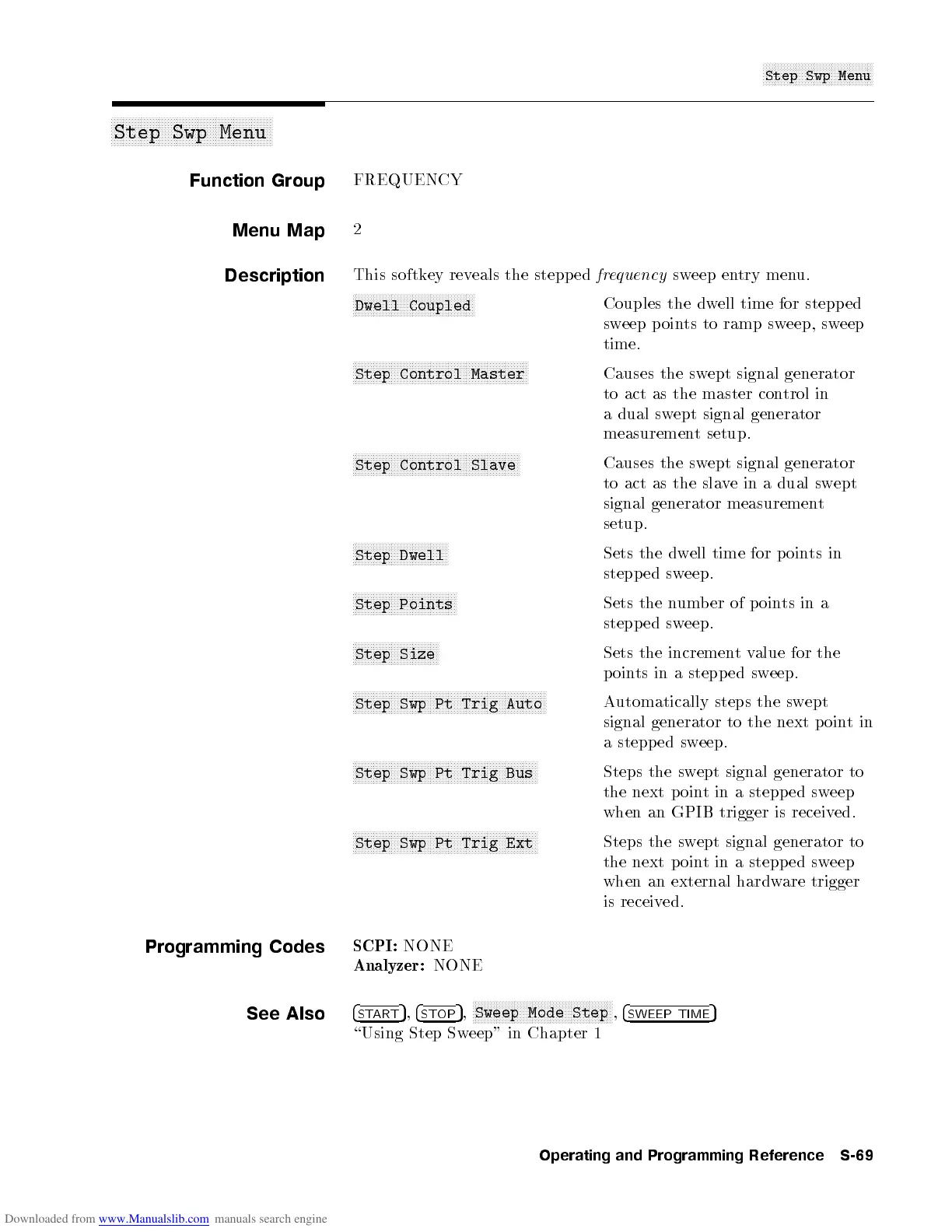

Step Swp Menu
aaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaa
Step Swp Menu
Function Group
FREQUENCY
Menu Map
2
Description
This softkey reveals the stepped frequency sweep entry menu.
NNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNN
Dwell Coupled
Couples the dwell time for stepp ed
sweep p oints to ramp sweep, sweep
time.
NNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNN
Step Control Master Causes the swept signal generator
to act as the master control in
a dual swept signal generator
measurement setup.
NNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNN
Step Control Slave
Causes the swept signal generator
to act as the slave in a dual swept
signal generator measurement
setup.
NNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNN
Step Dwell
Sets the dwell time for p oints in
stepped sweep.
NNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNN
Step Points
Sets the numb er of p oints in a
stepped sweep.
NNNNNNNNNNNNNNNNNNNNNNNNNNNNN
Step Size
Sets the incrementvalue for the
points in a stepped sweep.
NNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNN
Step Swp Pt Trig Auto
Automatically steps the swept
signal generator to the next p ointin
a stepp ed sweep.
NNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNN
Step Swp Pt Trig Bus
Steps the swept signal generator to
the next p oint in a stepp ed sweep
when an GPIB trigger is received.
NNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNN
Step Swp Pt Trig Ext
Steps the swept signal generator to
the next p oint in a stepp ed sweep
when an external hardware trigger
is received.
Programming Codes
SCPI: NONE
Analyzer: NONE
See Also
4
START
5 , 4
STOP
5 ,
NNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNN
Sweep Mode Step , 4
SWEEP TIME
5
\Using Step Sweep" in Chapter 1
Operating and Programming Reference S-69
