130 Rockwell Automation Publication 1783-UM003G-EN-P - December 2012
Chapter 4 Manage the Switch via RSLogix 5000 Software

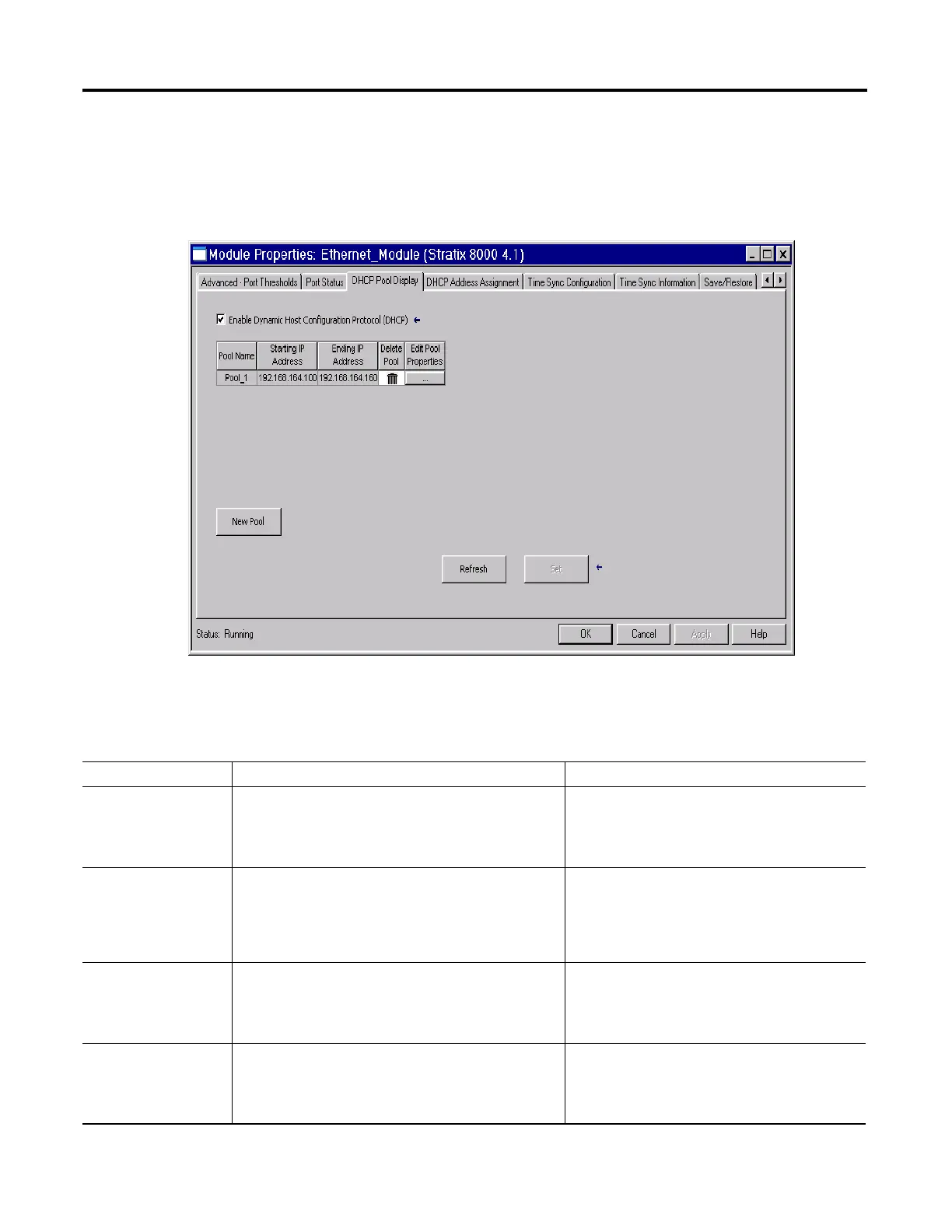

DHCP Pool Display
Overview
Use the DHCP Pool Display tab to view the DHCP address pool information for
the switch. From 0…15 pools can be displayed. This information is gathered
directly from the switch. Each row represents a single instance and instance values
may not be consecutive.
The information on this tab is not displayed if you are offline.
DHCP Pool
In this field Values are Comments
Enable Dynamic Host
Configuration Protocol
(DHCP)
• Checked
• Unchecked
Enables or disables pools. If selected, all controls on the
grid are set to online and the appropriate values are
obtained from the switch and displayed. If cleared, all
controls on the grid are set to offline. From the keyboard,
press Alt - D.
Pool Name N/A Displays the name of the DHCP IP address pool
configured on the switch. A DHCP IP address pool is a
range (or pool) of available IP addresses that the switch
can assign to connected devices. The name can have up
to 31 alphanumeric characters. The name cannot contain
a ? or a tab.
Starting IP Address N/A Displays the starting IP address that defines the range of
addresses in the DHCP IP address pool. The format is a
32-bit numeric address written as four numbers
separated by periods (for example, 255.255.255.255).
Each number can be from 0…255.
Ending IP Address N/A Displays the ending IP address that defines the range of
addresses in the DHCP IP address pool. The format is a
32-bit numeric address written as four numbers
separated by periods (for example, 255.255.255.255).
Each number can be from 0…255.
