Set the Synchronization Clock Mode
Follow this procedure to set the Synchronization Clock mode.

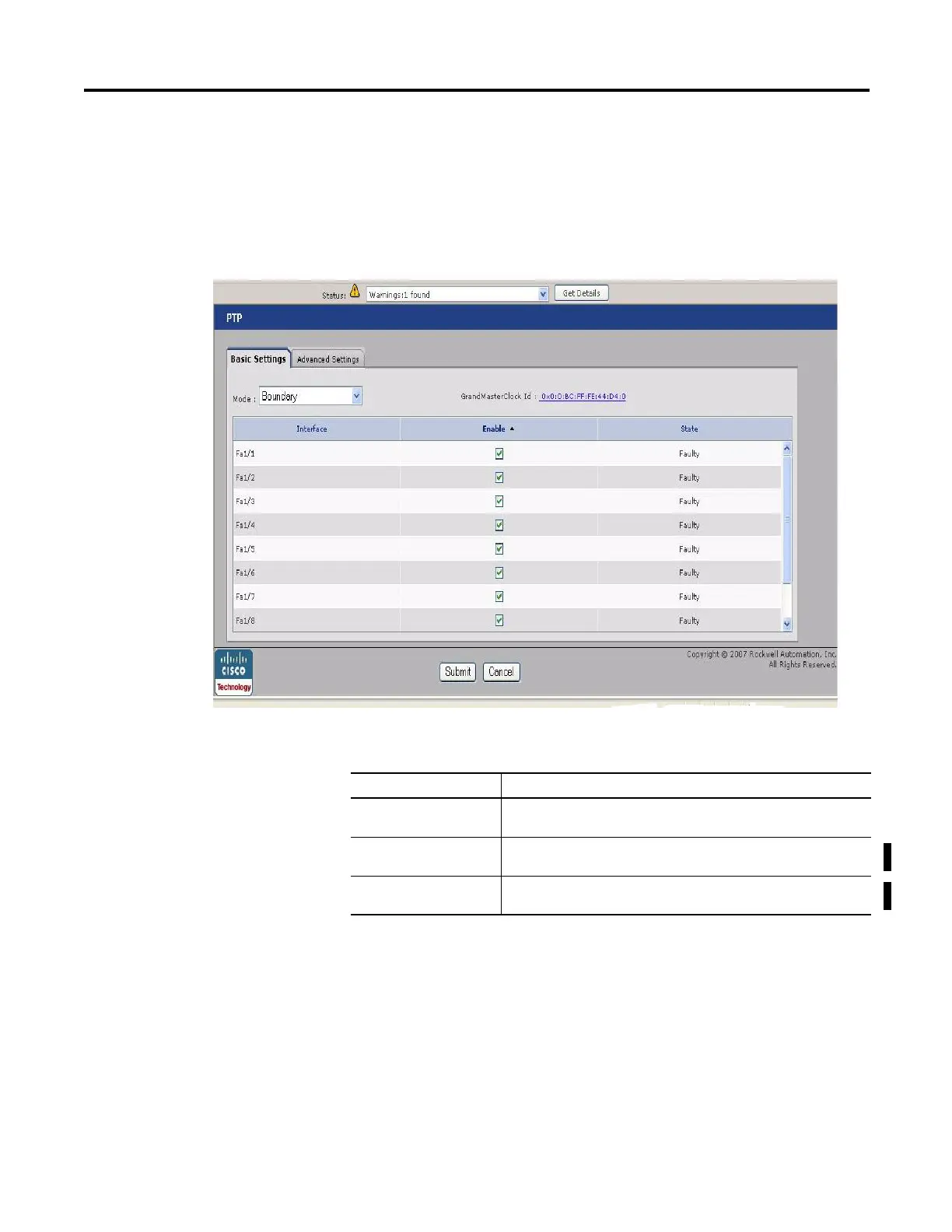

1. Click Configure>PTP from the Device Manager Web interface.
2. Select Boundary or Transparent mode.
3. Make sure the appropriate port is enabled (Enable checkbox selected).
In This Mode The Switch
Boundary Synchronizes all switch ports with the Grandmaster clock using the
IEEE 1588 V 2 Boundary clock mechanism.
End-to-End Transparent Synchronizes all switch ports with the Grandmaster clock using the
IEEE 1588 V 2 End-to-End Transparent clock mechanism.
Forward Passes through PTP data on both the ports on the base switch and the
expansion modules.
