88 Rockwell Automation Publication 1783-UM003G-EN-P - December 2012
Chapter 3 Manage the Switch via the Device Manager Web Interface
Configure Port Mirroring
To enable port mirroring, follow this procedure.
1. From the Device Manager Web interface, choose Configure>Smartports.
2. Select the Port Mirroring role.
3. Apply the port that will be used as the monitoring port.

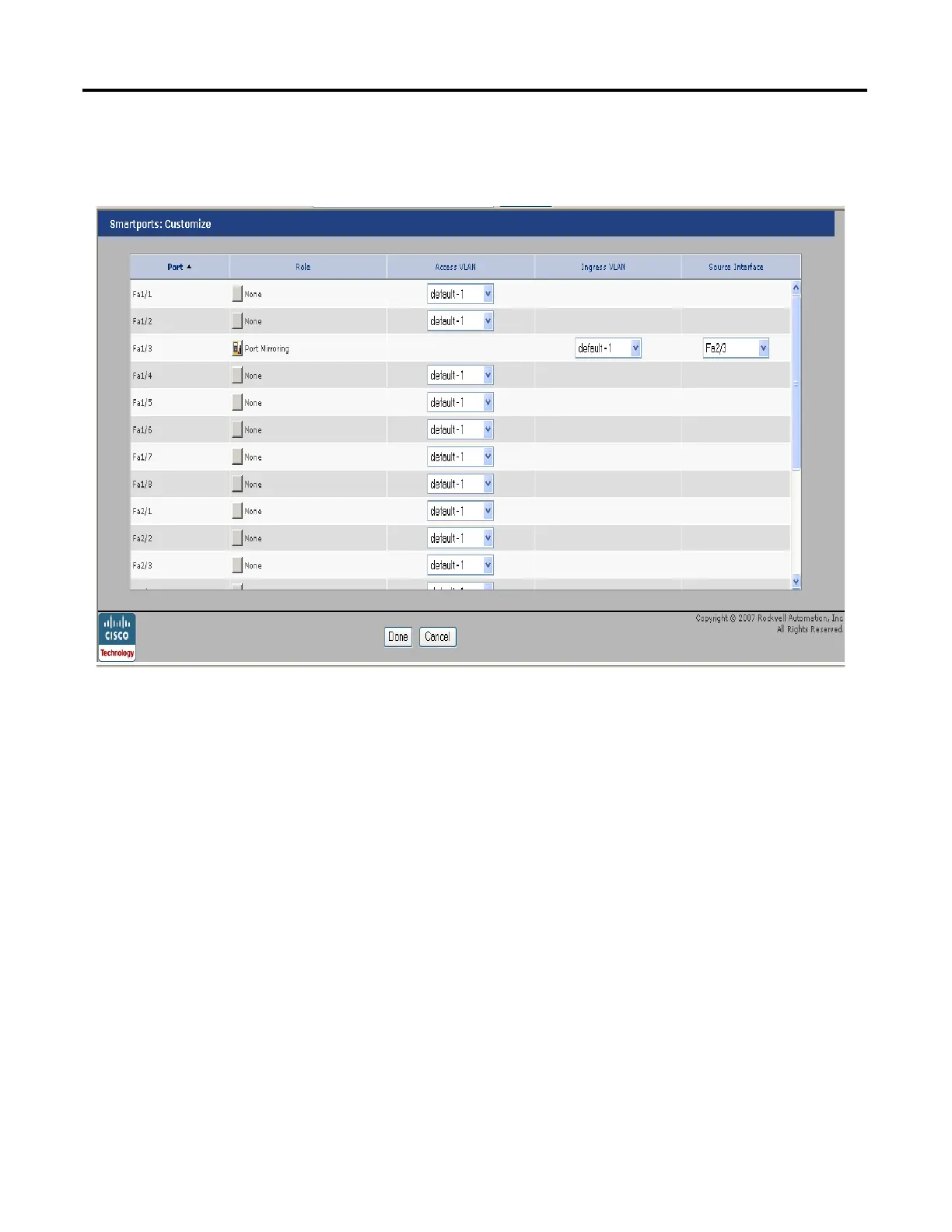

4. Click Customize to link the port that will be mirrored (source interface
and VLAN) to the monitoring port.
Only one port on the switch can be monitored at a time.
