Chapter 3 Manage the Switch via the Device Manager Web Interface
Configure IP Addresses
Use the Device Manager Web interface to configure IP addresses for VLANs.
Assign IP Addresses to VLANs
If the switch is operating as a DHCP server, the devices in a VLAN receive IP
addresses from the DHCP IP address pool in the same subnet as the VLAN IP
address.
Use the IP Addresses dialog box to assign IP addresses to VLANs. Choose
Configure > IP Addresses from the Device Manager Web interface.
Enable Static Routing
The Device Manager Web interface lets you route information across VLANs
and ports.
Route Across VLANs
You can use the IP Addresses tab to route between two VLANs connected to the
switch. VLANs must have IP addresses assigned directly to them to allow
communication to other VLANs.
To route across VLANs, define the VLAN, IP address, and subnet mask. Before
configuring the routing table, you must first configure all VLANs. Refer
to Configure VLANs on page 63.

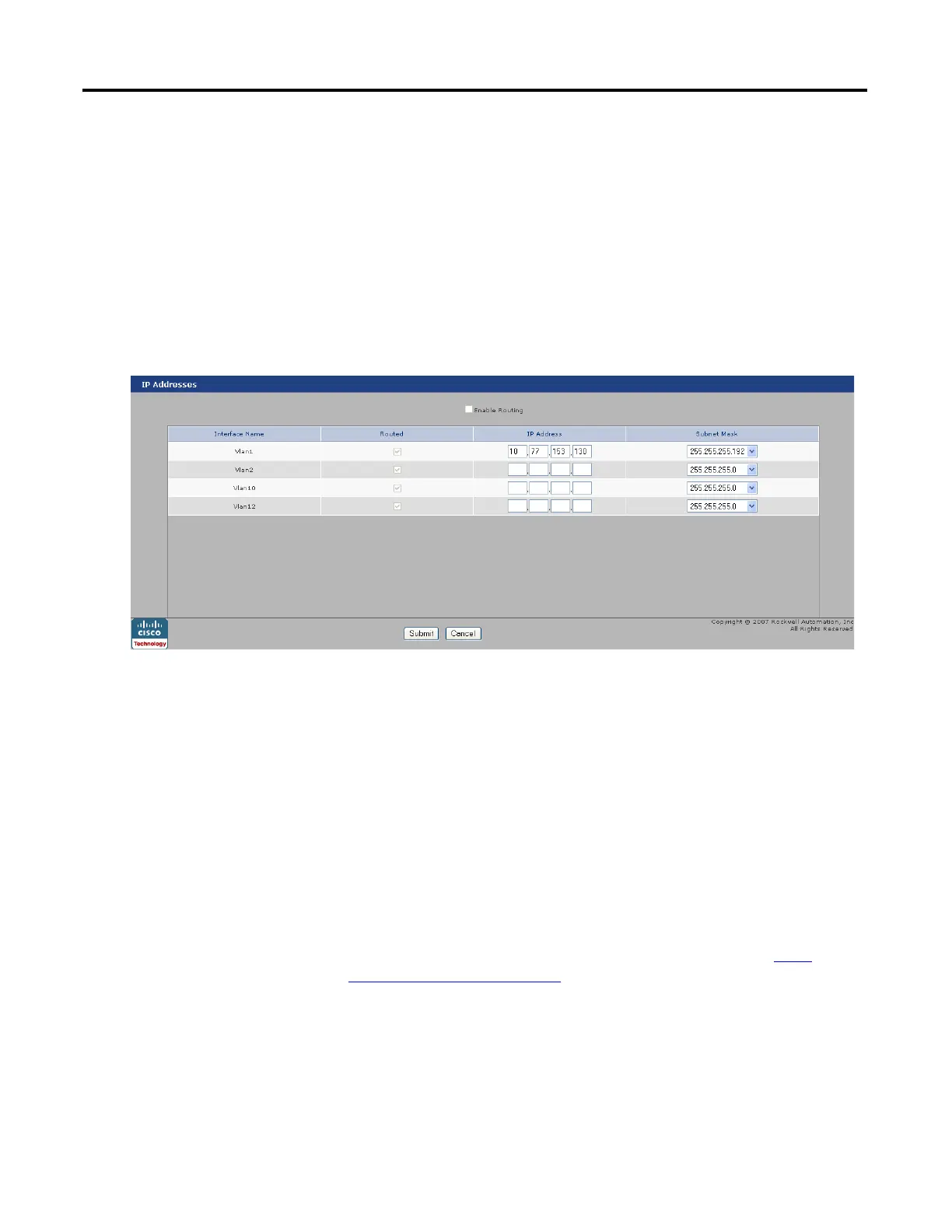

Use the IP Addresses dialog box to route across VLANs.
1. Choose Configure > IP Addresses from the Device Manager Web
interface.
2. Assign a unique IP address and subnet mask for each VLAN.
3. Select Enable Routing.
