Allen-Bradley Stratix 8300 User Manual

Rockwell Automation Publication 1783-UM003G-EN-P - December 2012 157
Appendix C
Cables and Connectors
10/100 and 10/100/1000
Ports
The 10/100 and 10/100/1000 Ethernet ports on switches use standard RJ45
connectors and Ethernet pinouts with internal crossovers.

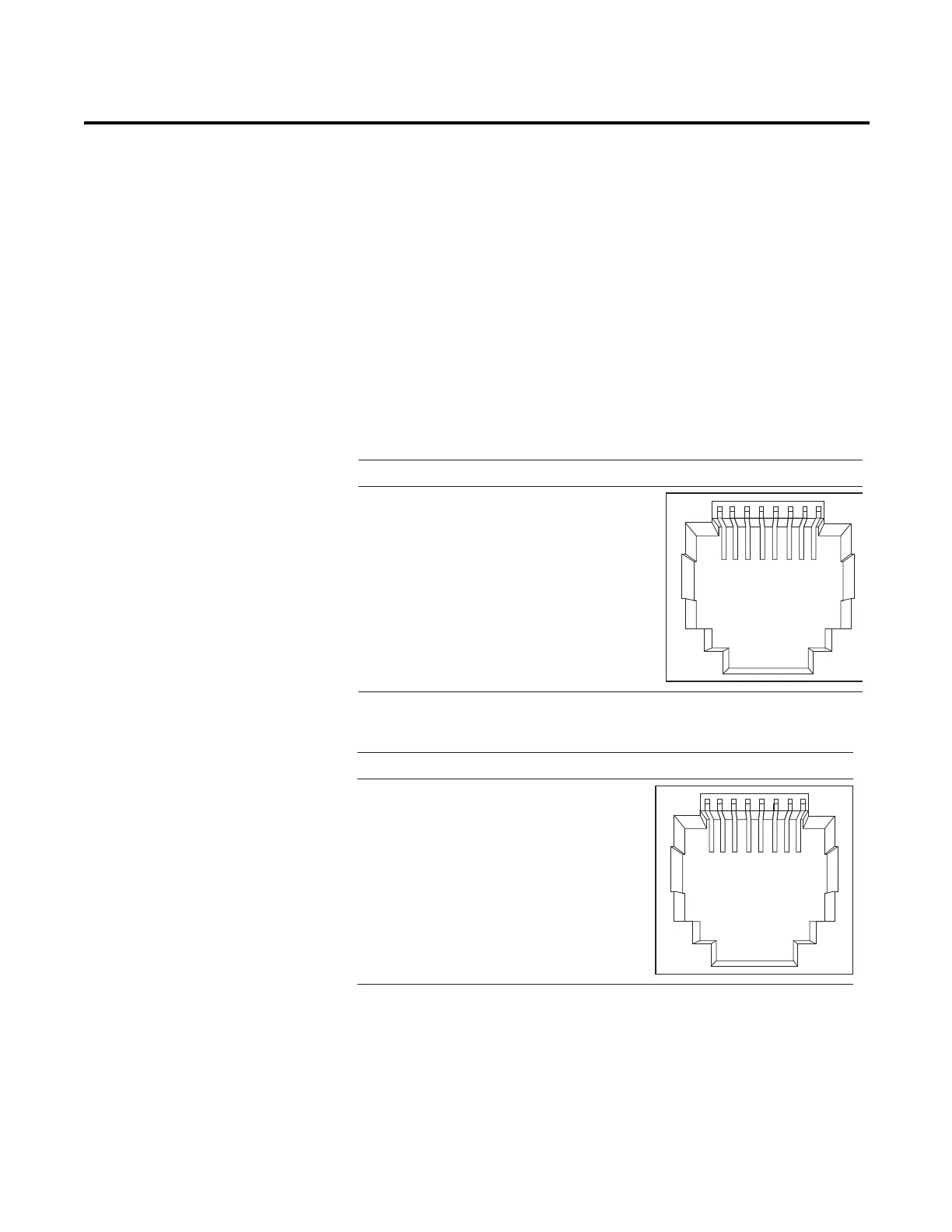

The following figure shows the connector pinouts.
Figure 7 - 10/100 Connector Pinouts
Figure 8 - 10/100/1000 Connector Pinouts
TIP
The auto-MDIX feature is enabled by default.
231 45678Pin Label
1
2
3
4
5
6
7
8
RD+
RD-
TD+
NC
NC
TD-
NC
NC
60915
231 45678Pin Label
1
2
3
4
5
6
7
8
TP0+
TP0-
TP1+
TP2+
TP2-
TP1-
TP3+
TP3-
