Rockwell Automation Publication 1783-UM003G-EN-P - December 2012 161
Cables and Connectors Appendix C
Dual-purpose Ports
The Ethernet port on a dual-purpose port uses standard RJ45 connectors. The
following figure shows the pinouts.

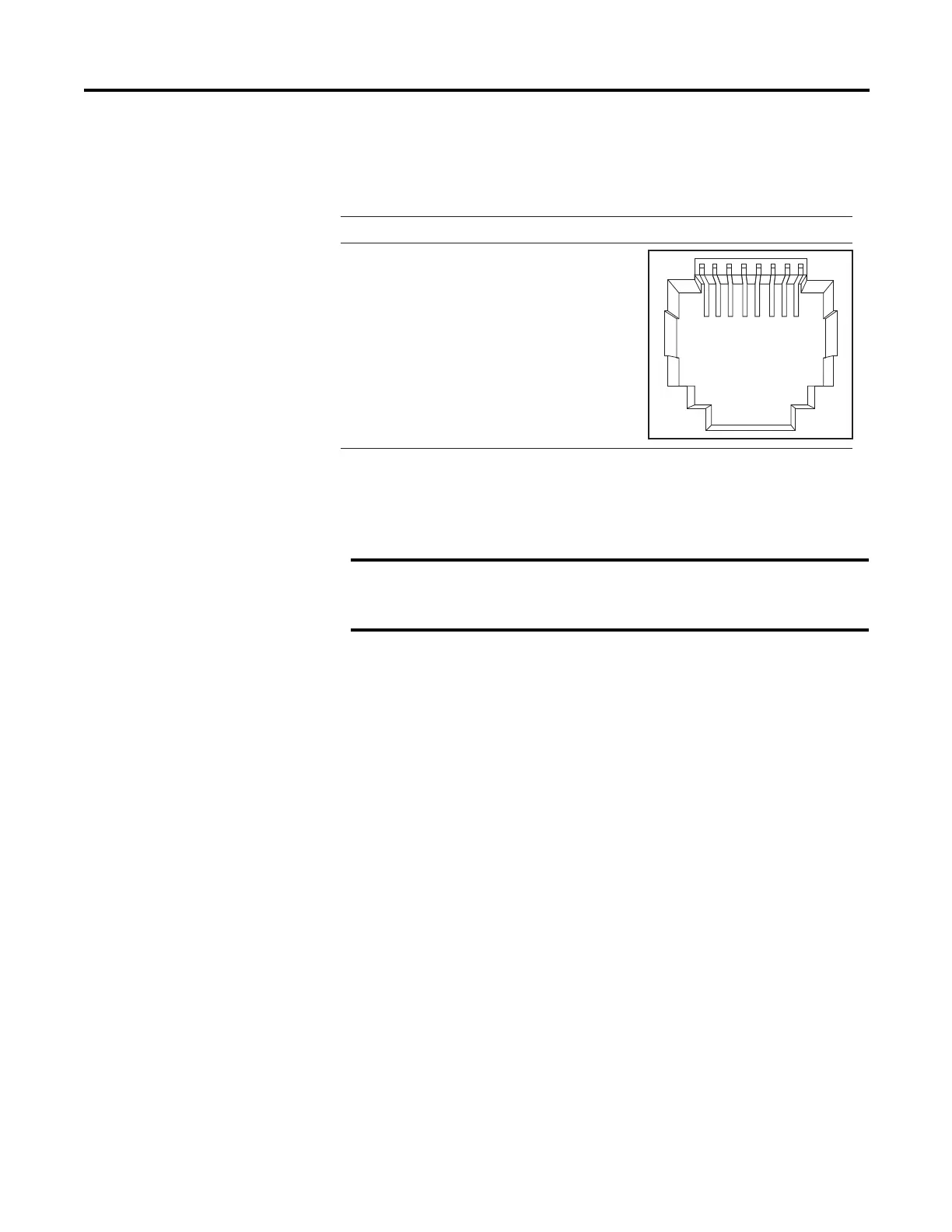

Figure 14 - Ethernet Port RJ45 Connector
The SFP module slot on a dual-purpose port uses SFP modules for fiber-optic
ports.
Console Port
The console port uses an 8-pin RJ45 connector. The supplied RJ45-to-DB-9
adapter cable is used to connect the console port of the switch to a console
personal computer. You need to provide an RJ45-to-DB-25 female DTE adapter
if you want to connect the switch console port to a terminal.
60915
231 45678Pin Label
1
2
3
4
5
6
7
8
TP0+
TP0-
TP1+
TP2+
TP2-
TP1-
TP3+
TP3-
The auto-MDIX feature is enabled by default. For configuration
information for this feature, see the switch software
configuration guide or the switch command reference.
