Canon XF300 User Manual

Playback
136
5
Clip Operations
Using the Clip Menu
1 Select a clip and then press SET.
• The clip menu appears. Available functions depend on the index
screen and which functions are enabled.
2 Select the desired function and then press SET.
• The function is enabled. For some functions, further action may be
required. Follow the onscreen directions.
• Press the CANCEL button instead to return to the clip index screen.

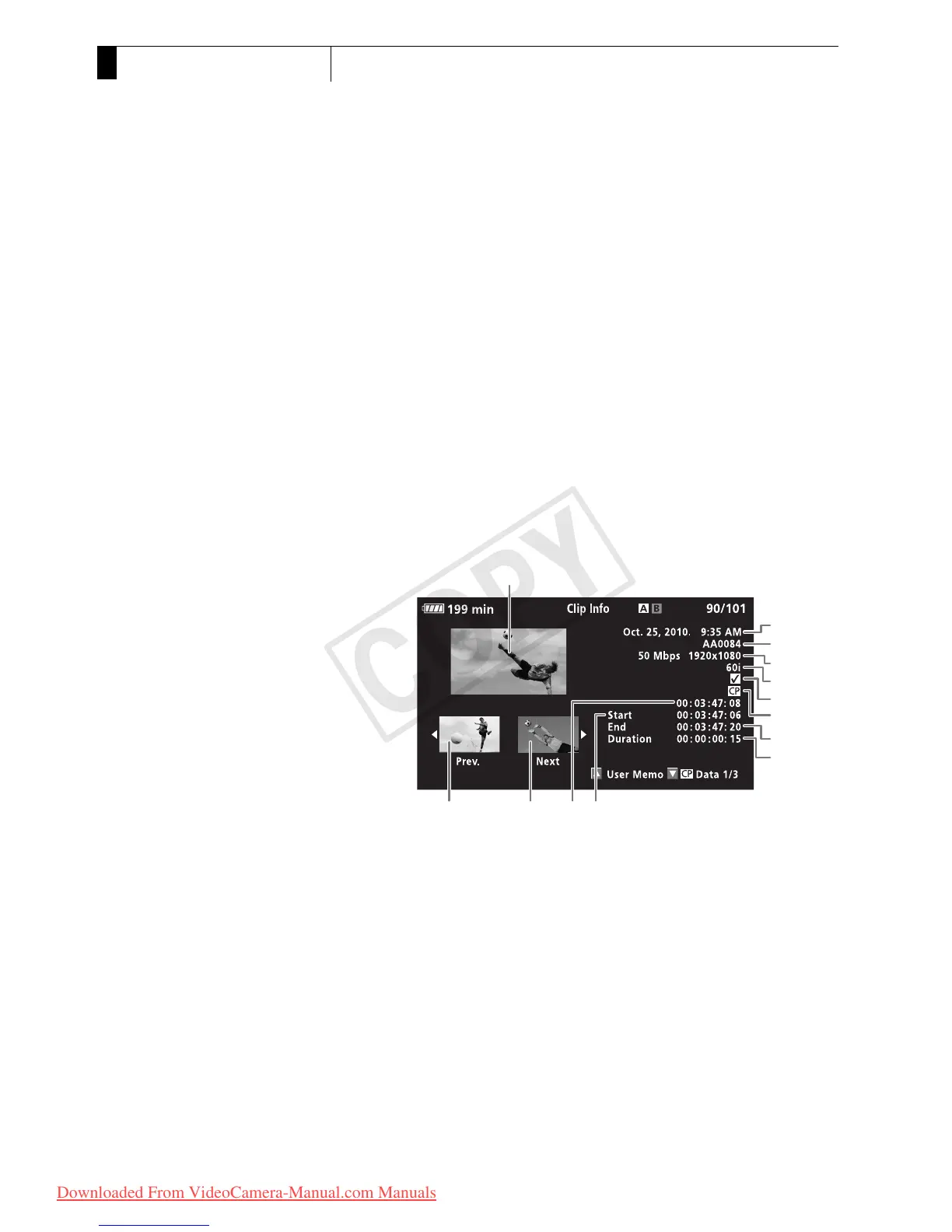

Displaying Clip Information
Select [Display Clip Info] in the clip menu to display the selected clip’s
information screen ([Clip Info] screen). Push the joystick left/right to switch
to the previous/next clip. When you are finished, press the CANCEL
button to return to the clip index screen.
1
3
2
4
8
9
6
7
5
13 12 11 10
1 Thumbnail of the selected clip
2 Recording date and time
3Clip name (0 47)
4 Bit rate and resolution (0 53)
5 Special recording mode /
Frame rate (0 104): For slow
& fast motion recording mode,
the shooting and playback
frame rates will be displayed.
6 e mark / Z mark (0 137)
7 Embedded custom picture file
(0 115)
8 Time code of the last frame in
clip
9 Clip duration
10 Time code of the first frame in
clip
11 Time code of the clip
thumbnail
12 Thumbnail of the next clip
13 Thumbnail of the previous clip
COPY
Downloaded From VideoCamera-Manual.com Manuals

Canon XF300 Specifications

General

Filter size	82 mm
Digital zoom	1.5 x
Optical zoom	18 x
Image stabilizer	Yes
Focal length range	4.1 - 73.8 mm
Focal length (35mm film equivalent)	29.3 - 527.4 mm
Sensor type	CMOS
Total megapixels	2.37 MP
Optical sensor size	1/3 \
Video out	1
Flash memory	32768 MB
Aperture range (F-F)	1.6 - 22
Horizontal resolution	1000 lines
Power consumption (typical)	9 W
Viewfinder resolution	1550000 pixels
Viewfinder screen size	0.57 \
Display diagonal	4 \
ISO sensitivity	Auto
Normal focusing range	0.02 - 1 m
Maximum frame rate	50 fps
Maximum video resolution	1920 x 1080 pixels
Image formats supported	JPG
Audio formats supported	MP3
Camera shutter speed	1/18 - 1/2000 s
Microphone in	No
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Firewire (IEEE 1394) ports	0
Compatible memory cards	SD, SDHC
Product color	Black
Video recording time	1.2 h
Operating temperature (T-T)	-5 - 45 °C

Weight and Dimensions

Depth	180 mm
Width	394 mm
Height	192 mm
Weight	2700 g
