147
External Connections
6
Connecting to an External Monitor
Connecting to an External Monitor
When you connect the camcorder to an external monitor for recording or
playback, use the terminal on camcorder that matches the one you wish
to use on the monitor. Then, select the video signal output configuration
(0 145). The camcorder can output video from all of the video output
terminals simultaneously.

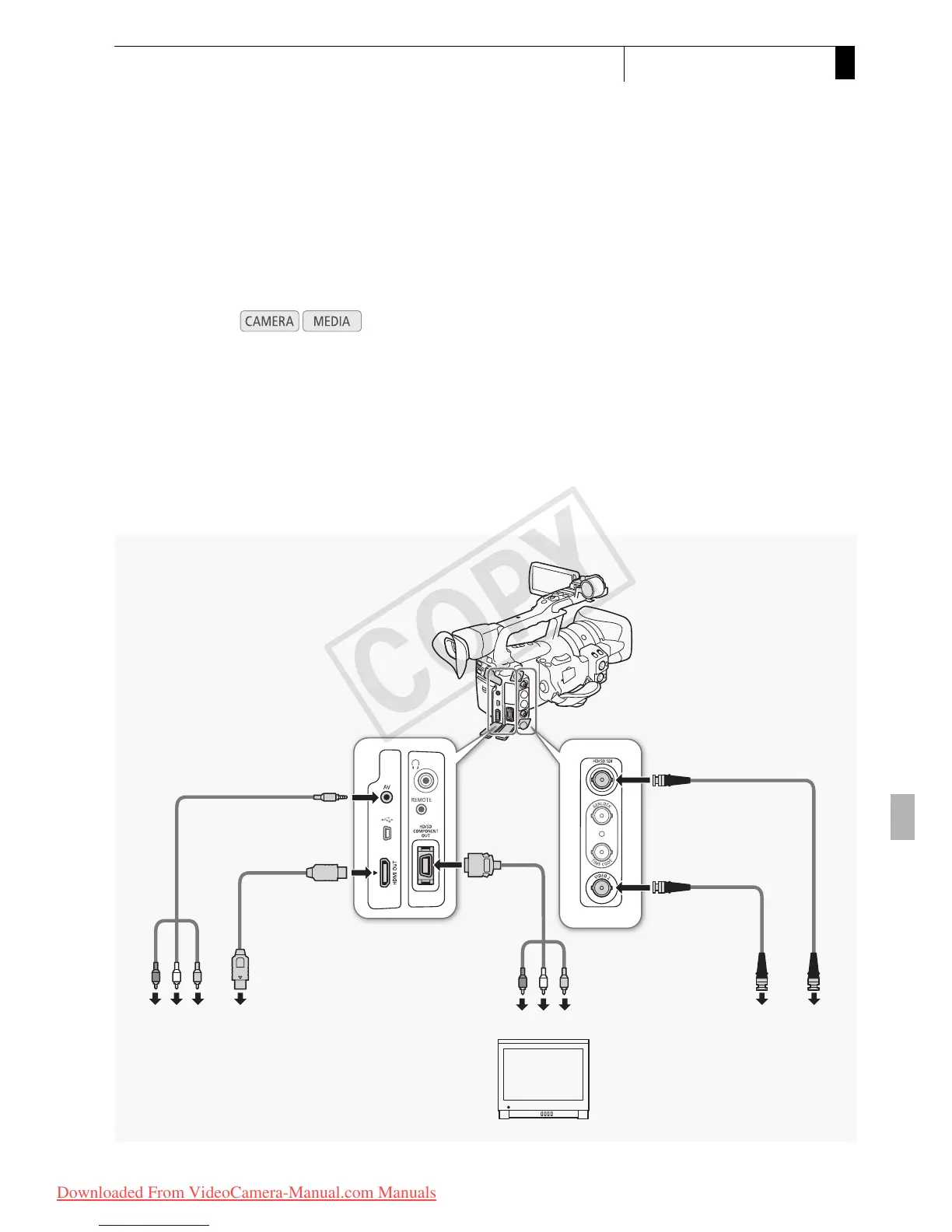

Connection Diagram
When you connect the camcorder to an external monitor using the HD/SD
COMPONENT OUT terminal, audio is output by connecting the optional
STV-250N Stereo Video Cable to the monitor using the AV terminal.
We recommend that you power the camcorder from a household power
outlet using the compact power adapter.
Operating modes:
STV-250N
Stereo Video
Cable (Optional)
VIDEO IN/
AUDIO IN
HDMI IN
COMPONENT IN
VIDEO IN SDI IN
DTC-1500
Component
Video Cable
(supplied)
HD/SD
COMPONENT
OUT terminal
BNC cable
(commercially
available)
BNC cable
(commercially
available)
HDMI cable
(commercially
available)
HDMI OUT
terminal
VIDEO 2 terminal
AV terminal
HD/SD SDI
terminal*
* b only
