Canon XF300 User Manual

81
Recording
3
Onscreen Markers and Zebra Patterns
Onscreen Markers and Zeb ra Patterns
Using onscreen markers allows you to make sure your subject is correctly
framed and is within the appropriate safe area. The zebra patterns help
you identify areas that are overexposed. The onscreen markers and zebra
pattern will not affect your recordings.
Displaying Onscreen Markers
Available types of onscreen markers are a center marker ([Center]),
horizontal level marker ([Horizontal]), grid ([Grid]), safe area markers
([Safety Zone]) and aspect ratio marker ([Aspect Marker]).
1 Open the desired marker submenu.
[M LCD/VF Setup] [Markers] select the desired marker
2 Select [White] or [Gray] and then press SET.
• Select [Off] to turn off the selected marker.
• You can display multiple markers simultaneously. Repeat steps 1 and
2 for each marker you wish to display.
• If you selected [Safety Zone] or [Aspect Marker], continue to step 3. If
not, skip to step 4.
3 Select [Safety Zone Area] or [Aspect Ratio], select the desired
option and then press SET.
Operating modes:
[M LCD/VF Setup]
[Markers]
[Center]
[Horizontal]
[Grid]
[Safety Zone]
[Aspect Marker]
[Off]

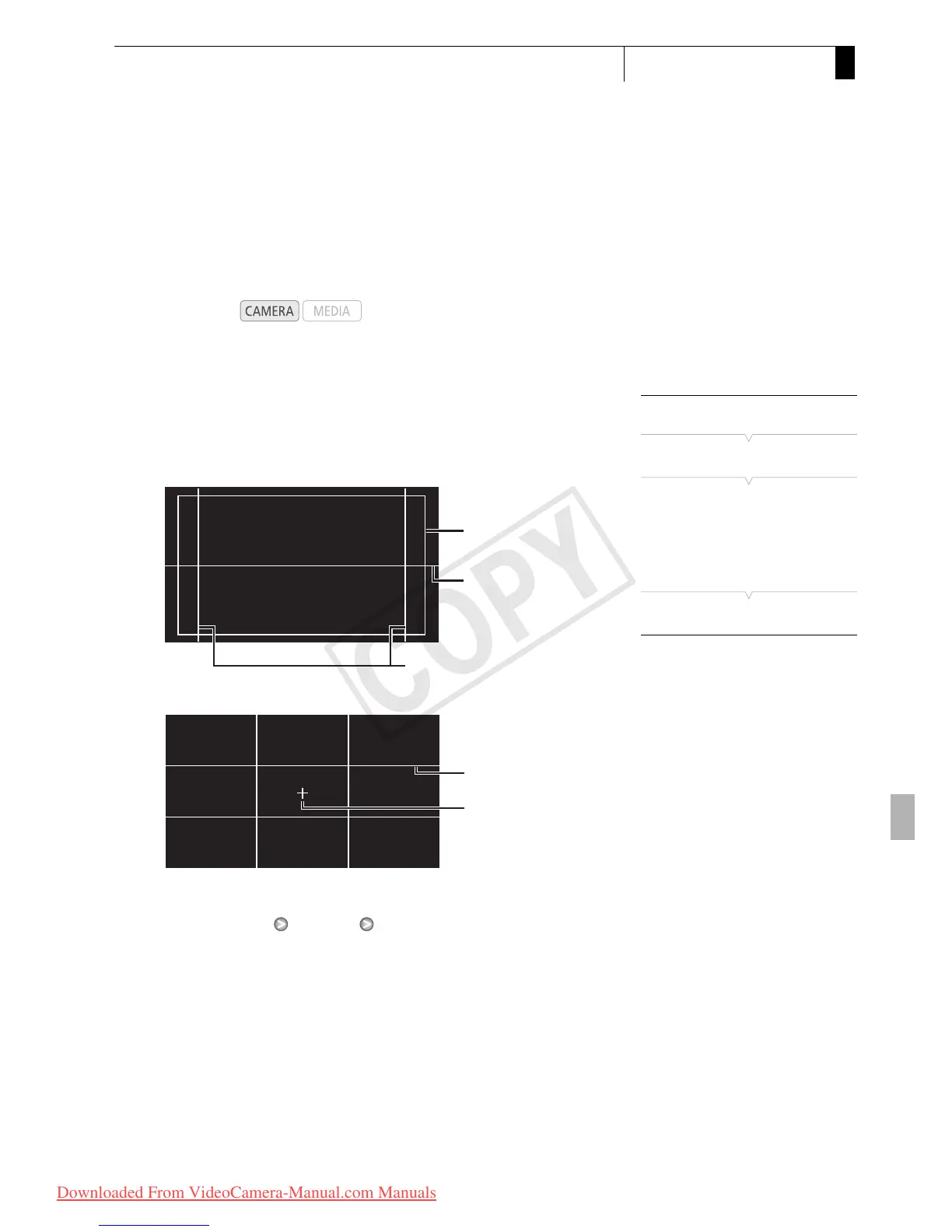

Aspect guide 4:3
Level marker
Safety zone 80%
Center marker
Grid
COPY
Downloaded From VideoCamera-Manual.com Manuals

Canon XF300 Specifications

General

Filter size	82 mm
Digital zoom	1.5 x
Optical zoom	18 x
Image stabilizer	Yes
Focal length range	4.1 - 73.8 mm
Focal length (35mm film equivalent)	29.3 - 527.4 mm
Sensor type	CMOS
Total megapixels	2.37 MP
Optical sensor size	1/3 \
Video out	1
Flash memory	32768 MB
Aperture range (F-F)	1.6 - 22
Horizontal resolution	1000 lines
Power consumption (typical)	9 W
Viewfinder resolution	1550000 pixels
Viewfinder screen size	0.57 \
Display diagonal	4 \
ISO sensitivity	Auto
Normal focusing range	0.02 - 1 m
Maximum frame rate	50 fps
Maximum video resolution	1920 x 1080 pixels
Image formats supported	JPG
Audio formats supported	MP3
Camera shutter speed	1/18 - 1/2000 s
Microphone in	No
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Firewire (IEEE 1394) ports	0
Compatible memory cards	SD, SDHC
Product color	Black
Video recording time	1.2 h
Operating temperature (T-T)	-5 - 45 °C

Weight and Dimensions

Depth	180 mm
Width	394 mm
Height	192 mm
Weight	2700 g
