Canon XF300 User Manual

99
Recording
3
Video Scopes
Video Scopes
The camcorder can display a simplified waveform monitor or
vectorscope. It can also display an edge monitor* to help you focus. The
video scopes appear only on the LCD screen. They do not appear in the
viewfinder or on an external monitor.
* The edge monitor looks at the focus of the entire picture and displays the results
as a waveform. The edge monitor is available only in mode.
Displaying a Video Scope

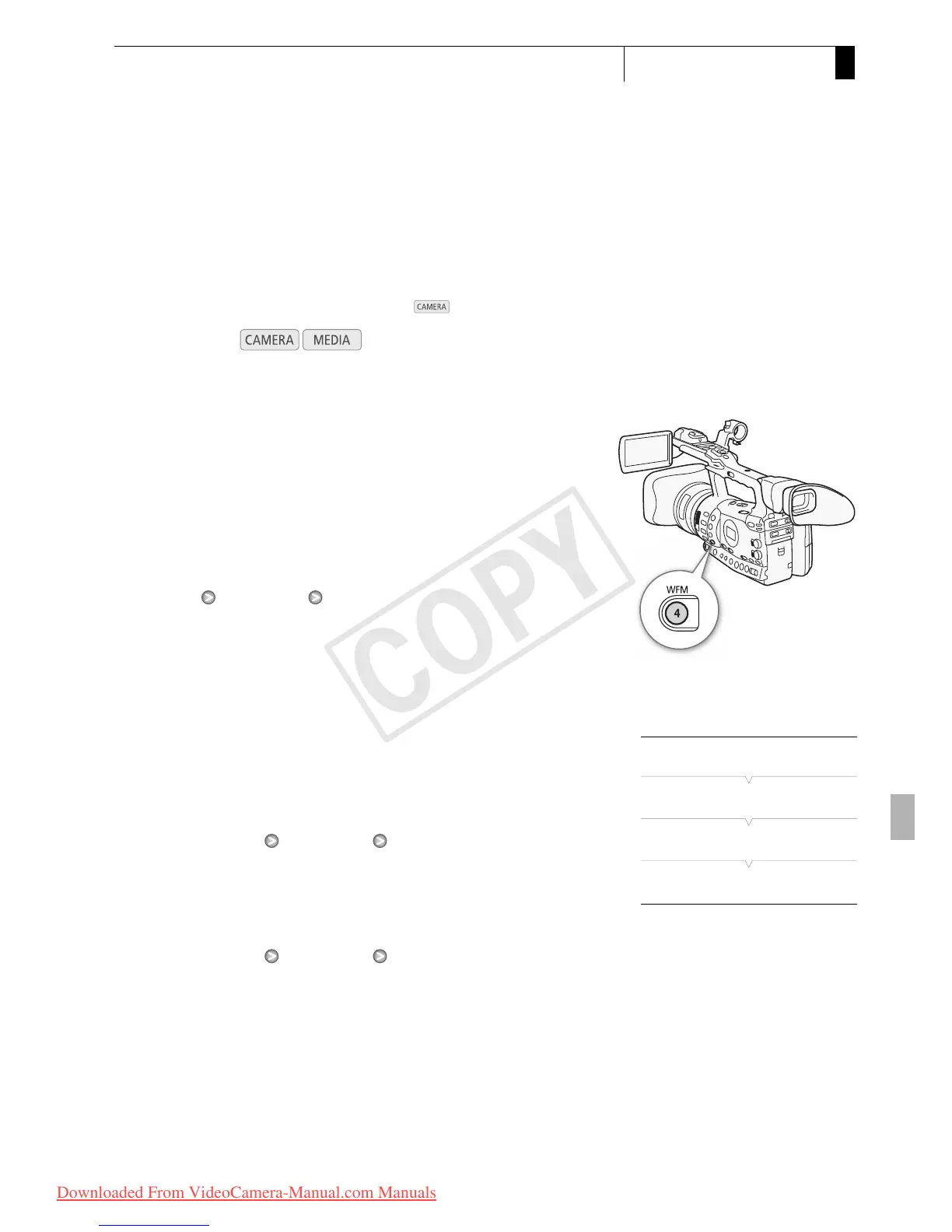

Press the WFM button.
• The waveform monitor will appear in a window on the lower right of the
screen.
• You can repeatedly press the WFM button to activate the video scopes
in the following sequence.
Waveform monitor → Vectorscope → Edge monitor → Off
• Alternatively, you can display the video scopes using [J Other
Functions] [WFM (LCD)] [Setting]. Select [WFM] for the waveform
monitor, [VS] for the vectorscope or [Edge Mon.] for the edge monitor.
Configuring the Waveform Monitor
The camcorder’s waveform monitor function offers 5 modes. You can
also change the gain.
1 Open the [Waveform Monitor] submenu.
[J Other Functions] [WFM (LCD)] [Waveform Monitor]
2 Select the desired option and then press SET.
• If you do not need to change the gain, you do not need to perform
steps 3 and 4.
3 Open the waveform monitor [Gain] submenu.
[J Other Functions] [WFM (LCD)] [Gain] (under [Waveform
Monitor])
4 Select [1x] or [2x] and then press SET.
Operating modes:
[J Other Functions]
[WFM (LCD)]
[Waveform Monitor]
[Line]
COPY
Downloaded From VideoCamera-Manual.com Manuals

Canon XF300 Specifications

General

Filter size	82 mm
Digital zoom	1.5 x
Optical zoom	18 x
Image stabilizer	Yes
Focal length range	4.1 - 73.8 mm
Focal length (35mm film equivalent)	29.3 - 527.4 mm
Sensor type	CMOS
Total megapixels	2.37 MP
Optical sensor size	1/3 \
Video out	1
Flash memory	32768 MB
Aperture range (F-F)	1.6 - 22
Horizontal resolution	1000 lines
Power consumption (typical)	9 W
Viewfinder resolution	1550000 pixels
Viewfinder screen size	0.57 \
Display diagonal	4 \
ISO sensitivity	Auto
Normal focusing range	0.02 - 1 m
Maximum frame rate	50 fps
Maximum video resolution	1920 x 1080 pixels
Image formats supported	JPG
Audio formats supported	MP3
Camera shutter speed	1/18 - 1/2000 s
Microphone in	No
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Firewire (IEEE 1394) ports	0
Compatible memory cards	SD, SDHC
Product color	Black
Video recording time	1.2 h
Operating temperature (T-T)	-5 - 45 °C

Weight and Dimensions

Depth	180 mm
Width	394 mm
Height	192 mm
Weight	2700 g
