Canon XF300 User Manual

37
Preparations
2

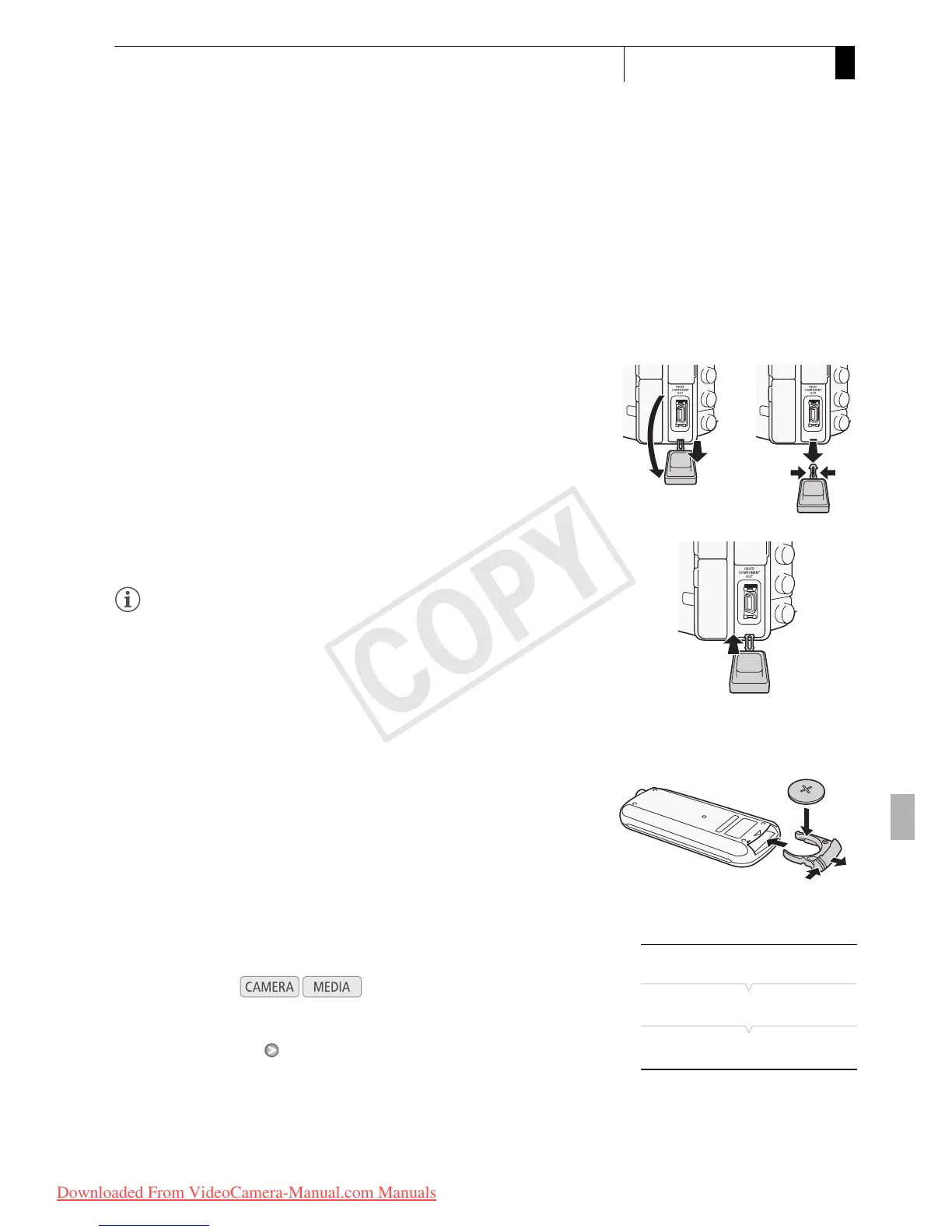

Preparing the Camcorder
Removing and Attaching the Terminal Covers
Remove the covers for the following terminals in order to access them.
* b only.
Removing the Terminal Covers
1 Open the terminal cover and pull it out.
2 Grasp the strip connecting the terminal cover to the camcorder and
pull.
This step is not necessary for the covers for the HD/SD SDI,
GENLOCK, TIME CODE and VIDEO 2 terminals.
Attaching the Terminal Covers
Insert the connecting strip into the opening to attach the terminal cover.
NOTES
• If the connecting strip is difficult to grasp, use a pair of tweezers or
similar tool.
Using the Wireless Controller
Inserting the Battery
Insert the supplied CR2025 lithium button battery into the wireless
controller before use.
1 Press the tab in the direction of the arrow () and pull out the battery
holder ().
2 Place the lithium button battery with the + side facing up ().
3 Insert the battery holder ().
Activating the Wireless Controller
1 Open the [Wireless Controller] submenu.
[J Other Functions] [Wireless Controller]
2 Select [On] and then press SET.
• HD/SD SDI terminal*
• GENLOCK and TIME CODE terminals*
• VIDEO 2 terminal
• W (headphone) and REMOTE terminals
• HD/SD COMPONENT OUT terminal
•AV terminal
• USB and HDMI OUT terminals




[J Other Functions]
[Wireless Controller]
[On]
Operating modes:
COPY
