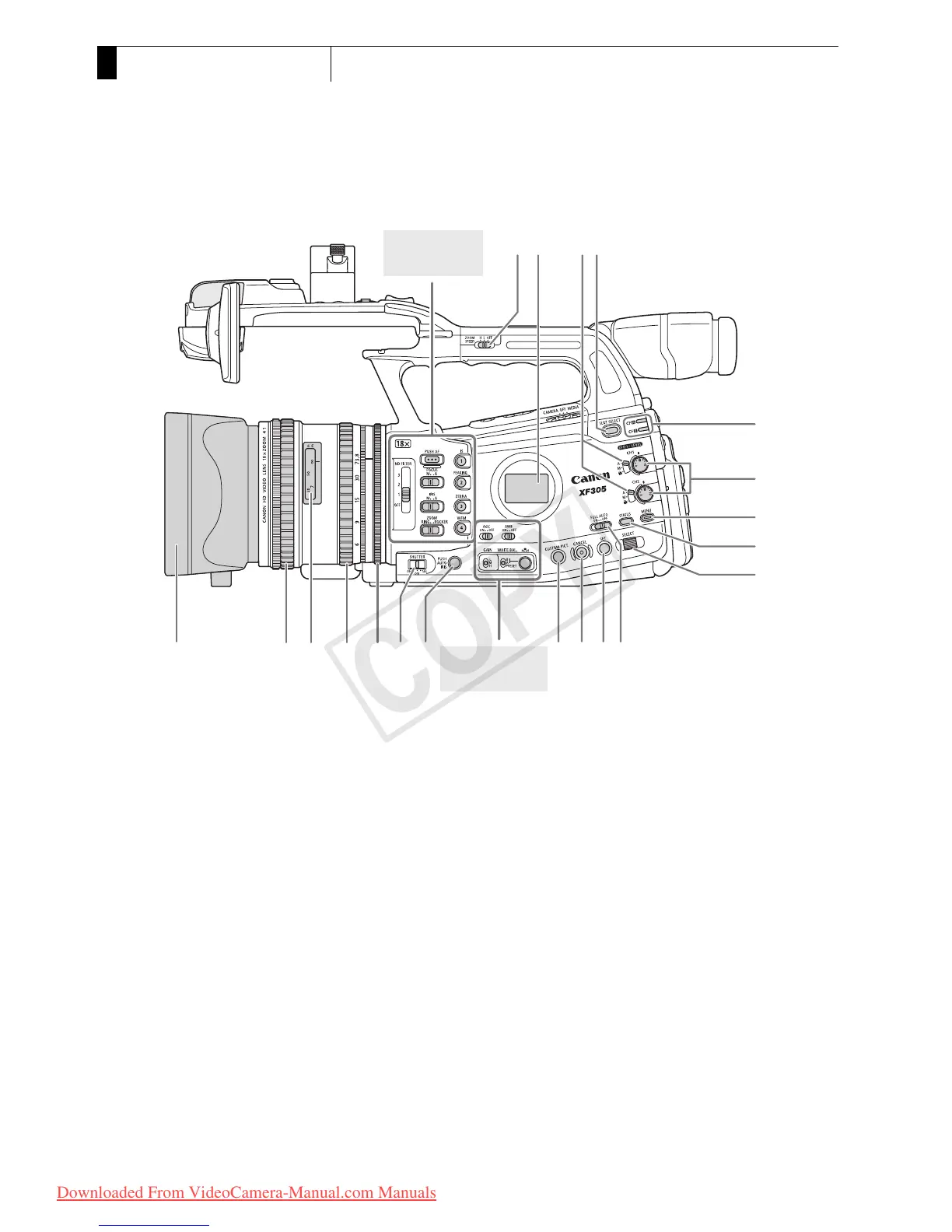

Names of Parts
Names of Parts
12 34
5
6
7
8
9
10111213141520 19 18 17 16
Operation panel 
(0 20)
Operation panel 
(0 20)
1 ZOOM SPEED switch for the handle zoom rocker
(0 79)
2 Side panel (0 50)
3 e switches (0 95)
4 SLOT SELECT (CF card slot selection) button
(0 42)
5CFj (CF card slot A) and CFl (CF card slot B)
access indicators (0 40)
6 e dials for CH1 and CH2 (0 95)
7 MENU button (0 30)
8 STATUS button (0 179)
9 SELECT dial (0 30)
10 FULL AUTO switch (0 47)
11 SET button (0 30)
12 CANCEL button (0 30)
13 CUSTOM PICT. (custom picture) button (0 115)
14 PUSH AUTO IRIS button (0 70)
15 SHUTTER switch (0 67)
16 Iris ring (0 69)
17 Zoom ring (0 77)
18 Distance indicator (0 54)
19 Focus ring (0 54)
20 Lens hood (0 32)
