Chapter 5 Network Management

Using the Network Map Window

5-12

Cisco Aironet 1200 Series Access Point Software Configuration Guide

OL-2159-01

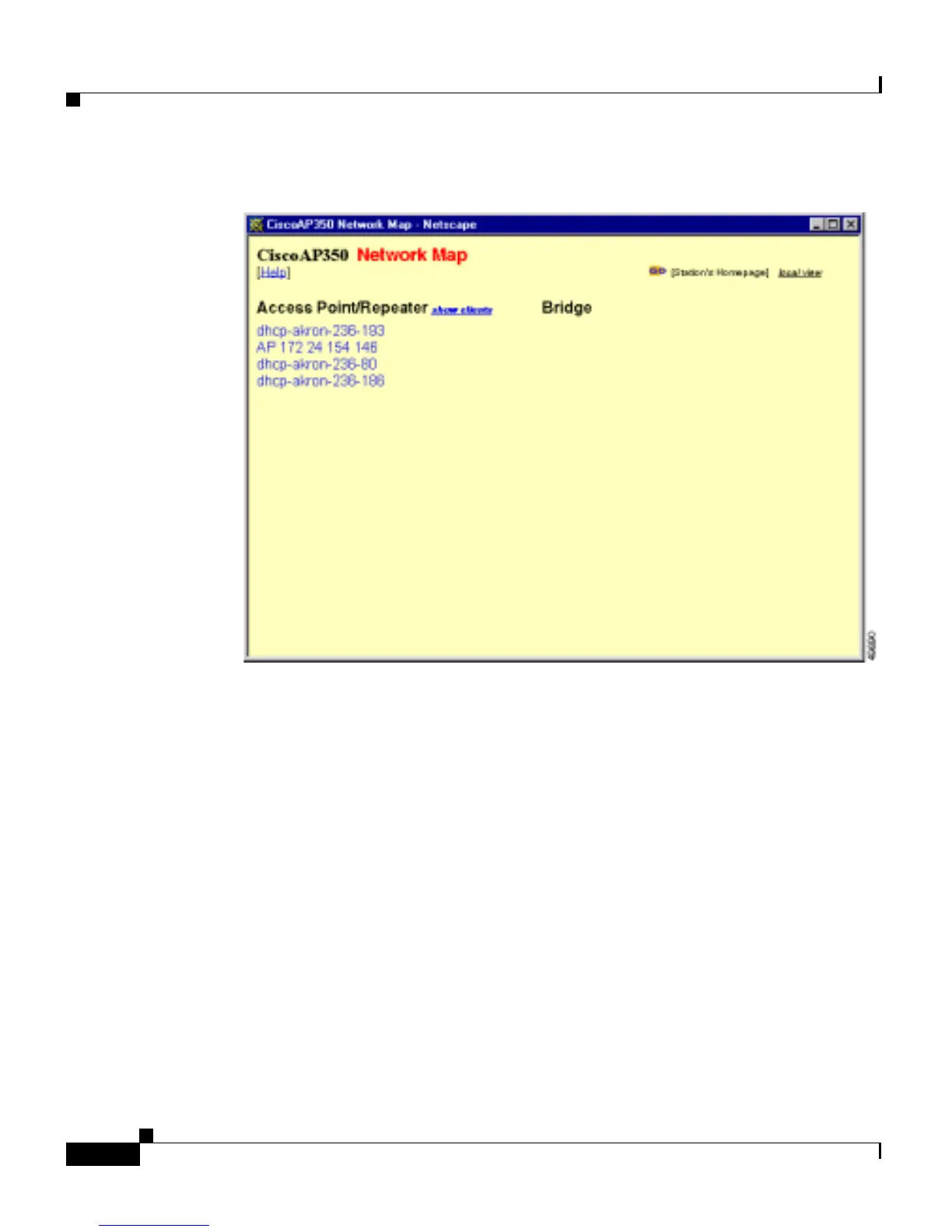

Figure 5-5 Network Map Window

Click the name of a wireless device to open a new browser window displaying a

Station page displaying the access point’s local information for that device. Click

Go beside the device name to open a new browser window displaying that

device’s home page, if available. Some devices, such as PC card clients, do not

have browser-based interfaces.

Click show clients to display all the wireless client devices on your network. The

client names appear under the access point or bridge with which they are

associated. If clients are displayed, click hide clients to display only non-client

devices.
