Chapter 9 Diagnostics and Troubleshooting
Using Diagnostic Pages
9-2
Cisco Aironet 1200 Series Access Point Software Configuration Guide
OL-2159-01
Using Diagnostic Pages
The management system contains three diagnostic pages that provide detailed
statistics and event records for the access point:
• The Radio Diagnostics Page provides the antenna alignment test and carrier
test utilities.
• The Network Ports Page lists statistics on data transmitted and received by the
access point.
• The Event Log Page lists network events.
Each page is described in the sections below.
Radio Diagnostics Page
Use the Radio Diagnostics page to test antenna alignment between two wireless
networking devices and to examine the radio spectrum in which the access point
operates. The antenna alignment test helps you find the best alignment for a
repeater access point’s directional antenna, and the carrier test helps you
determine which radio frequencies contain the most radio activity and noise that
could interfere with radio signals to and from the access point. Figure 9-1 shows
the Radio Diagnostics page.

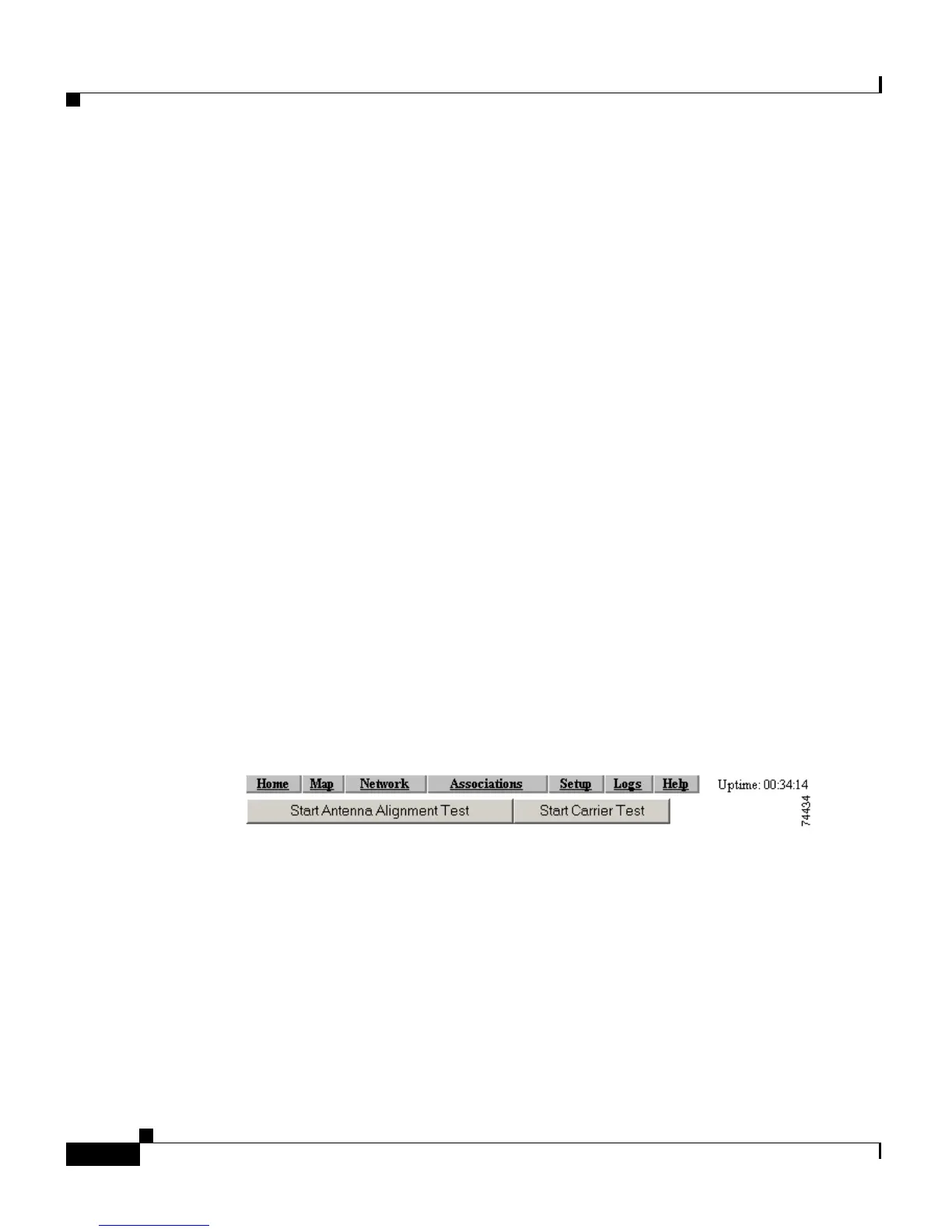

Figure 9-1 Radio Diagnostics Page
Follow this link path to reach the Radio Diagnostics page:
1. On the Summary Status page, click Diagnostics in the Network Ports row.
2. On the Cisco Network Diagnostics page, click Radio Diagnostics Tests.
