5-15

Cisco Aironet 1200 Series Access Point Software Configuration Guide

OL-2159-01

Chapter 5 Network Management

Assigning Network Ports

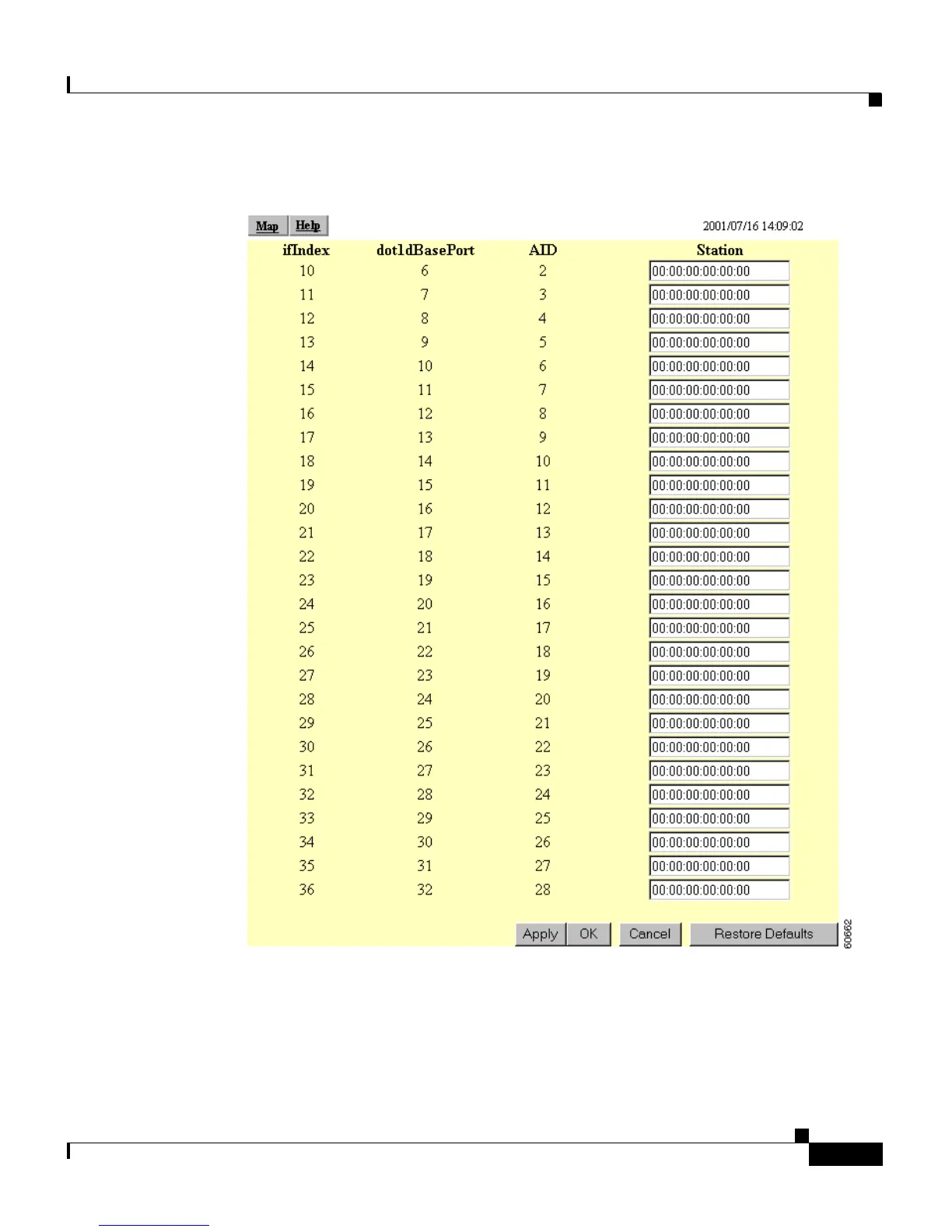

Figure 5-7 Port Assignments Page

Follow this link path to reach the Port Assignments page:

1. On the Summary Status page, click Setup.

2. On the Setup page, click Port Assignments in the Association section near

the top of the page.
