106 PowerConnect B-Series FCX Web Management Interface User Guide
53-1002268-01
Configuring an Ethernet port
4
Configuring port relative utilization
You can configure uplink utilization lists that display the percentage of bandwidth for a given uplink
port that is being used by a specific list of downlink ports. The percentages are based on
30-second intervals of RMON packet statistics for the ports. Both transmit and receive traffic is
counted in each percentage. To configure port relative utilization, from the Ethernet Port
Configuration panel, refer to “Configuring an Ethernet port” on page 101.

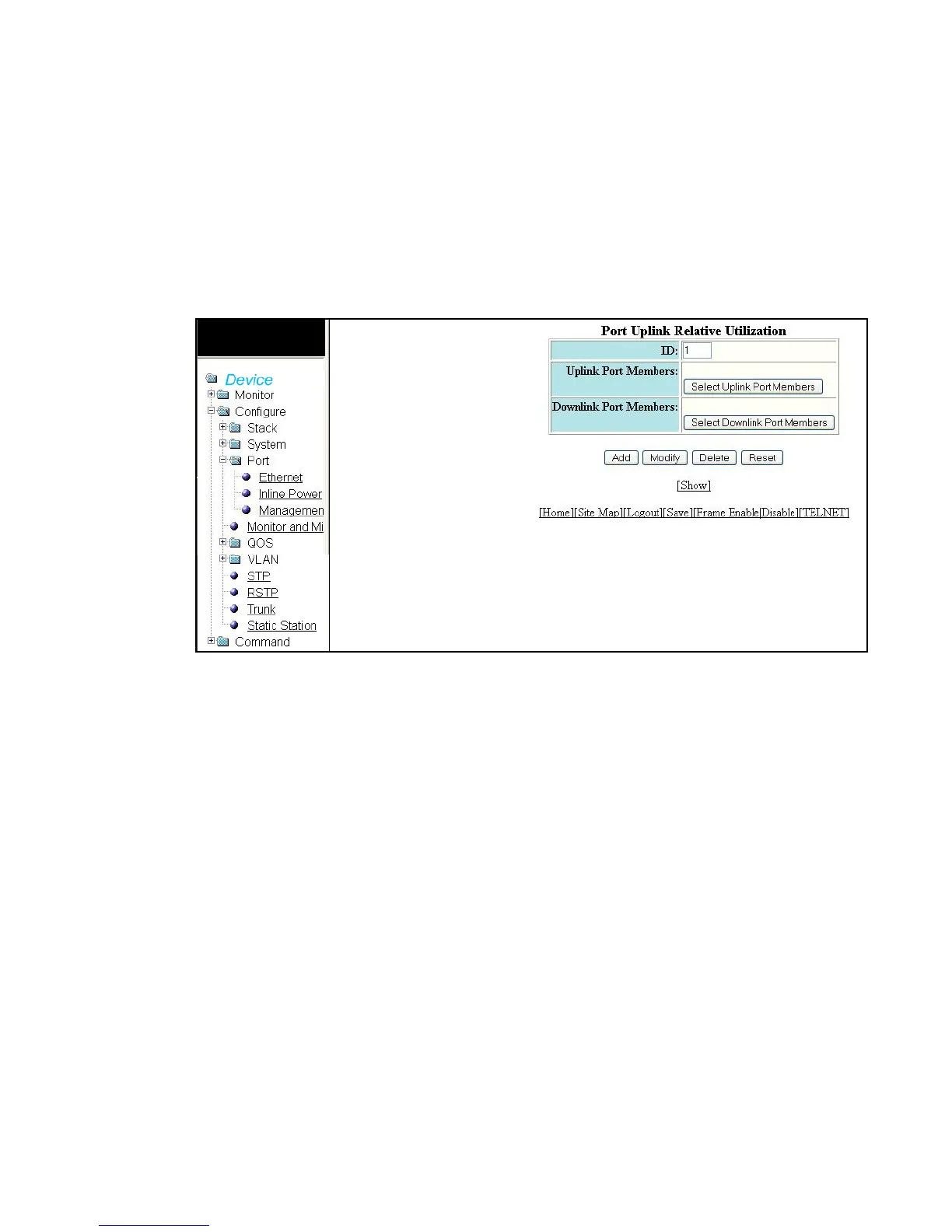

FIGURE 83 Configure - Port Uplink Relative Utilization
Click Add to add a port member. Click Modify to modify a port member. Click Delete to delete a port
member. Click Reset to undo changes.
Once the updates are made to the uplink port members or to the downlink port members, the
selected ports will appear in the related members field and a message appears at the top
indicating the change.
