Navigating the Web Management Interface
2
• For read-write access, enter set for User Name and a read-write community string for the
Password. There is no default read-write community string.
If you have configured the device to secure Web Management Interface using local user
accounts, you must enter the user name and password of one of the user accounts.
The home page appears. Figure 5 shows the home page for a Layer 2 switch. Home pages for a
Layer 3 Switch will have different entries.
FIGURE 5 Example of Web Management Interface home page
4. Click Logout, under the Command module in the menu tree on the left panel of the screen to
log out of the application.
Navigating the Web Management Interface
The Web Management Interface panels (Figure 5) consist of several parts. The left panel shows the
menu tree or list of options. The interface can be set up to display a menu tree or a list of options.
The procedures in this document assume that the menu-tree view is selected for the interface.
The right panel of the interface contains a display area where you indicate the values of the
parameters you are configuring or where you view data for the feature you are monitoring.

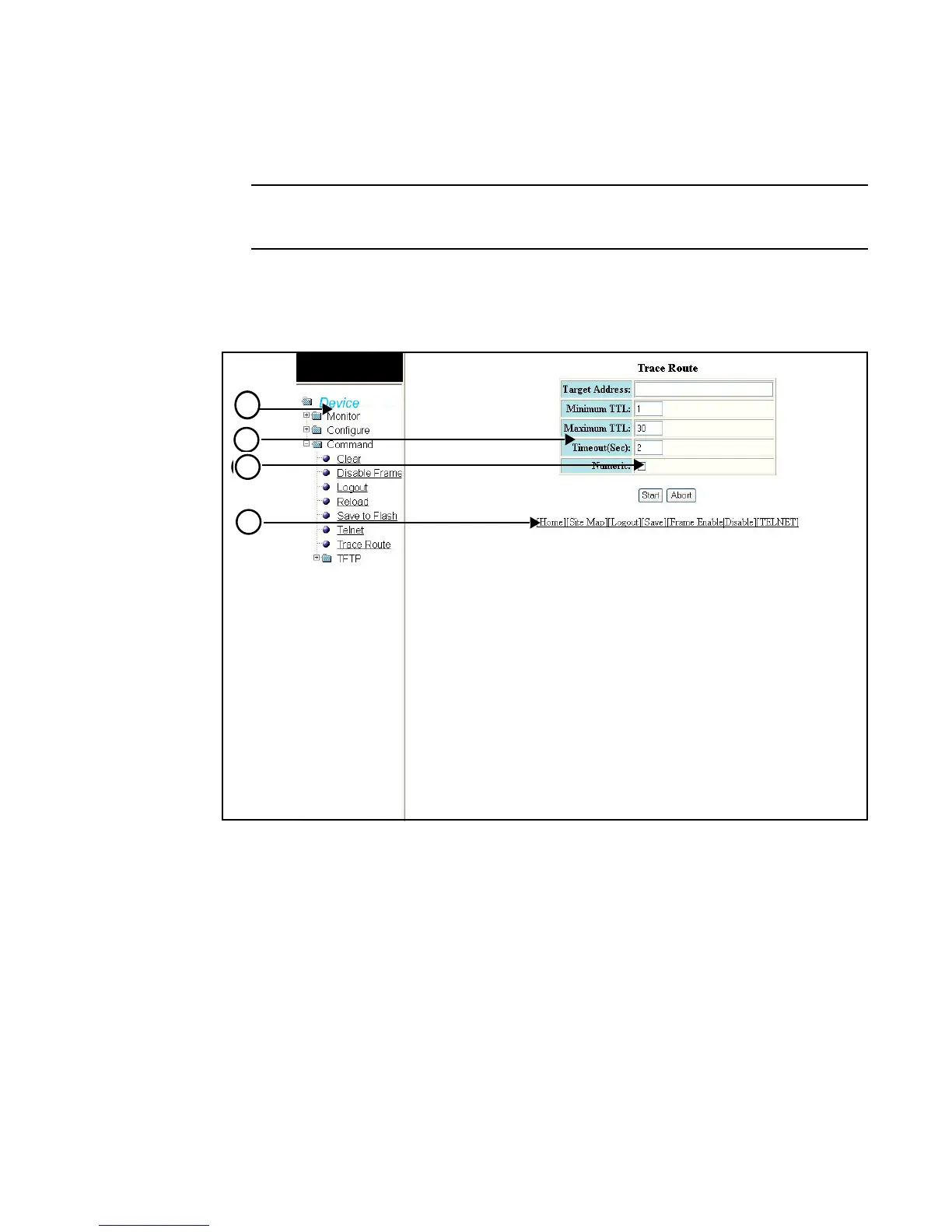

1 Menu (tree- view). 3 General system panel.
2 Configuration panel. 4 Short-cuts to functions and other panels.
