Configuring the system MAC filter
4
Configuring the system MAC filter
Select Configure > System > MAC filter to configure system MAC filter. Click Reset to undo changes.

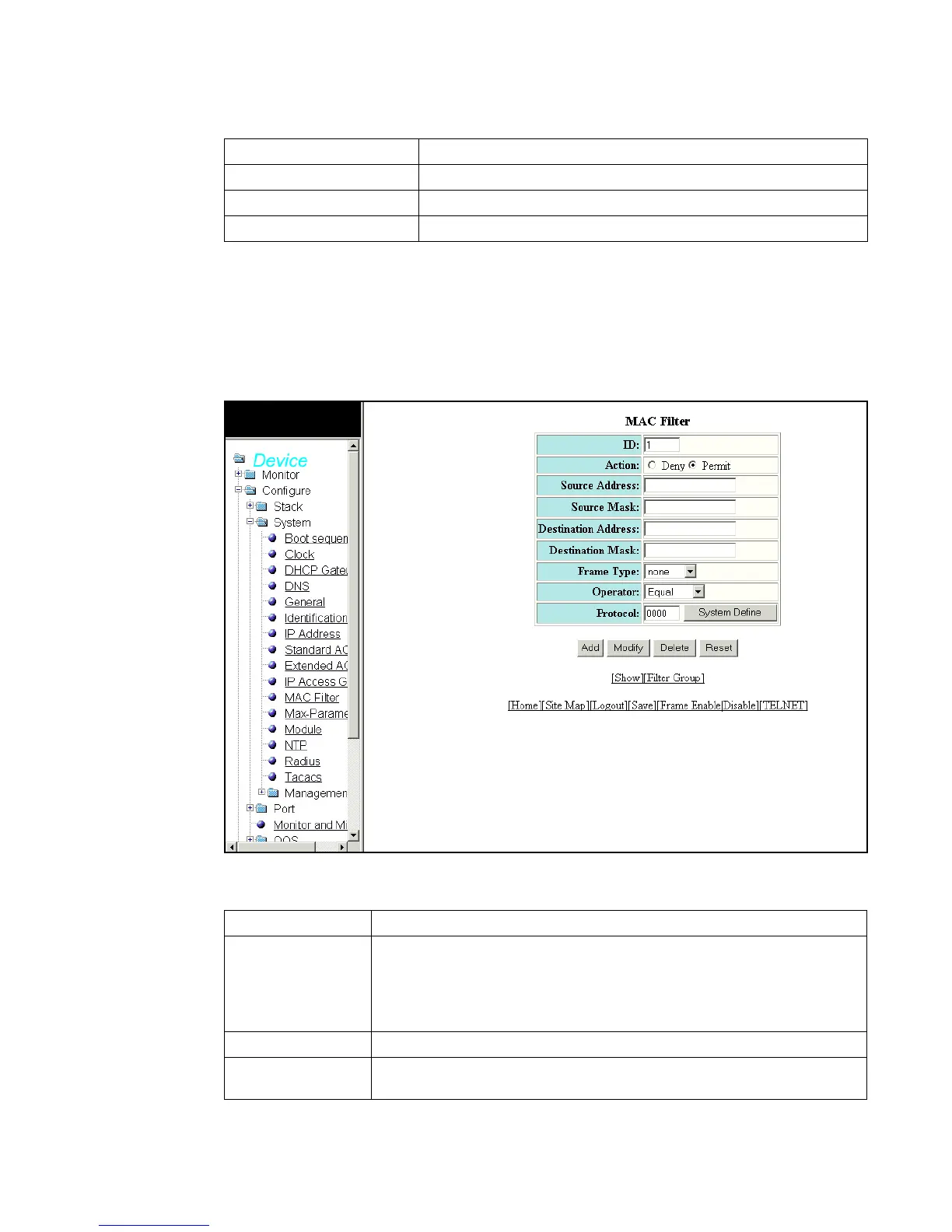

FIGURE 54 Configuring a MAC filter
The MAC Address display contains the following information.
Delete Allows you to delete any changes made.
Reset To undo your changes, click Reset.
Show Displays if there are any entries.
Select Name ACLs Clicking on this parameter allows you to enter the ACL Name
ID Displays the identification of MAC Filter
Action The action the router takes if a RIP route packet matches the IP address and
subnet mask of the filter. The action can be one of the following:
• deny – The ACL will deny (drop) packets that match a policy in the access list.
• permit – The ACL will permit (forward) packets that match a policy in the access
list.
Source Address The source identification number in the IP.
Source Mask The source mask is a bitmap picture (jpg or bmp), where the black areas are ignored
(thus transparent) and the white areas are used for the frame and text.
