Configuring the monitor and mirror port
4
Configuring the monitor and mirror port
Select Configure > Monitor and Mirror to configure the monitor and mirror port.

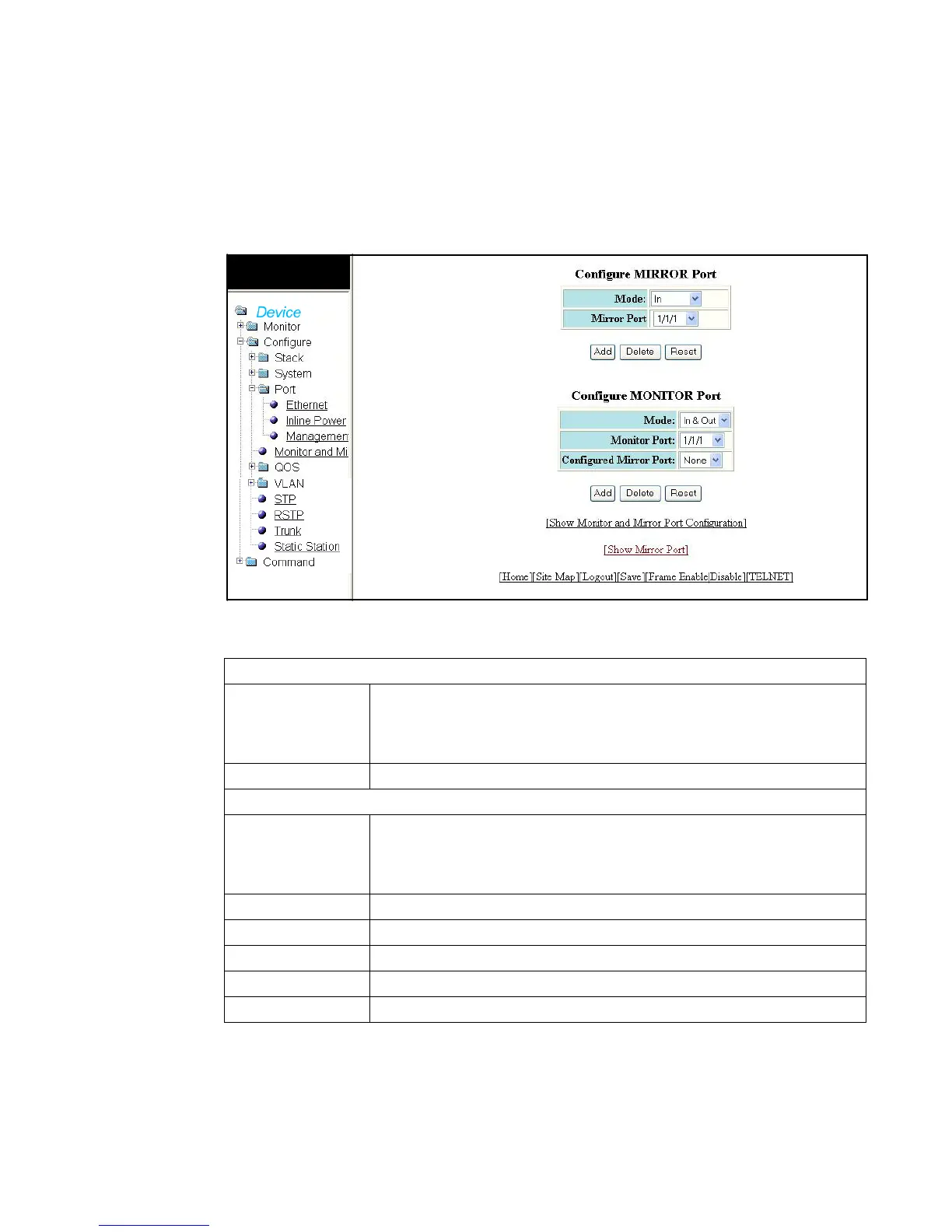

FIGURE 89 Configuring monitor and mirror port
The Monitor and Mirror port configuration display contains the following information.
Configure Mirror Port
Mode Specifies the mode in which the port operates.
• In
• Out
• In & Out
Mirror Port Specifies the port to which the monitored traffic is copied.
Configure Monitor Port
Mode Specifies the mode in which the port operates.
• In
• Out
• In & Out
Monitor Port Specifies the port whose traffic you want to monitor.
Configured Mirror Port Displays the configured mirror ports.
Add Enables you to add the ports.
Delete Enables you to delete the changes made.
Reset To undo your changes, click Reset.
