PowerConnect B-Series FCX Web Management Interface User Guide
55
53-1002268-01
Configuring a st
ack module
4
FIGURE 3
7
Show St
ac
k-Por
ts

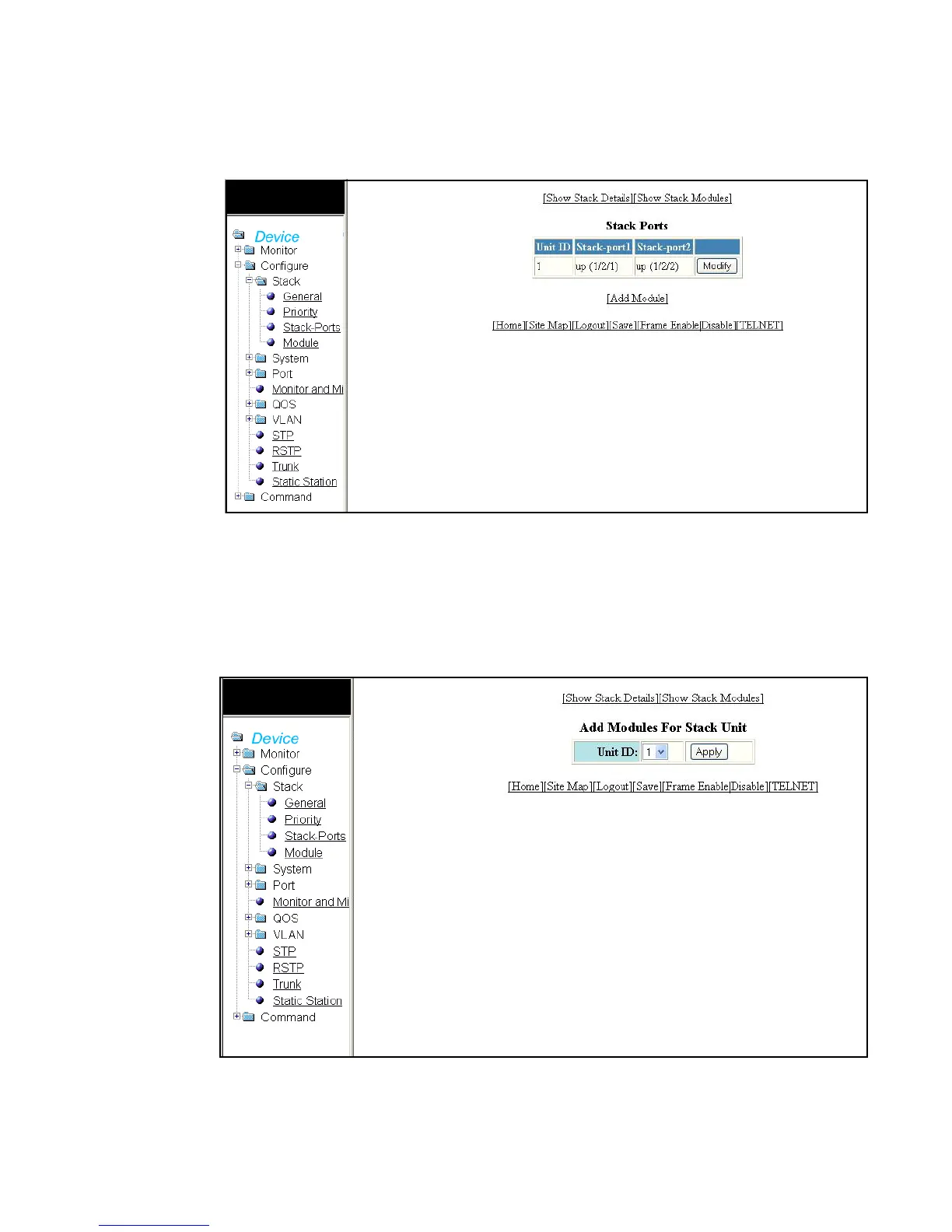

Configuring a stack module
Select
Configure > Stack > Module
t
o configure a stack module. Select a Unit ID fr
om 1 to 8 in the
drop-do
wn menu, then click
Apply
.
FIGURE 38
Add Modules for Stack Unit
64
66
