Monitoring a stack module
3
Monitoring a stack module
Select Monitor > Stack > Module to view current information about Stack Modules.

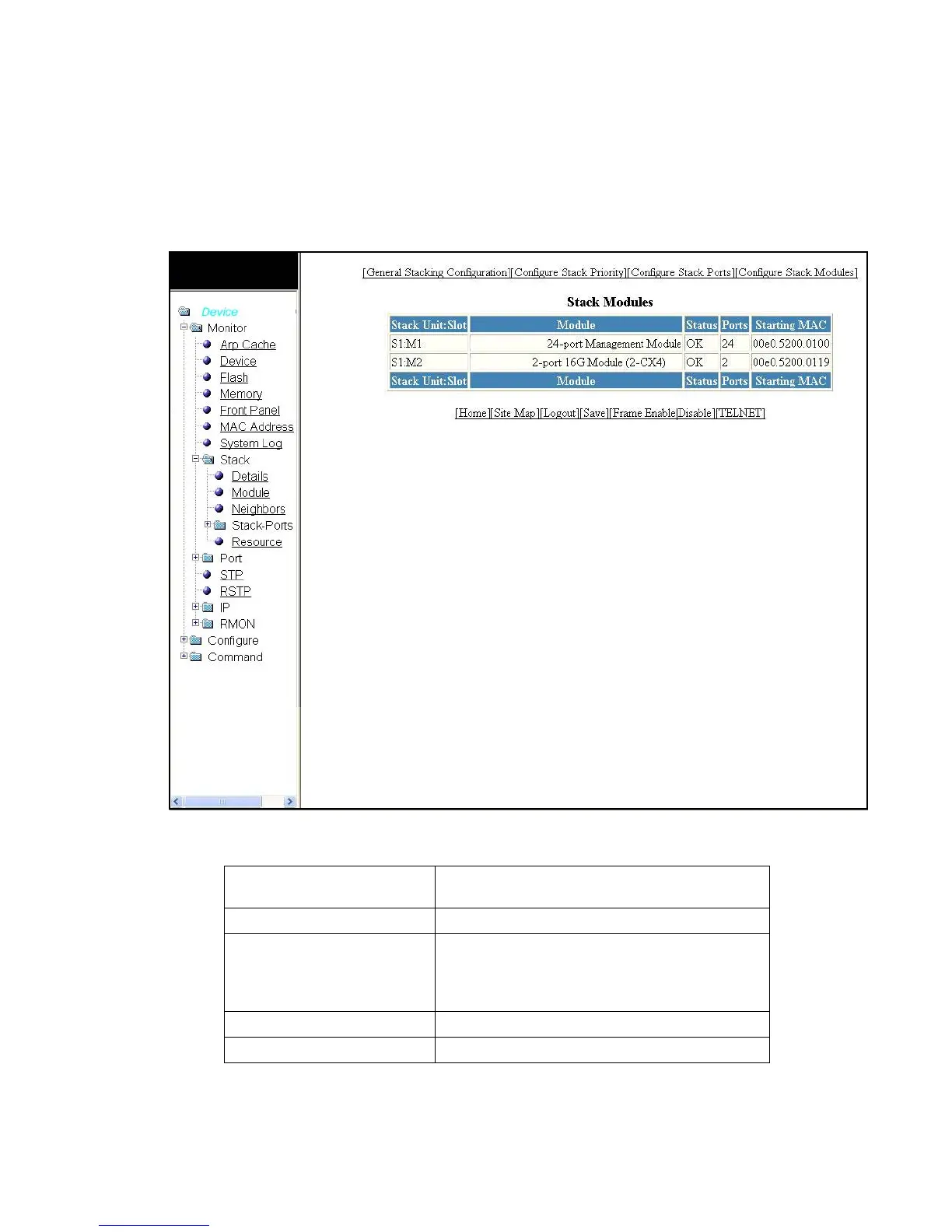

FIGURE 16 Monitor stack modules
The Stack Module contains the following information.
Stack Unit: Slot Defines the number of the unit within the stack and the
slot number.
Module The device description.
Status Status options are:
• OK – The module came up and is operating normally.
• CFG – The module is configured, but does not
physically exist within the units of the stack.
Ports The number of ports on the module.
Starting MAC The MAC address of the module.
