Chapter 3 Wiring ASDA-A2R Series

3-54 Revision December. 2014

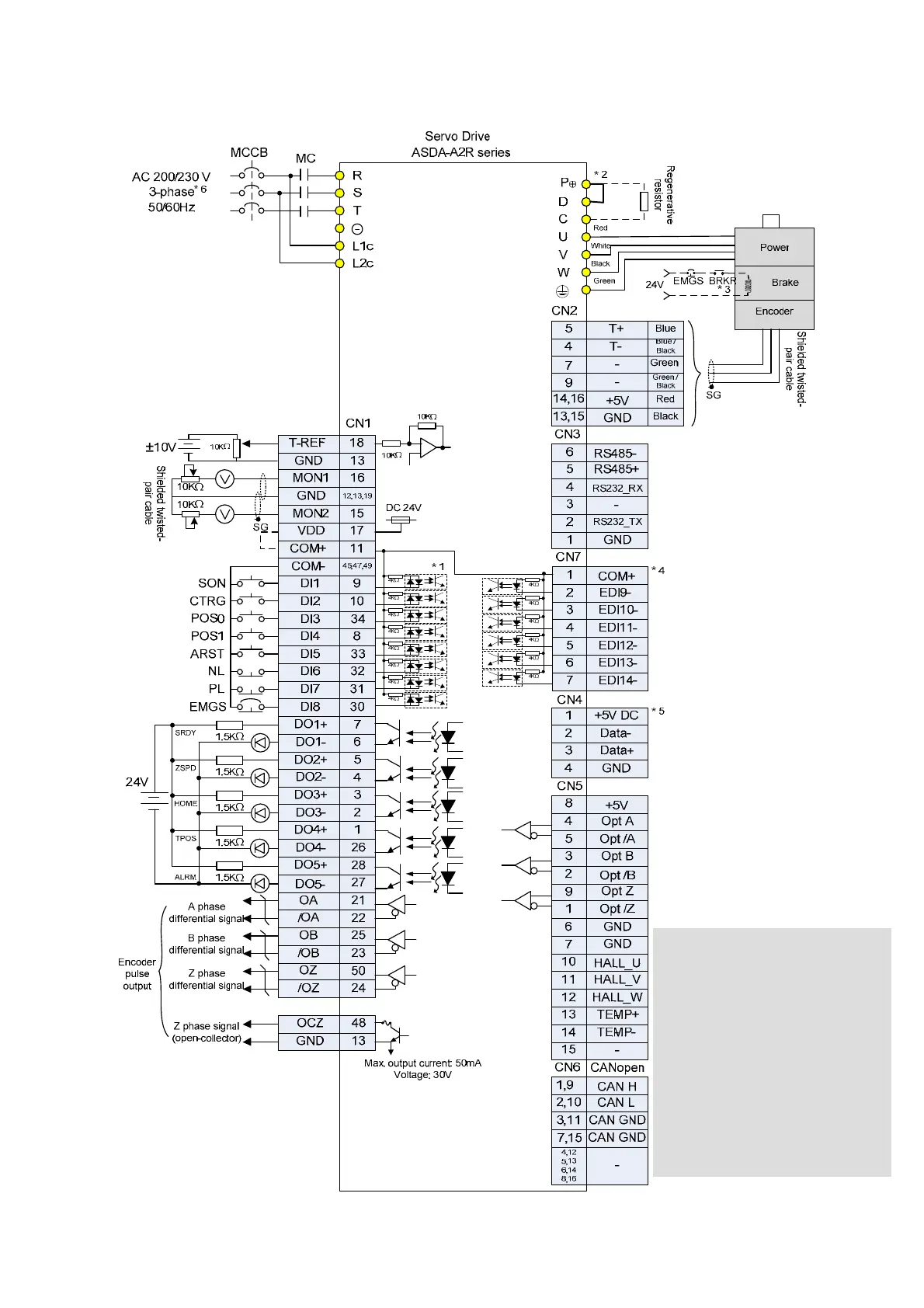

3.10.2 Position (PR) Mode Standard Wiring

Note:

*1: Please refer to section 3.3.3 for the

wiring of C9~C12 SINK / SOURCE

mode.

*2: No built-in regenerative resistor for

100W, 200W (or below) servo drives.

*3: Brake wiring has no polarity.

*4: Extension DI (selective)

*5: For USB connection. It connects to

personal computer.

*6: Model that below 1.5kW can apply

single-phase power.
