Delta ASD-A2R-1B43 Series User Manual

Revision December, 2014 12-1
Chapter 12 Setting of Motor
Parameters
12.1 Tuning Procedure of Motor Parameters
Delta ASDA-A2R Servo Drive provides a more flexible option for selecting servo drive and
motor. Once the system is properly set through the tuning procedure, it can go with the
permanent magnet synchronous linear motor and permanent magnet synchronous rotary
motor of other brands.
Users can setup motor parameters through the software or panel. For safety reasons,
please Servo OFF the servo drive beforehand.
The tuning procedures are as follows.

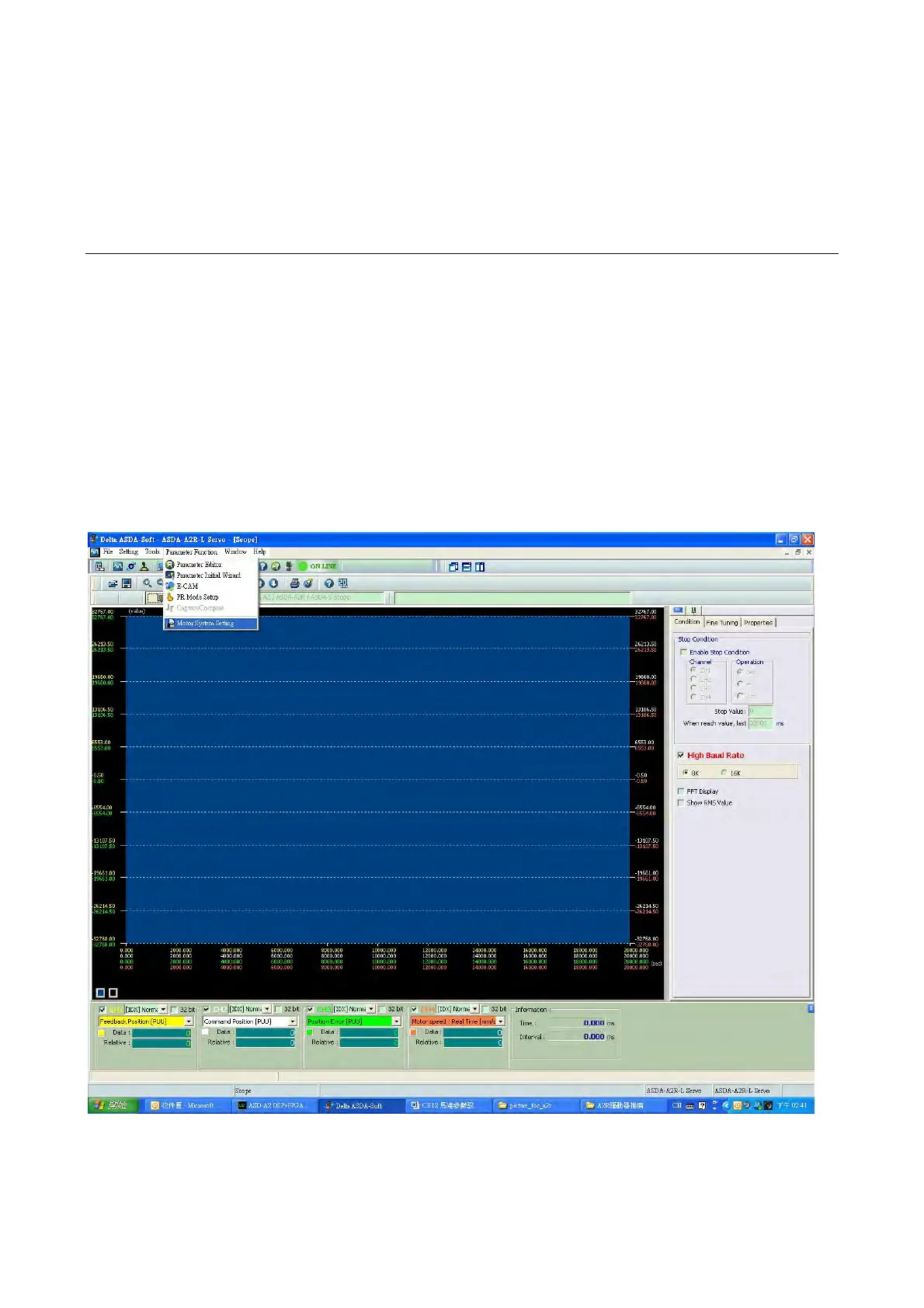

STEP 1: Open PC software. Click the motor system setting from parameter function
selection.
