2.4 Installation Direction and Space
Notes:
Follow the instructions for installation direction. Otherwise it is possible to cause
malfunction. In order to have well-cooling and circulation effect, the enough space between
adjacent objects and the baffle is needed. Or it might result in malfunction. When installing
AC servo drive, do not seal the suction hole and the vent hole. Do not place the drive in a
horizontal direction, or it might cause malfunction.

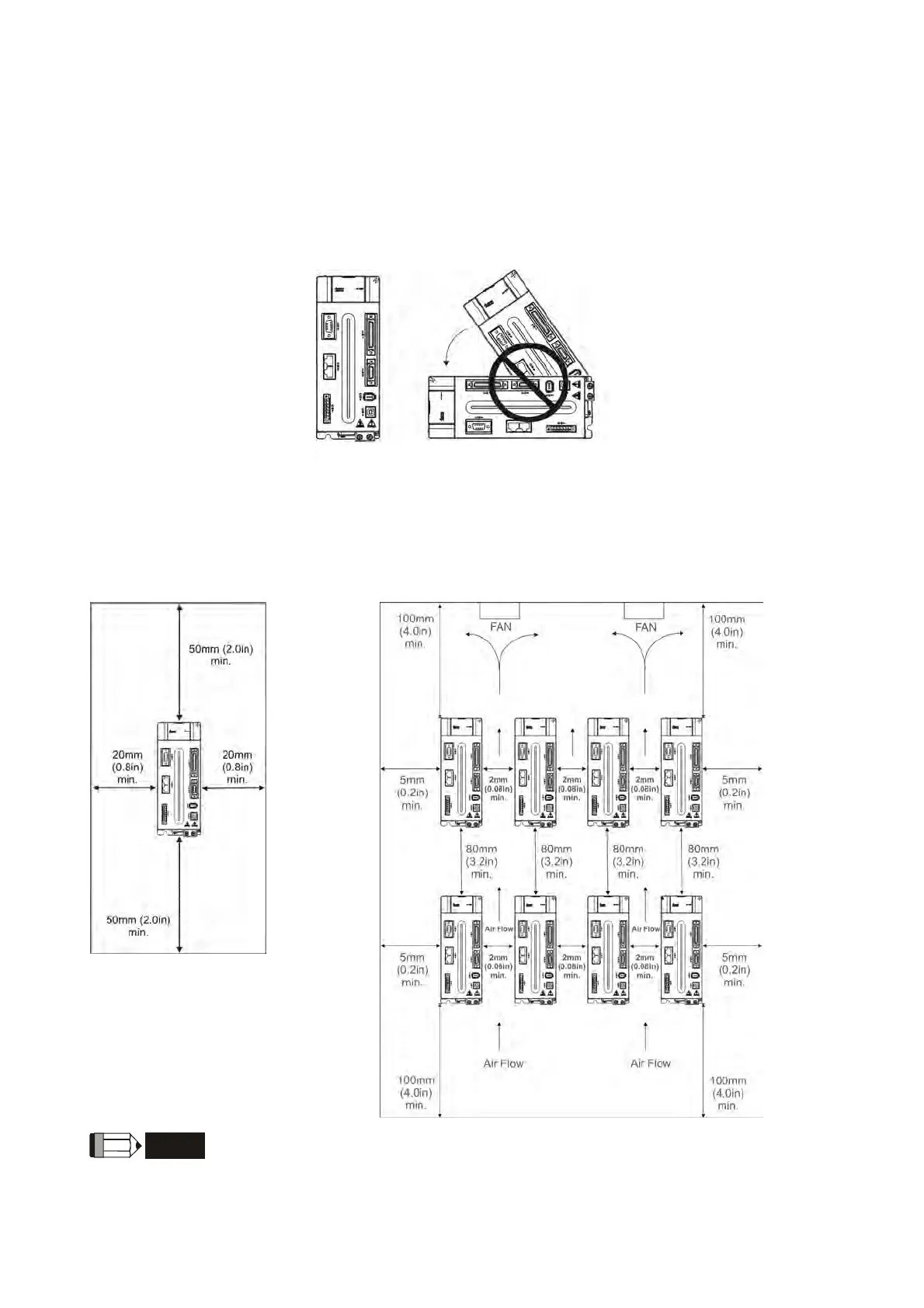

Scheme of installation:
In order to have smaller wind resistance of the fan and increase the ventilation, please
follow the suggested clearance value when installing one or more than one servo drives.
(Refer to the following diagrams)
NOTE
The above diagrams are not in equal proportion. Please refer to the
annotation.
Correct Incorrect
