Chapter 3 Wiring ASDA-A2R Series
3-50 Revision December. 2014
3.8 CN6 Connector (CANopen)
Based on the standard of CANopen DS301 and DS402, CN6 uses the standard CAN
interface to implement position, torque and speed mode. It also can read or monitor the
drive status.
The station number of CANopen is the same as RS-232/RS-485. All are set via parameter
P3-00 and the transmission rate can up to 1 Mbps. It provides two sets of communication
connectors, one is for receiving and another one is for transmission, in order to connect
more than one drives. The last servo drive connects to termination resistor.

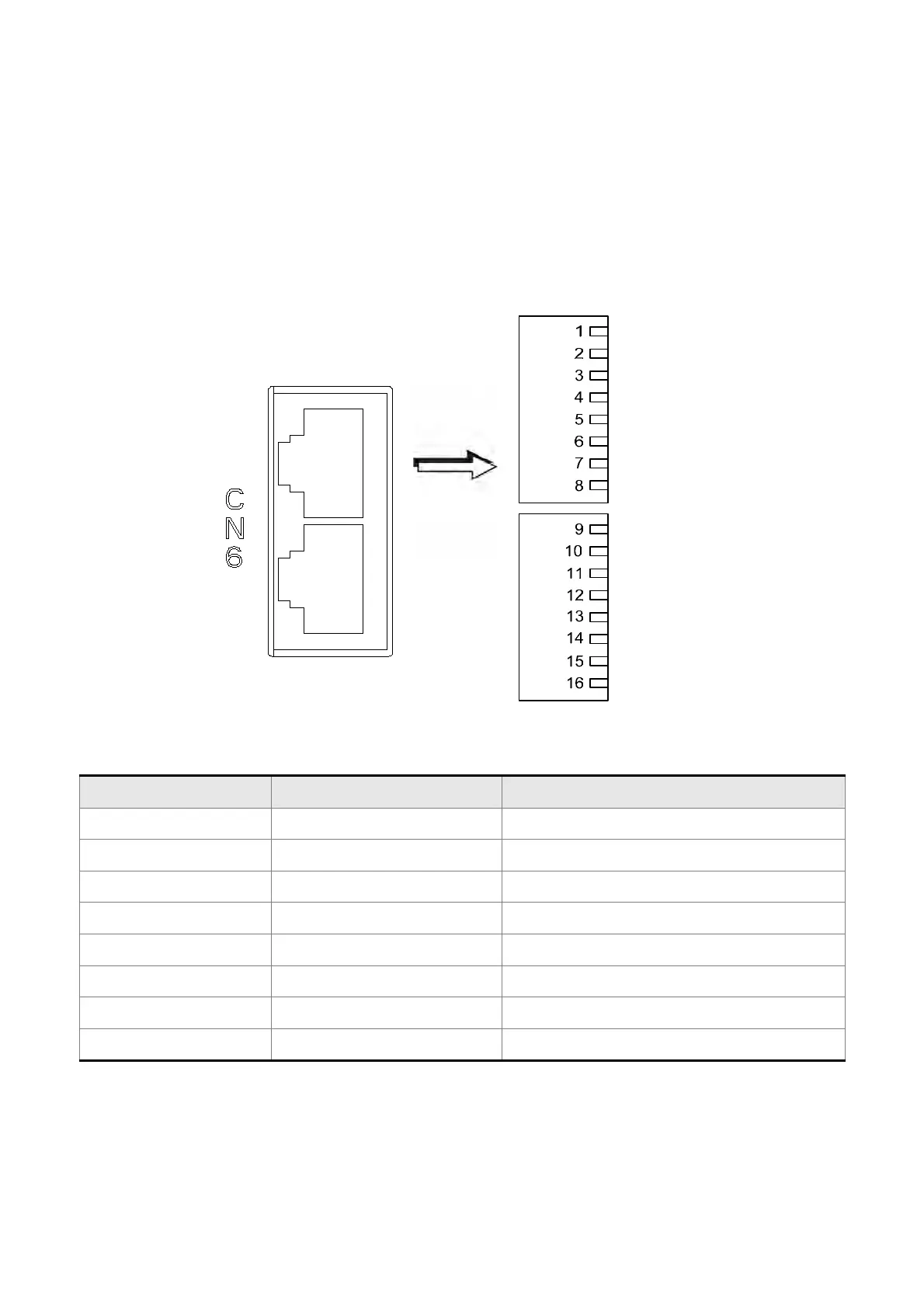

CN6 Connector (female)
Pin No Signal Name Function and Description
1, 9 CAN_H CAN_H bus line (dominant high)
2, 10 CAN_L CAN_H bus line (dominant low)
3, 11 CAN_GND Ground / 0 V / V -
4, 12 - -
5, 13 - -
6, 14 - -
7, 15 CAN_GND Ground / 0 V / V -
8, 16 - -
