Chapter 3 Wiring ASDA-A2R Series
3-40 Revision December. 2014
3.3.5 Application: Wiring of CN1 Quick Connector
ASD-IF-SC5020 CN1 quick connector is designed for easy wiring. It is applicable to
ASDA-A2 and ASDA-A2R series servo drive and can satisfy the demand of different DI/O
application. It will be a good choice for those who do not want to self-weld the wiring rods.
The vibration will not loose the leading wire due to the design of spring terminal blocks. It
is rather convenient and fast when wiring and under construction. 5 digital inputs, 4 digital
outputs, pulse command inputs and Z phase open-collector outputs are included.

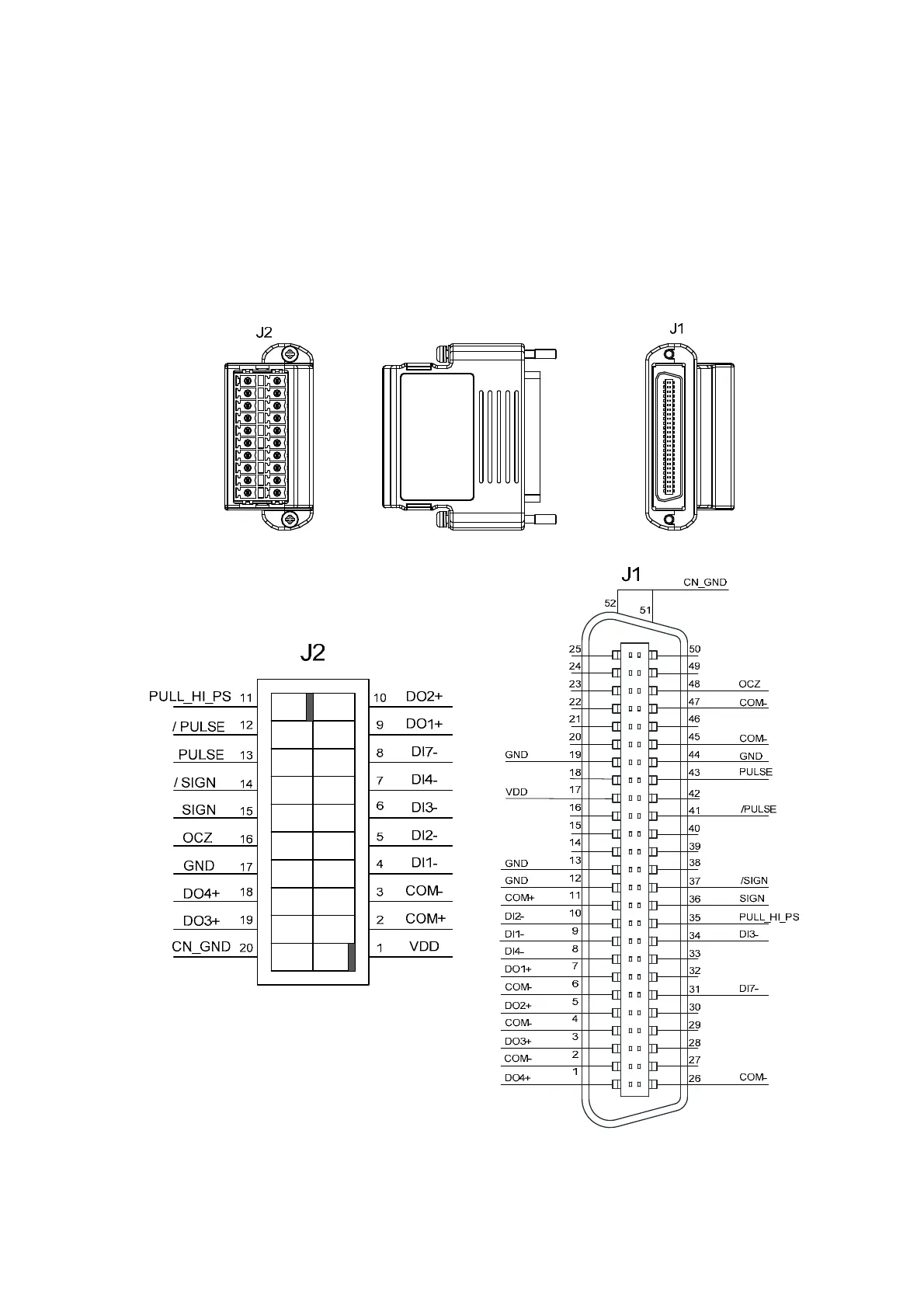

Pin definition is as the following:
