Chapter 3 Wiring ASDA-A2R Series
3-62 Revision December. 2014

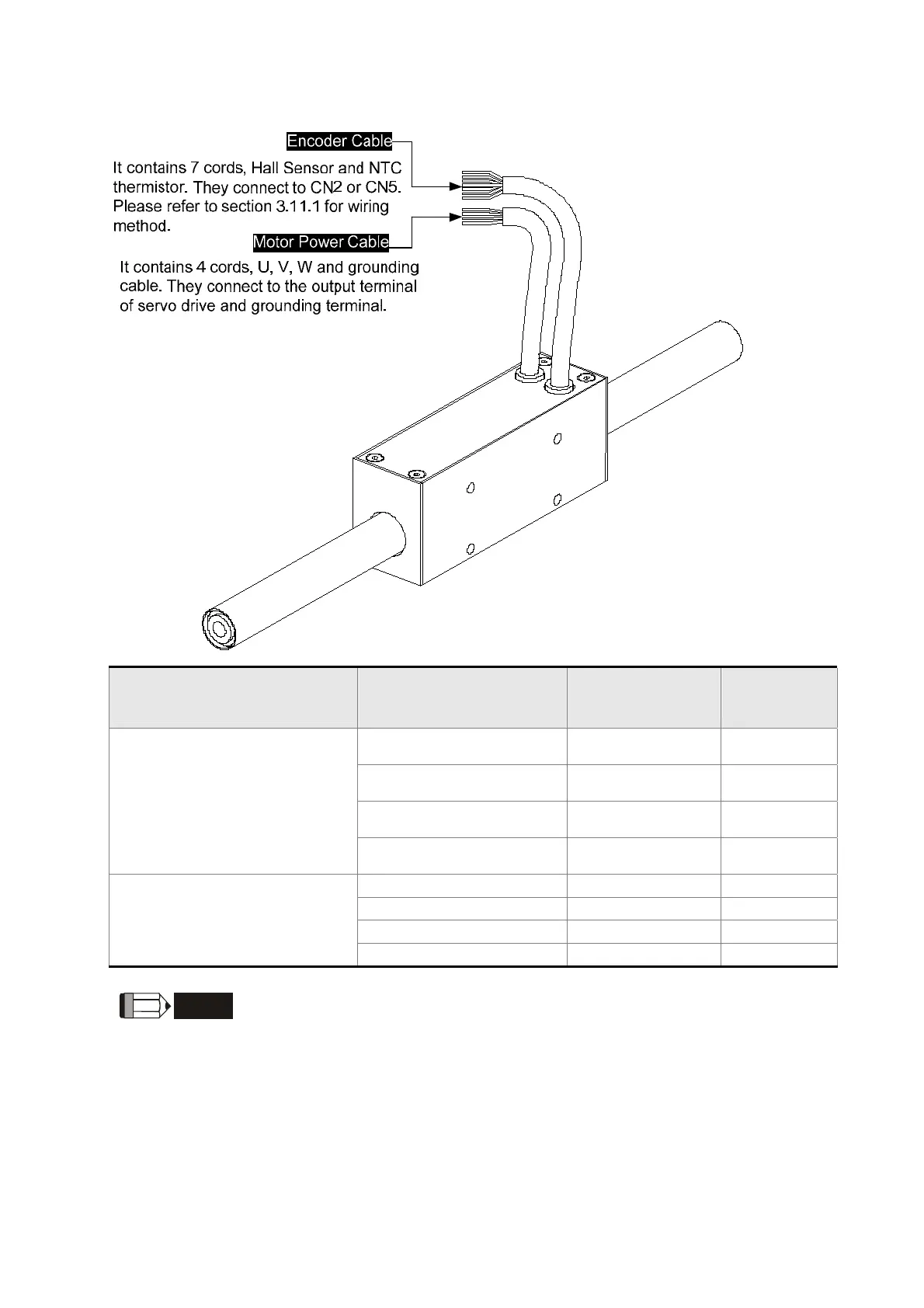

3.11.2 Specification and Definition of ECML Motor Cable
Motor Model
U、V、W / Definition
Color AWG
ECML-S16S
ECML-S20S
U Red 20
V White 20
W Black 20
CASE GROUND Green 20
ECML-S25S
ECML-S32S
U Red 18
V White 18
W Black 18
CASE GROUND Green 18
NOTE
1） U, V, W are the bare wire, which has no connector and terminal.
2） The total length of standard cable is 500mm.
3） The cover of the green grounding cable is heat-shrink tubing. If
users cut off the grounding cable and re-connect it, please
connect it to the shielded net for better noise separation.
To Next Page
