Delta ASD-A2R-1B43 Series User Manual

Chapter 3 Wiring ASDA-A2R Series
Revision December, 2014
3-31

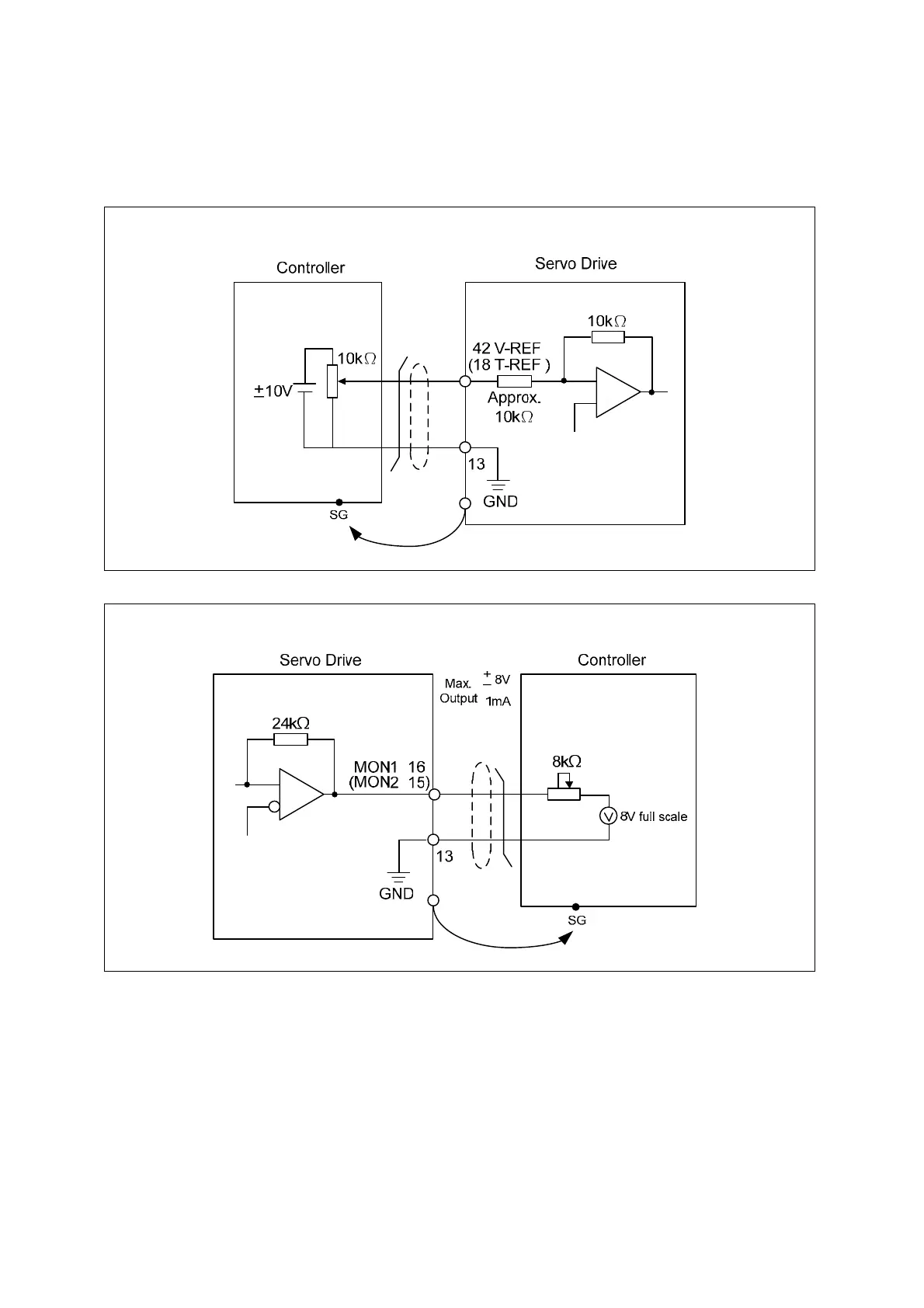

3.3.3 Wiring Diagram (CN1)
The valid voltage of speed analog command and torque analog command is between
-10V and +10V. The command value can be set via relevant parameters. The input
impedance is 10K.
C1: Speed, Input of Torque Analog Command
C2: Analog Monitor Output MON1 ,MON2
