2.4.1.6 DMC_SP_CamLinkCurve
 Supported Devices: AX-308E, AX-8
Servo Press industry-specific FB, generates cam key point information according to the extended curve algorithm and
generates an electronic cam table through DMC_SP_CamCurveWrite FB. Users can use the generated electronic cam table for
Servo Press processing.

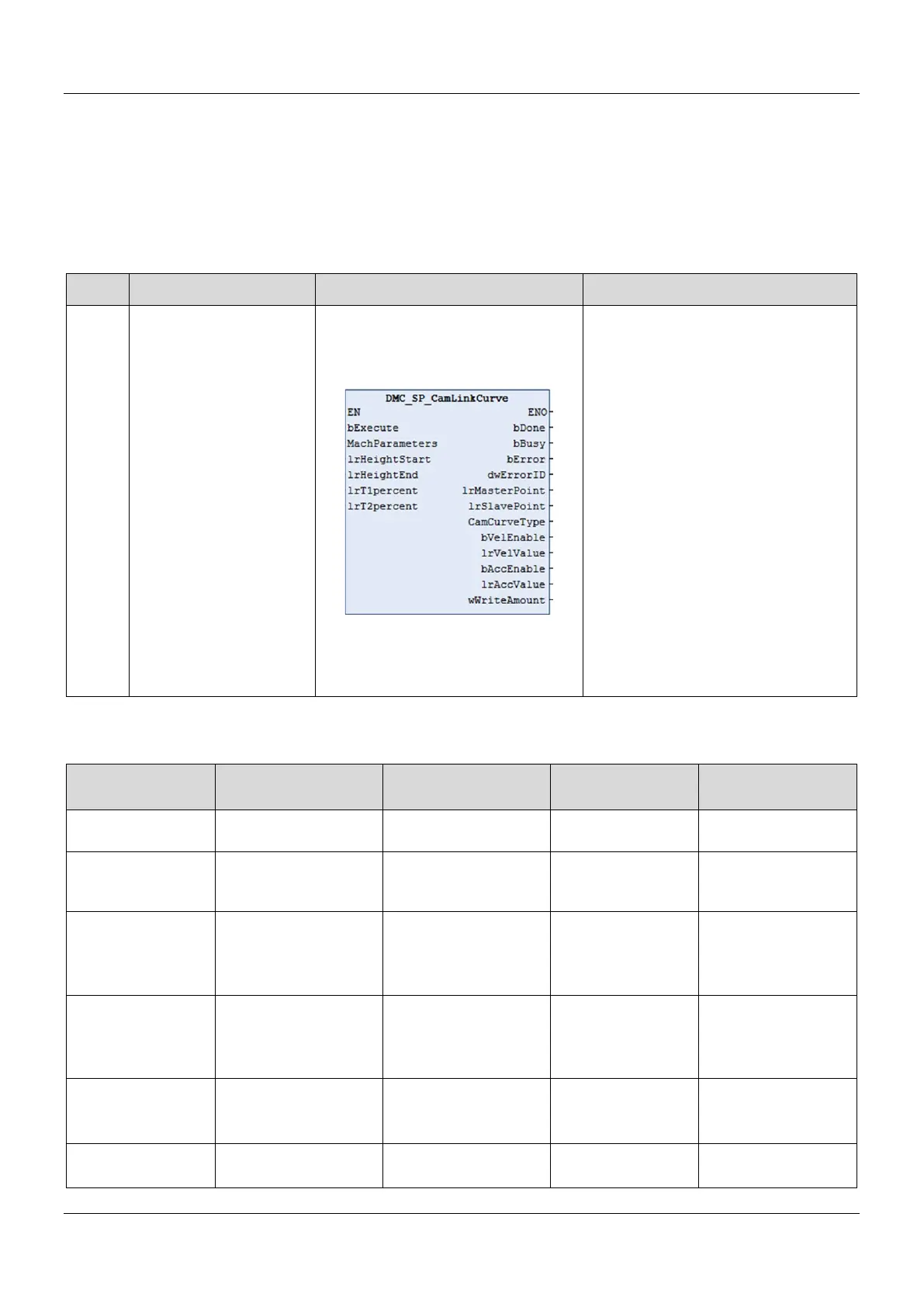

FB/FC Instruction Graphic Expression ST Express
FB DMC_SP_CamLinkCurve
DMC_SP_CamLinkCurve
bExecute: = _parameter,
MachParameters: = _parameter,
lrHeightStart: = _parameter,
lrHeightEnd: = _parameter,
lrT1percent: = _parameter,
lrT2percent: = _parameter,
bDone=> _parameter,
bBusy=> _parameter,
bError=> _parameter,
dwErrorID=> _parameter,
lrMasterPoint=> _parameter,
lrSlavePoint=> _parameter,
CamCurveType=> _parameter,
bVelEnable=> _parameter,
lrVelValue=> _parameter,
bAccEnable=> _parameter,
lrAccValue=> _parameter,
wWriteAmount=> _parameter);
 Inputs
Name Function Data Type
Setting Range
(Default)
Timing to Take Effect
bExecute
Run the function block
control bit
BOOL False/True (False) -
MachParameters
ServoPress machine
electromechanical
parameters
ReferenceDMC_SP_MA
CHINE_PARAMETERS
*
2
-
bBusy=FALSE &
bExecute is at rising-
edge
lrHeightStart
Process start position -
the height of slider
LREAL
*1
Positive (0)
[Range] 0 <
lrHeightStart < (2 *
lrRLength)
bBusy=FALSE &
bExecute is at rising-
edge
lrHeigthEnd
Process end position –
the height of slider
LREAL
*1
Positive (0)
[Range] 0 <
lrHeightStart < (2 *
lrRLength)
bBusy=FALSE &
bExecute is at rising-
edge
lrT1percent T1 percentage of time LREAL
*1
Positive (0)
[Range] 0 <
lrT1percent < 100
bBusy=FALSE &
bExecute is at rising-
edge
lrT2percent T2 percentage of time LREAL
*1
Positive (0)
[Range] 0 <
bBusy=FALSE &
bExecute is at rising-
