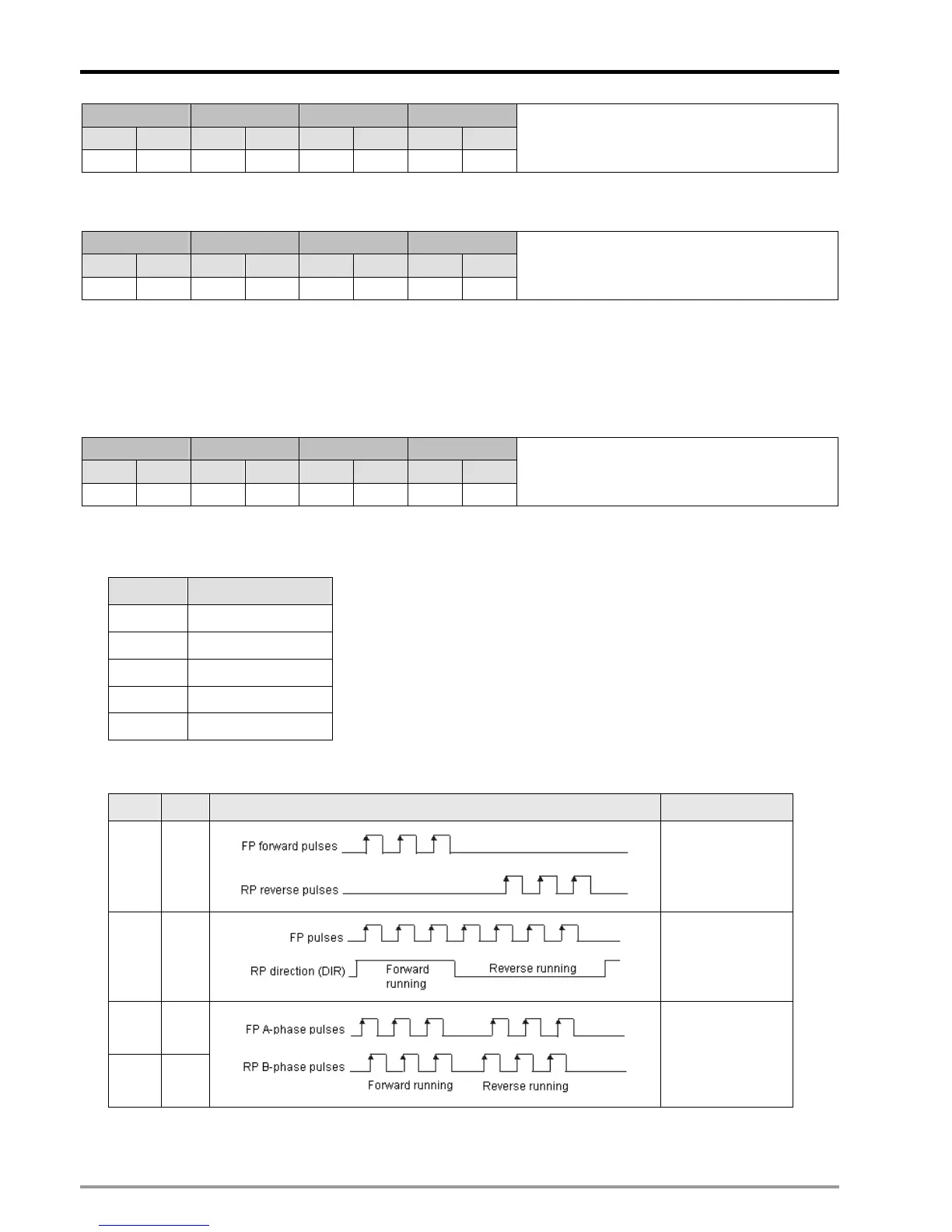

3 Functions of Devices in DVP-PM
DVP-PM Application Manual
3-76
X axis Y axis Z axis A axis
HW LW HW LW HW LW HW LW
D1861 D1860 D1941 D1940 D2021 D2020 D2101 D2100
MPG Input Frequency
The frequency of MPG input is not affected by the electronic gear ratio.
X axis Y axis Z axis A axis
HW LW HW LW HW LW HW LW
D1863 D1862 D1943 D1942 D2023 D2022 D2103 D2102
Number of accumulated MPG Input Pulses
1. Number of MPG input pulses is accumulated and stored by corresponding registers. The accumulated value is
plused by 1 when a forward pulse comes in, and minused by 1 when reverse pulse comes in.
2. The accumulated value is not affected by the electronic gear ratio (D1858 (D1938, D1918), D1859 (D1939,
D2019)).
X axis Y axis Z axis A axis
HW LW HW LW HW LW HW HW
D1864 D1944 D2024 D2104
Response Time of MPG Input
1. The faster the response time, the more synchronous between pulse output and MPG input.
2. The slower the response time, the more possible the pulse output lags behind MPG input.
Set value ResponseTime
≧5
4ms (default)
4 32ms
3 108ms
2 256ms
1 or 0 500ms
3. b8 and b9 of D1864 (D1944, D2024): setting MPG input pulse pattern
b8 b9 Input pulse patterns (positive logic) Description
0 0
2-phase pulse
0 1
1-phase pulse +
direction
1 0
1 1
A/B phase
