USING THE WEB INTERFACE
EATON Managed ePDUt User’s Guide S 164201xxx Rev 1 DRAFT 10−OCT−2008
74
Managing the ePDU
You can display basic device information about the ePDU, give the ePDU a new
device name, and modify any of the network settings that were entered during the
initial configuration process. You can also set the ePDU’s date and time and configure
its SMTP settings so it can send email messages when alerts are issued.
Displaying Basic Device Information
1. To display basic information about an ePDU, select Maintenance and then select
Device Information. The Device Information page displays (see Figure 72).
This page displays the product name, serial number, IP and MAC addresses of
the ePDU, and detailed information about the firmware running in the ePDU.

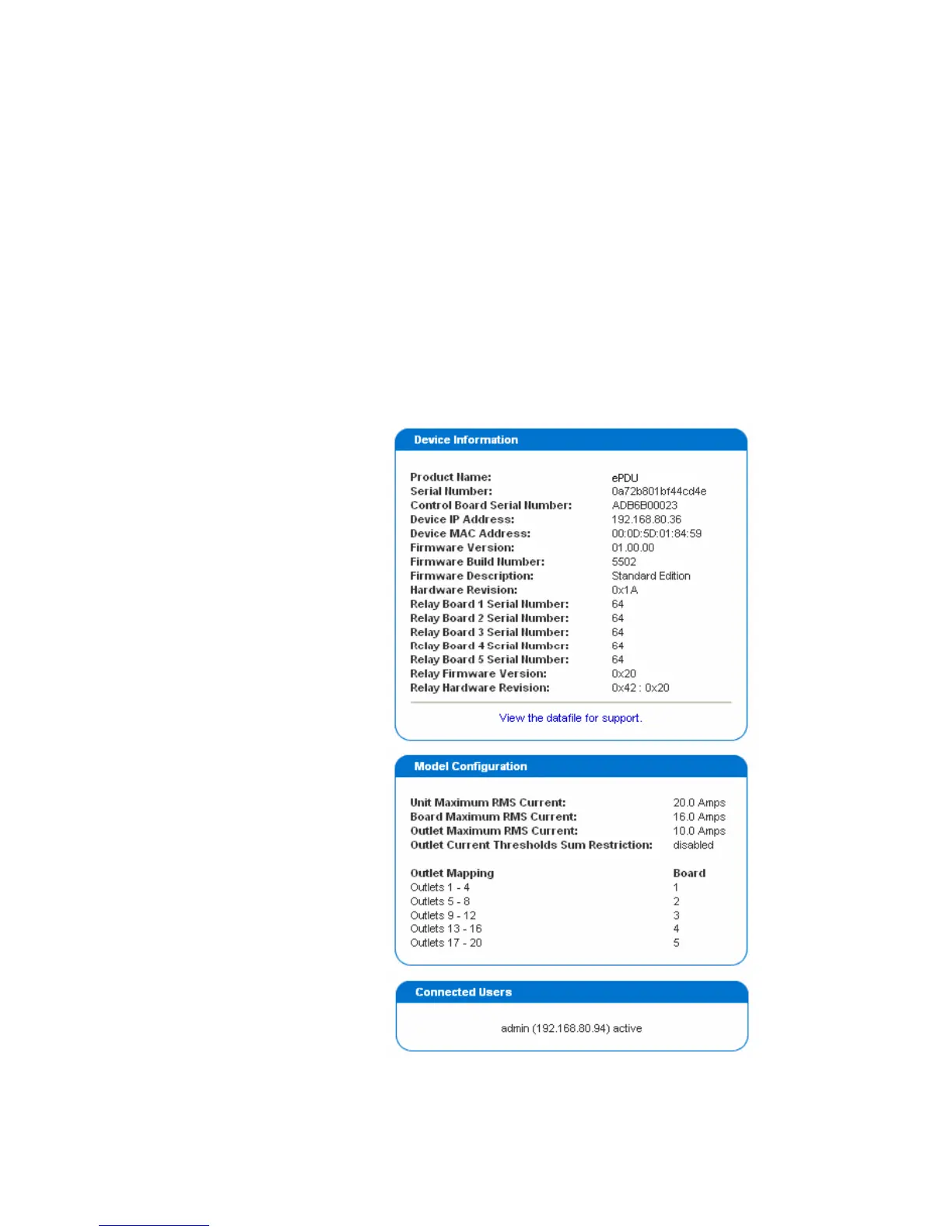

Figure 72. Device Information Page
2. To open or save an XML file providing details for Eaton Technical Support, click
the View the datafile for support link.
