USING THE WEB INTERFACE
EATON Managed ePDUt User’s Guide S 164201xxx Rev 1 DRAFT 10−OCT−2008
78
Modifying the LAN Interface Settings
The LAN interface speed and duplex mode were set during the installation and
configuration process (see Chapter 4, Installation and Configuration" for details). To
modify either setting:
1. Select Device Settings, and then select Network. The Network Settings page
displays. The LAN Interface Settings panel on the bottom right shows the interface
speed and duplex mode. See Figure 75.

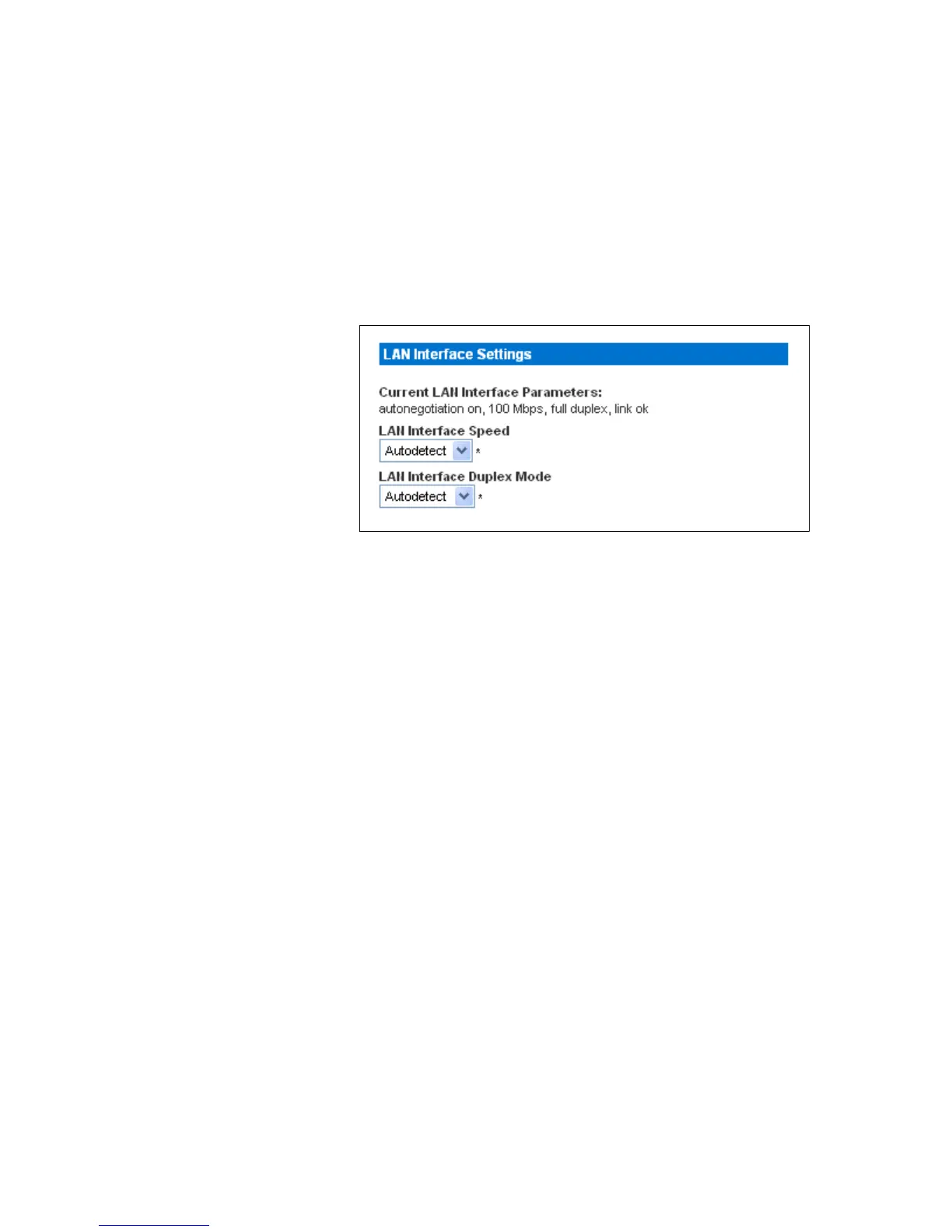

Figure 75. LAN Interface Settings Panel
2. To change the interface speed, select the speed you want from the LAN Interface
Speed list. Your choices are:
S Autodetect (system selects optimum speed)
S 10 Mbps
S 100 Mbps
3. To change the duplex mode, select the mode you want from the LAN Interface
Duplex Mode list. Your choices are:
S Autodetect (system selects optimum mode)
S Half duplex
S Full duplex
Half duplex allows data to be transmitted to and from the ePDU, but not at the
same time. Full duplex allows data to be transmitted in both directions at the
same time.
4. Click Apply. The settings are modified.
