Configuring the SNMP Settings
The SNMP Settings page allows you to enable and disable SNMP communication
between an SNMP manager and the ePDU. Enabling SNMP communication allows
the ePDU to send SNMP trap events to the manager, and allow the manager to
retrieve and control the power status of each outlet.
To configure SNMP communication (necessary for passing SNMP traps and individual
outlet control):
1. Select Device Settings, and then select SNMP Settings. The SNMP Settings page
displays.

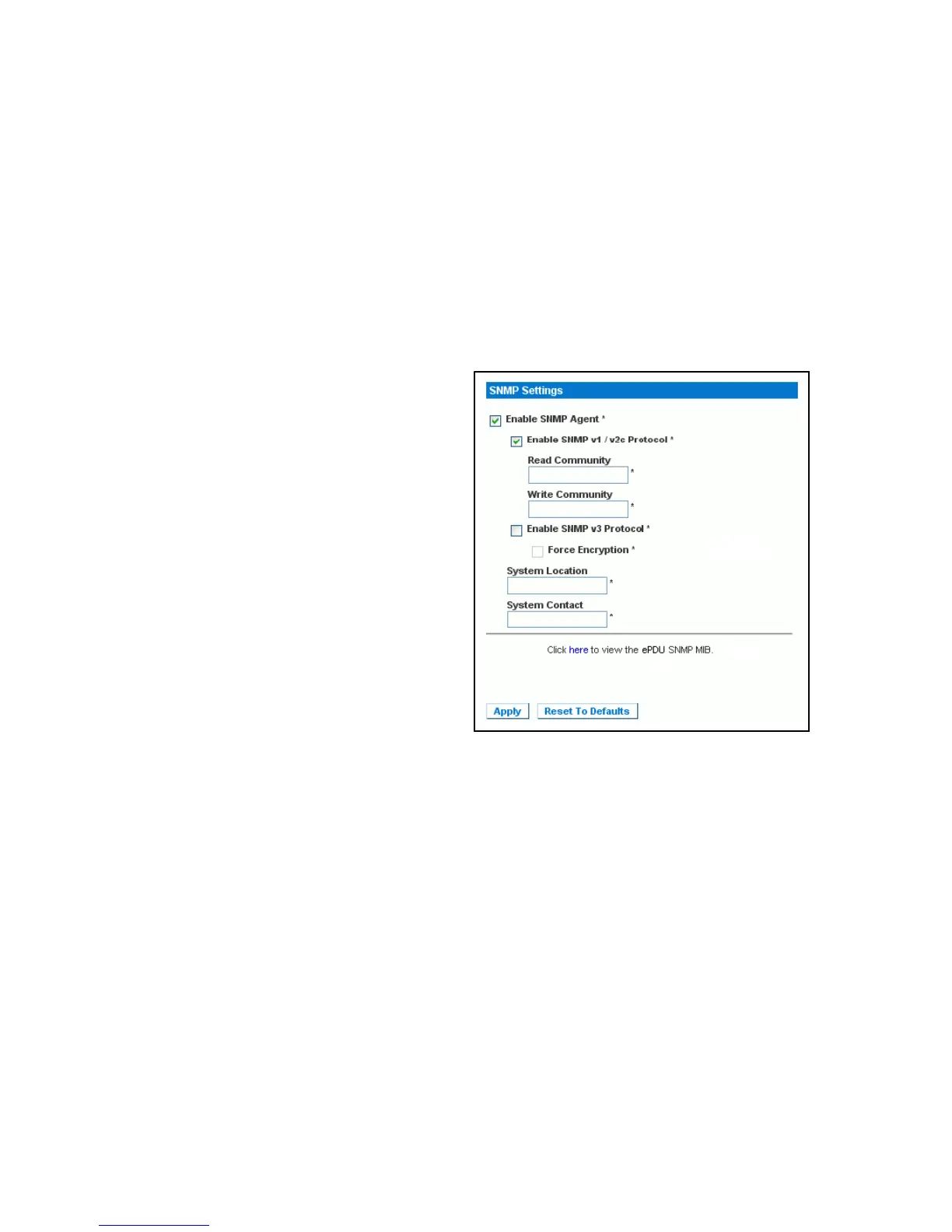

Figure 78. SNMP Settings Page
2. Select the Enable SNMP Agent check box to enable the ePDU to communicate
with external SNMP managers. A number of options will then become available.
3. Select the Enable SNMP v1 / v2c Protocol check box to enable communication with
an SNMP manager using SNMP v2c protocol.
4. Type the SNMP read−only community string in the Read Community field
5. Type the read/write community string in the Write Community field.
6. Select the Enable SNMP v3 Protocol check box to enable communication with an
SNMP manager using SNMP v3 protocol.
7. Type the system location in the System Location field.
8. Type the system contact in the System Contact field.
9. Click the link at the bottom of the page to download an SNMP MIB for your
ePDU to use with your SNMP manager.
10. Click Apply. The SNMP configuration is set.
