USING THE WEB INTERFACE
EATON Managed ePDUt User’s Guide S 164201xxx Rev 1 DRAFT 10−OCT−2008
75
Displaying Model Configuration
To display information about the specific model of the ePDU that you are using, select
Maintenance and then select Device Information. The device information page displays.
Information about your model is shown in the Model Configuration panel below the
Device Information panel. See Figure 72 for details.
This panel shows:
S The ePDU’s and board’s maximum current capabilities
S The outlet maximum RMS current and the current threshold sum restriction
S The number of outlets mapped to the board
Displaying Connected Users
To display a list of users currently connected to the ePDU, select Maintenance and
then select Device Information. The Device Information page displays. A list of
connected users is shown in the Connected Users panel. See Figure 72 for details.
The panel shows the Username and IP address of each user, and indicates whether
or not the connection is active.
Naming the ePDU
By default, the ePDU has a device name of pdu." You may want to give the ePDU a
more easily recognizable name to help identify it. To do this:
1. Select Device Settings, and then select Network. The Network Settings page
displays. The left side of the page consists of the Basic Network Settings panel,
which contains the device name. See Figure 73.

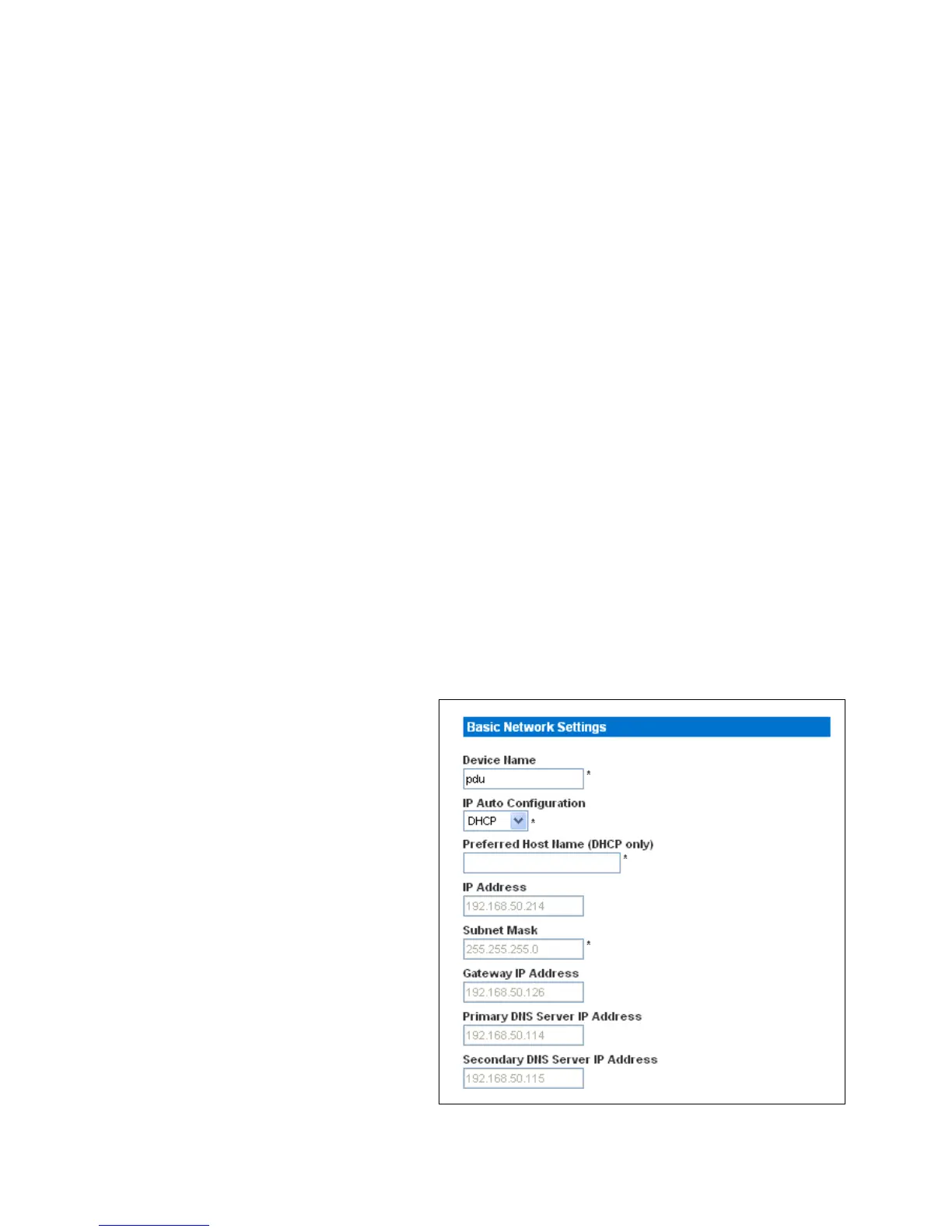

Figure 73. Basic Network Settings Panel
