FloBoss 107 Instruction Manual
Revised June-2017 General Information 1-5

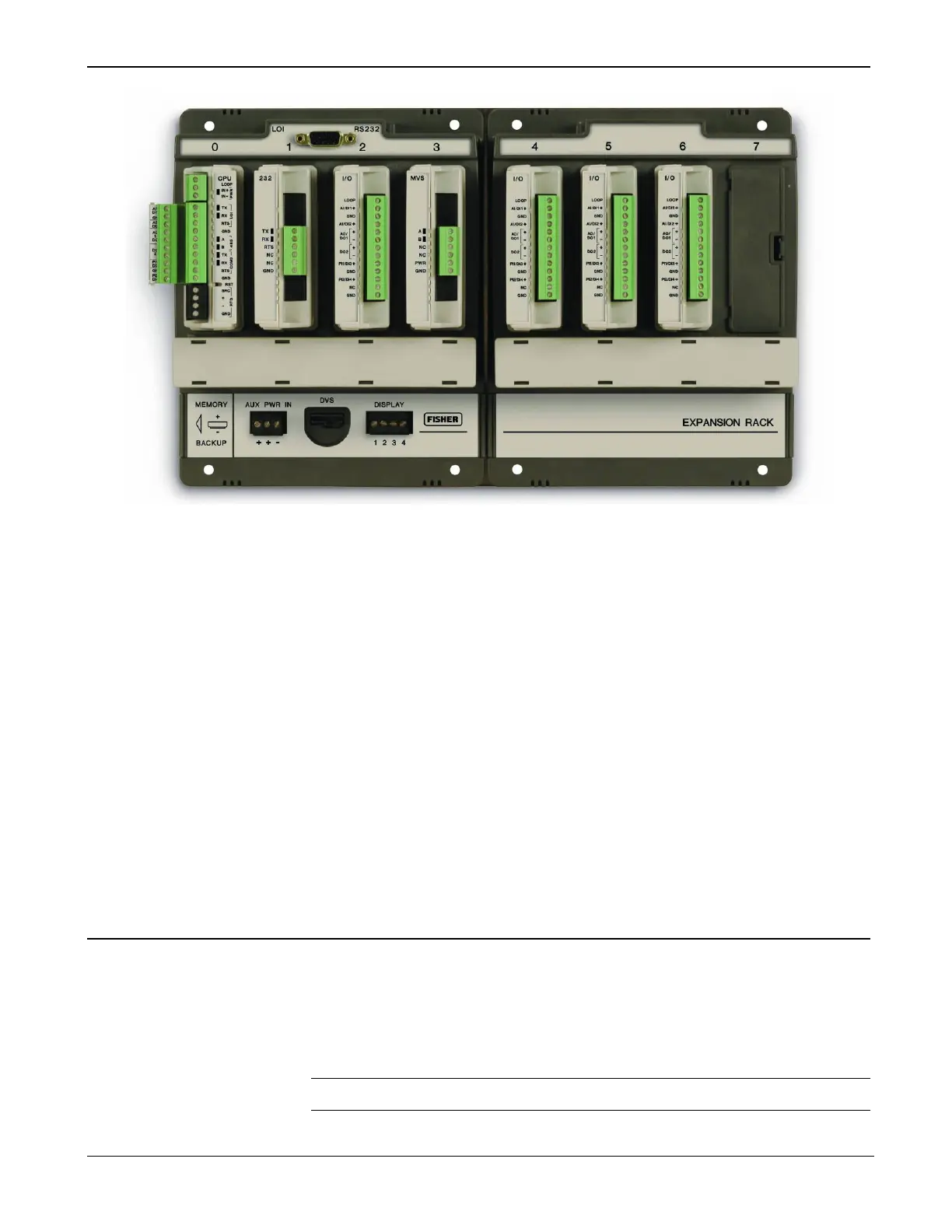

Figure 1-3. FloBoss 107 with Expansion Rack
The FB107 provides the following components and features:
 32-bit processor board, inter-connect board, and backplane board.
 Central processing unit (CPU).
 Field-upgradeable 2 MB flash ROM (read only memory).
 2 MB battery backed-up RAM (random access memory) storage.
 Two-, three-, or four-wire 100-ohm resistance thermal device (RTD)
input.
 Battery and super-capacitor backed memory retention to provide short
and longer-term data, configuration, and operational integrity when
the FB107 is not in service or is in storage.
 Three built-in communication ports.
 Input power and output loop power.
 Extensive applications firmware.
1.3 Hardware
The FB107 is available with four basic configurations:
 Non-isolated CPU without I/O.
 Non-isolated CPU with six points of I/O.
 Isolated CPU without I/O.
 Isolated CPU with six points of I/O.
Note: Isolation occurs between the CPU and the field logic.
W
6
8
7
4
