FloBoss 107 Instruction Manual
Revised June-2017 Inputs and Outputs 4-3
Note: There are slight differences in the termination positions.
A
Loop Output Power
B
AI1+/DI1+
C
GND (Common)
D
AI2+/DI2+
E
AO+/DO1+
F
AO/DO1
G
DO2+
H
DO2
I
PI1+/DI3+
J
GND (Common)
K
PI2+/DI4+
L
NC (No Connection)
M
GND (Common)

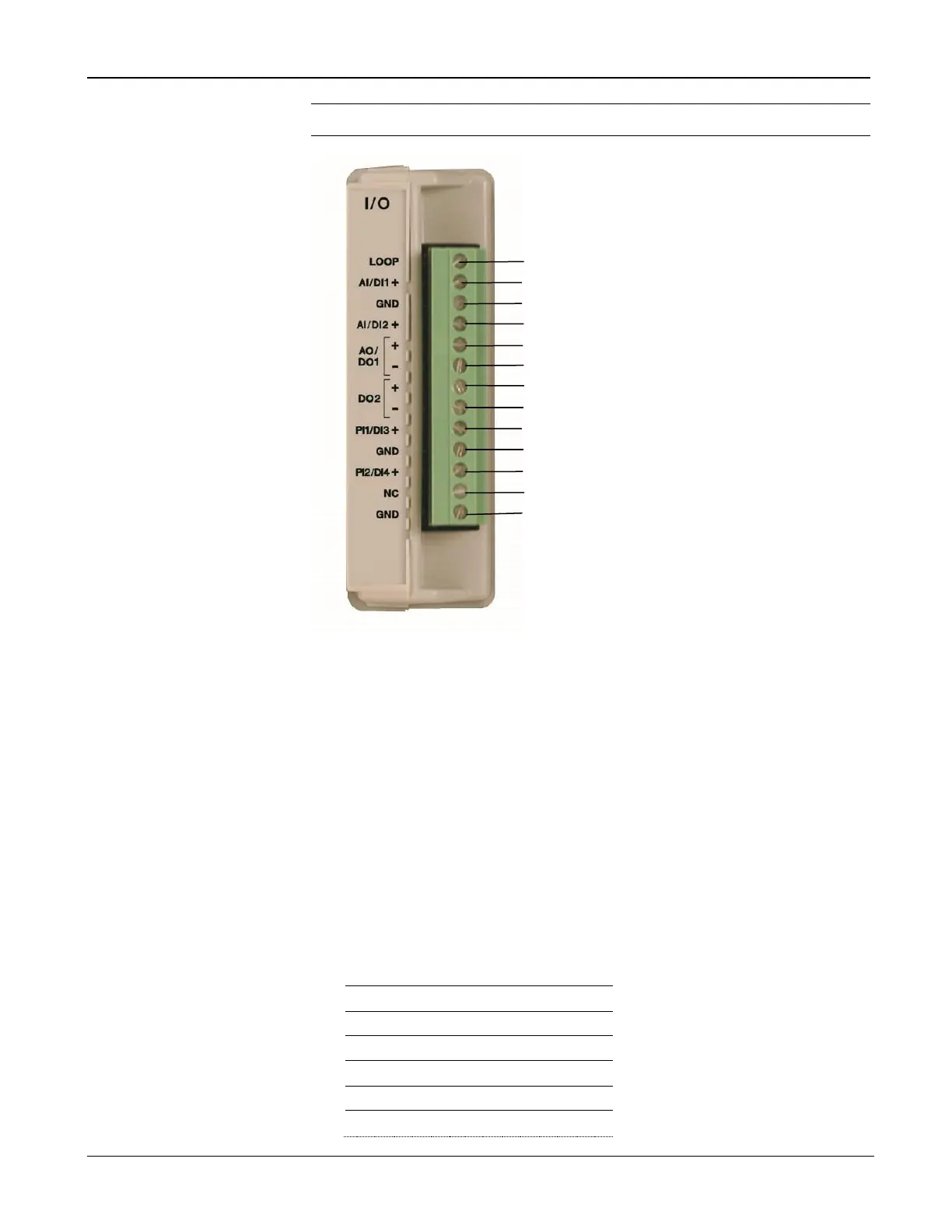

Figure 4-1. I/O Module
Table 4-1. I/O Terminations on the I/O Modules
Termination
Number
I/O Type
13
Loop Output Power
12
AI1+/DI1+
11
GND (Common)
10
AI2+/DI2+
9
AO+/DO1+
8
AO-/DO1
A
B
C
D
E
F
G
H
I
J
K
L
M
